Baja Designs Lightbar Tech Specs
Multicolumn
-

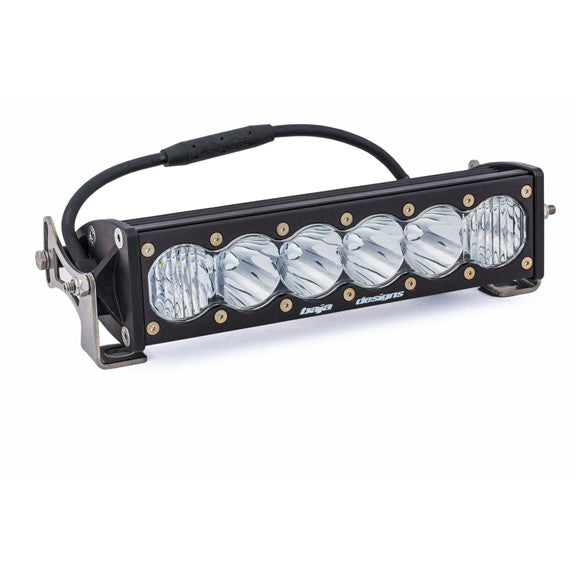

OnX6+:
10in:
- Amp - 7.7
- Lumens - 10,817 (High); 9,230 (Low)
- Wattage - 106.26
- Weight - 4.25 lbs.
20in:
- Amp - 16.6 (High); 12.0 (Low)
- Lumens - 24,920 (High); 18,460 (Low)
- Wattage - 216 (High); 160 (Low)
- Weight - 7.85 lbs.
30in:
- Amp - 21.7 (High); 17.1 (Low)
- Lumens - 31,910 (High); 25,450 (Low)
- Wattage - 281 (High); 225 (Low)
- Weight - 11.45 lbs.
40in:
- Amp - 26.8 (High); 22.4 (Low)
- Lumens - 38,900 (High); 32,440 (Low)
- Wattage - 346 (High); 290 (Low)
- Weight - 15.05 lbs.
50in:
- Amp - 28.2 (High)
- Lumens - 39,430 (High)
- Wattage - 355 (High)
- Weight - 18.65 lbs.
***OnX6 Data Sheet***
-

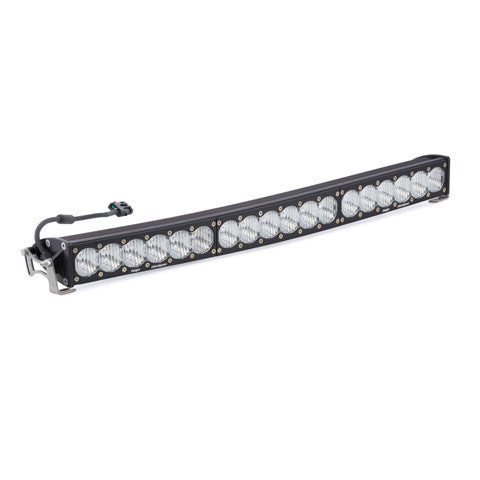

OnX6 ARC:
30in:
- Amp - 21.7 (High); 17.1 (Low)
- Lumens - 32,070 (High); 25,610 (Low)
- Wattage - 278 (High); 222 (Low)
- Weight - 11.45
40in:
- Amp - 26.8 (High); 22.4 (Low)
- Lumens - 39,220 (High); 32,760 (Low)
- Wattage - 340 (High); 284 (Low)
- Weight - 15.05 lbs.
50in:
- Amp - 28.2 (High)
- Lumens - 39,910 (High)
- Wattage - 346 (High)
- Weight - 18.65 lbs.
-

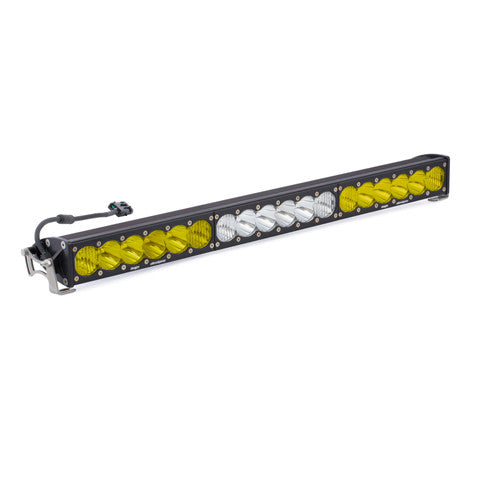

OnX6 Dual:
30in:
- Amp - 21.7 (High); 17.1 (Low)
- Lumens - 28,938 (High); 23,150 (Low)
- Wattage - 278 (High); 222 (Low)
- Weight - 11.45
40in:
- Amp - 26.8 (High); 22.4 (Low)
- Lumens - 39,220 (High); 32,760 (Low)
- Wattage - 340 (High); 284 (Low)
- Weight - 15.05 lbs.
50in:
- Amp - 28.2 (High)
- Lumens - 39,910 (High)
- Wattage - 346 (High)
- Weight - 18.65 lbs.
-
OnX6 Dual ARC:
30in:
- Amp - 21.7 (High); 17.1 (Low)
- Lumens - 28,938 (High); 23,150 (Low)
- Wattage - 278 (High); 222 (Low)
- Weight - 11.45
40in:
- Amp - 26.8 (High); 22.4 (Low)
- Lumens - 39,220 (High); 32,760 (Low)
- Wattage - 340 (High); 284 (Low)
- Weight - 15.05 lbs.
50in:
- Amp - 28.2 (High)
- Lumens - 39,910 (High)
- Wattage - 346 (High)
- Weight - 18.65 lbs.
-

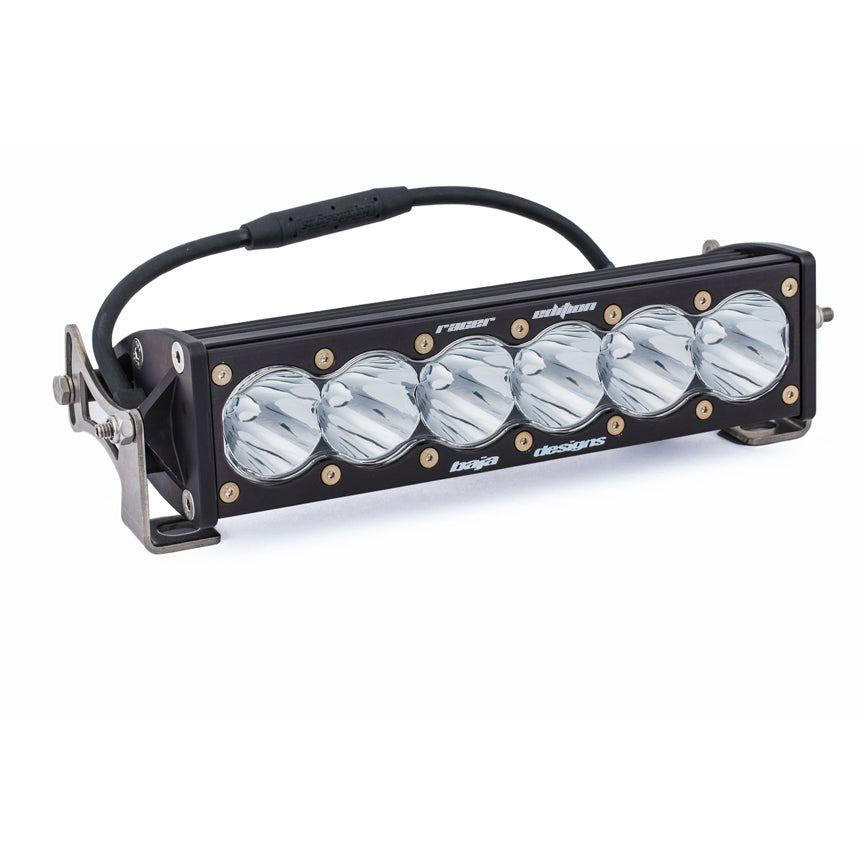

OnX6 Racer:
10in:
- Amp - 5.25
- Lumens -
- Wattage - 63
- Weight - 4.25 lbs.
20in:
- Amp - 10.5
- Lumens -
- Wattage - 126
- Weight - 7.85 lbs.
30in:
- Amp - 15.75
- Lumens -
- Wattage - 189
- Weight - 11.45 lbs.
40in:
- Amp - 21
- Lumens -
- Wattage - 252
- Weight - 15.05 lbs.
50in:
- Amp - 26.25
- Lumens -
- Wattage - 315
- Weight - 18.65 lbs.
***OnX6 Racer Data Sheet***
-

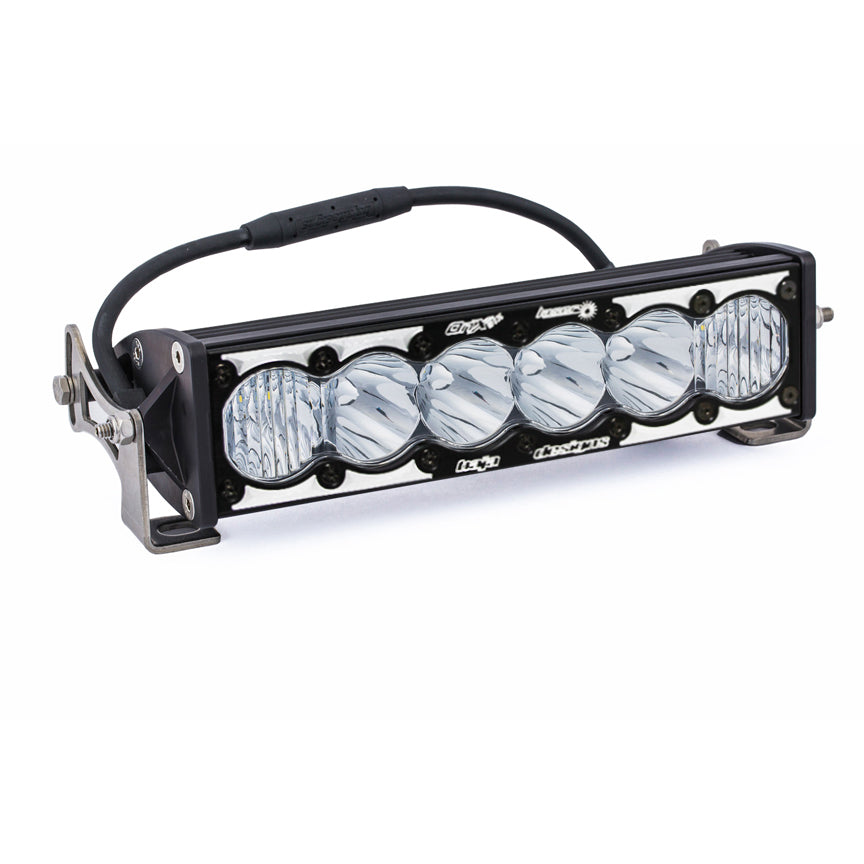

OnX6 Laser Hybrid:
10in:
- Amp - 7.2
- Lumens - 3750
- Wattage - 99.36
- Weight - 4.25 lbs.
20in:
- Amp - 14.4
- Lumens - 7500
- Wattage - 198.72
- Weight - 7.8 lbs.
30in:
- Amp - 21.6
- Lumens - 11250
- Wattage - 298.08
- Weight - 11.45 lbs.
40in:
- Amp - 28.8
- Lumens - 15000
- Wattage - 397.44
- Weight - 15.05 lbs.
50in:
- Amp - 36
- Lumens - 18750
- Wattage - 496.8
- Weight - 18.65 lbs.
***OnX6 Laser Date Sheet***
-

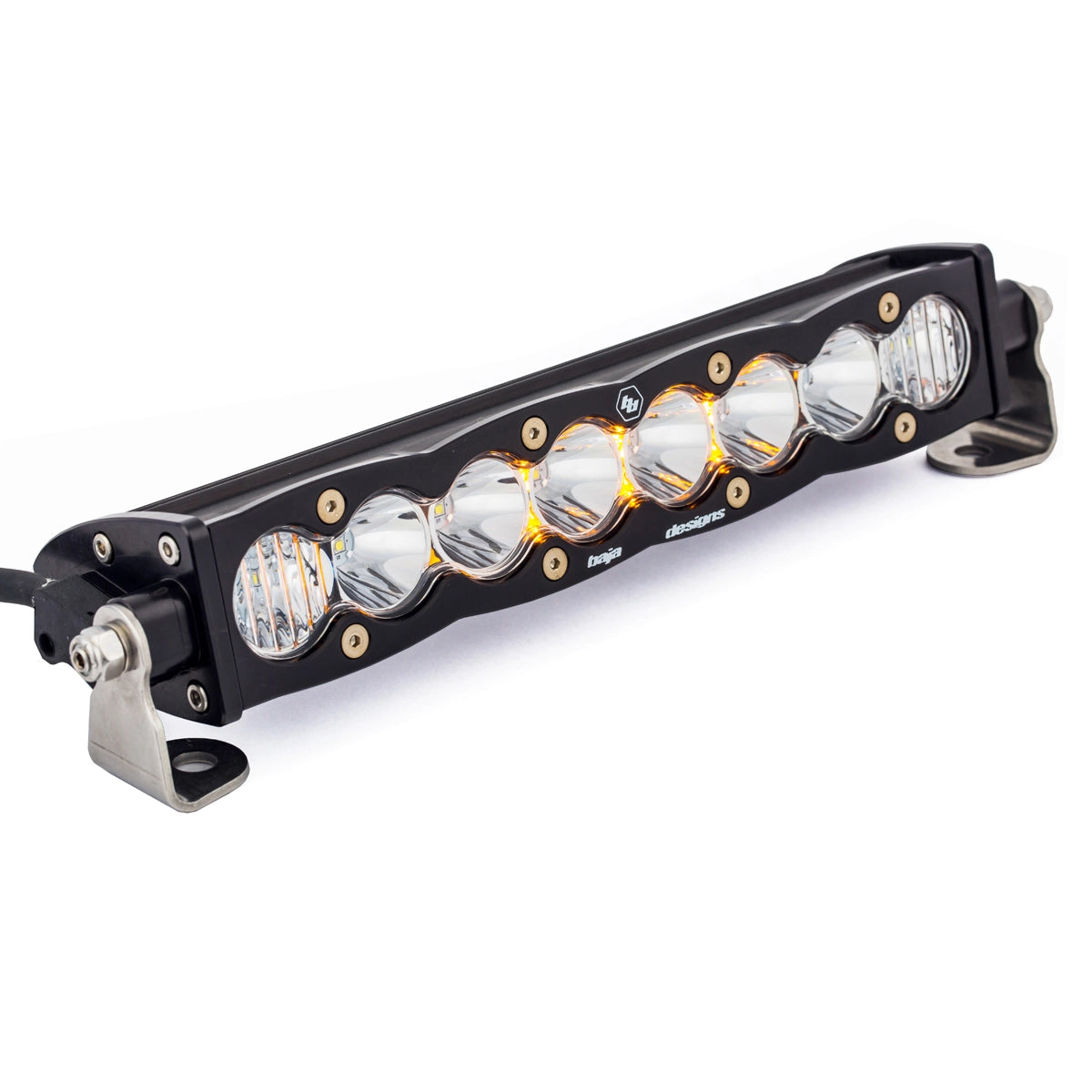

S8 Light Bar:
10in:
- Amp - 4.2
- Lumens - 6324
- Wattage - 57.96
- Weight - 2.4 lbs.
20in:
- Amp - 8
- Lumens - 12,700
- Wattage - 120
- Weight - 4.5 lbs.
30in:
- Amp - 12
- Lumens - 19050
- Wattage - 180
- Weight - 6.5 lbs.
40in:
- Amp - 16
- Lumens - 25400
- Wattage - 240
- Weight - 8.65 lbs.
50in:
- Amp - 20
- Lumens - 31750
- Wattage - 300
- Weight - 10.75 lbs.
***S8 Date Sheet***
-

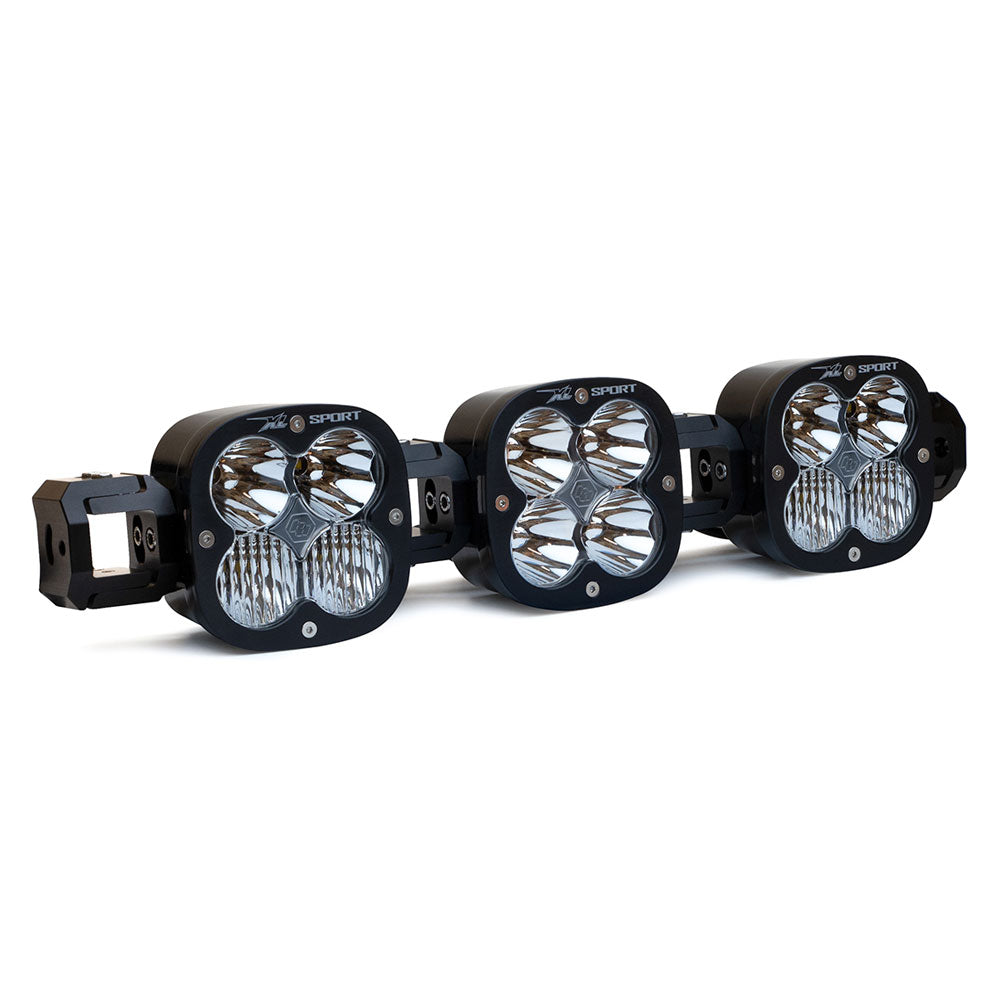

XL Sport Linkable:
3 Pods:
- Amp - 6
- Lumens - 9450
- Wattage - 78
- Weight - 7.35 lbs.
4 Pods:
- Amp - 8
- Lumens - 12600
- Wattage - 104
- Weight - 9.8 lbs.
5 Pods:
- Amp - 10
- Lumens - 15750
- Wattage - 130
- Weight - 12.25 lbs.
6 Pods:
- Amp - 12
- Lumens - 18900
- Wattage - 156
- Weight - 14.7 lbs.
7 Pods:
- Amp - 14
- Lumens - 22050
- Wattage - 182
- Weight - 17.15 lbs.
8 Pods:
- Amp - 16
- Lumens - 25200
- Wattage - 208
- Weight - 19.6 lbs.
***XL Sport Data Sheet***
-

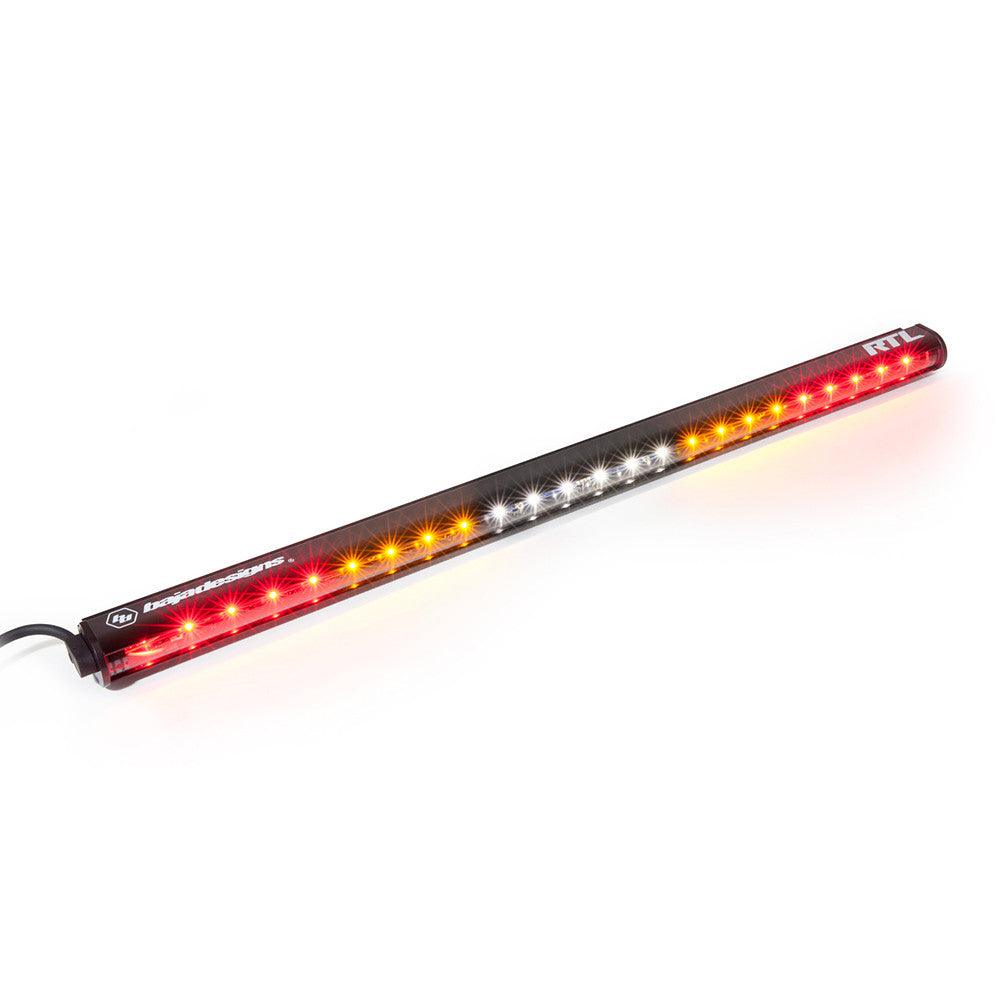

RTL Rear Light Bar:
6in:
- Taillight - 0.75W
- License Plate Light - 2W
- Brake Light - 5.5W
- Cargo Light - 8.5W, 312 Lumens
- Weight - 1.1 lbs.
30in:
- Running Light with Flashing Amber and Solid Amber - 10W
- Brake Light w/Flashing Amber and Solid Amber - 28W
- Safety Marker - 19W
- Weight - 3.75
***RTL Data Sheet***
