XL40 (D/C) LED Headlight Kit w/ Dimmer - Husqvarna FE-S/FE-W/FE/TE (’24-25)

Upgrade your off-road lighting with the Baja Designs XL40 LED Headlight Kit with Dimmer — purpose-built for Husqvarna FE-S, FE-W, and TE motorcycles. Derived from the powerhouse XL80, the XL40 delivers 5,224 lumens of trail-proven illumination to a wider range of bikes. The included dimmer lets riders dial in exactly the brightness they need, with a fully variable range from 95% down to 20% output.

Engineered for dirt bikes with lower-output OEM stators, the XL40 draws only 43.5W — making it the ideal high-performance upgrade for riders who previously lacked a compatible premium option. Paired with the signature XL Trail Lens, it delivers both vertical and horizontal beam coverage with excellent near-field and peripheral visibility. The Trail Lens redistributes center beam intensity to eliminate harsh hot spots — improving clarity through elevation changes, vertical transitions, and sharp corners. The result is a smooth, evenly distributed field of light that boosts confidence in demanding terrain.

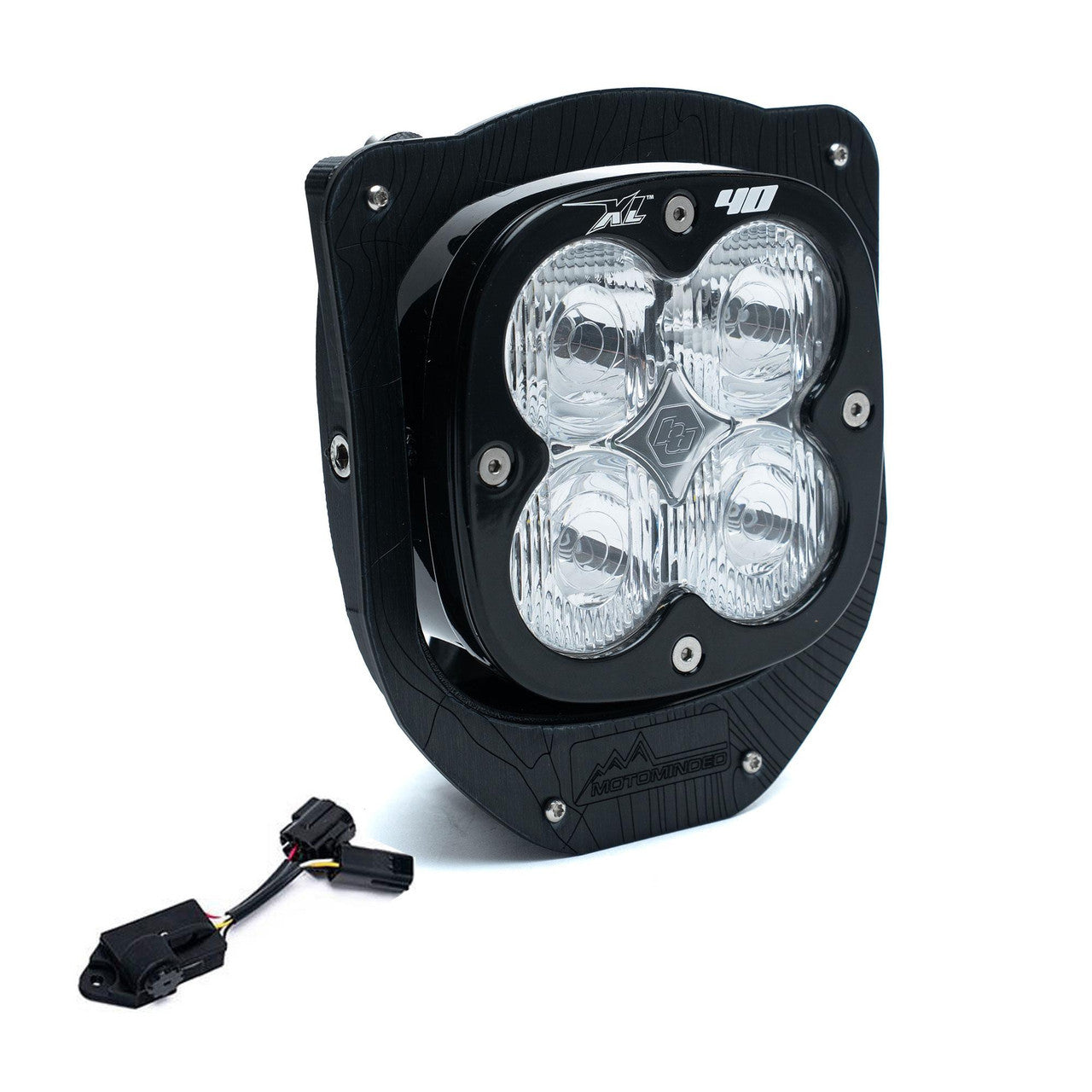

This kit replaces the OEM headlight unit and includes a dimmer switch and the Motominded mount for easy installation.

Kit Includes:

• (1x) XL40 – Trail Lens Clear w/ 2024+ OEM Connector
• (1x) Dimmer switch – dimmable ranges between 95%-20% power output
• (1x) Motominded XL Bracket
• All Necessary Mounting Hardware

XL40 Specifications (per light):

• Lumens: 5,224 (Hi)/ 1,435 (Low)
• Watts/Amps: 43.5W/3.4A @ 12.8V
• Modes: high beam, dimming feature (25% brightness)

XL40 ELS Score:

• XL40, Trail lens, high beam: 92°/5.9/226’/5224
• XL40 Trail lens, low beam: 74°/5.9/119’/1435

The Baja Designs Advantage

• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving LEDs at 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color
