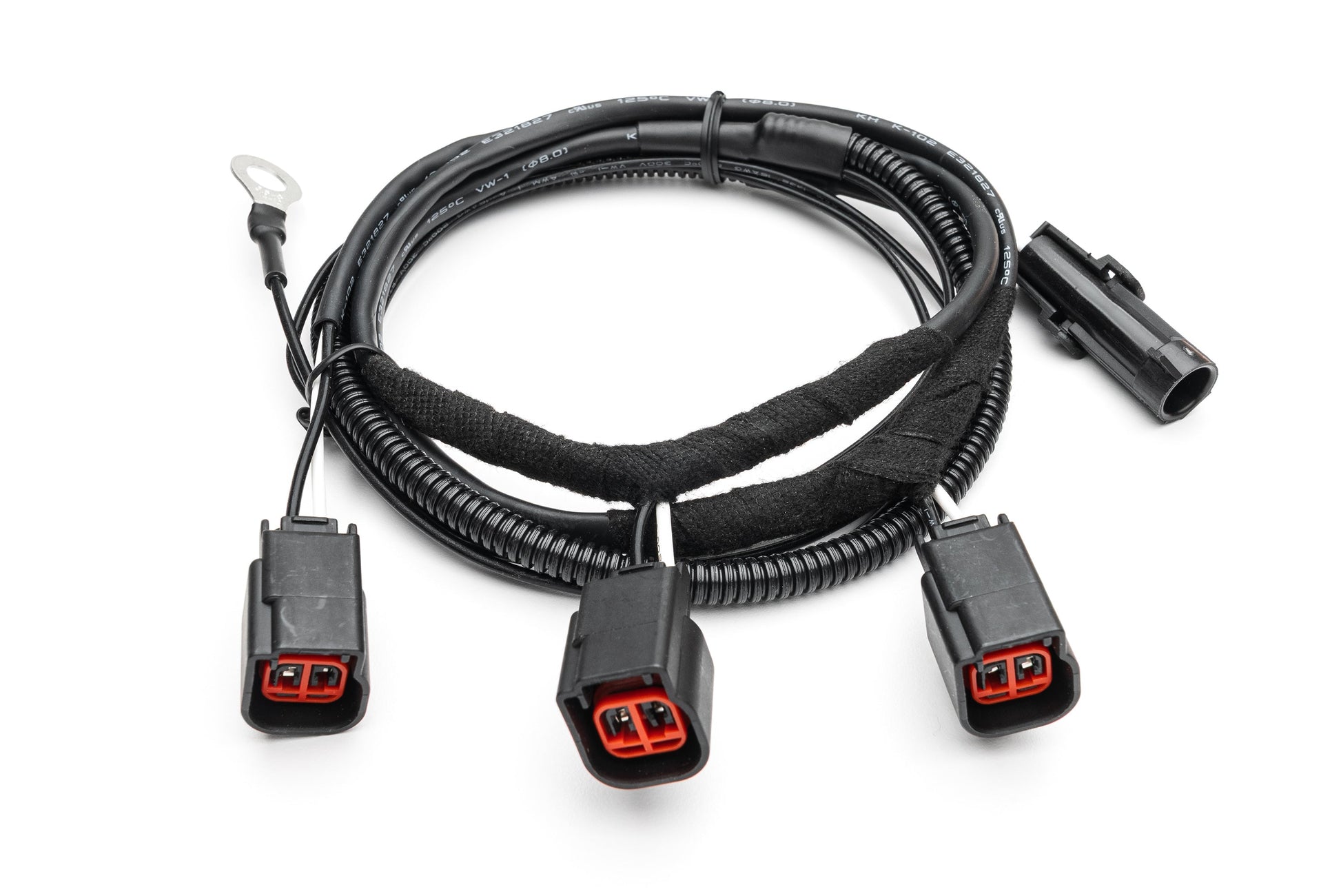

This Harness is a substitute for the Ford Harnesses used to install Marker Lights in an OEM Raptor Grille (Bronco or F-150)

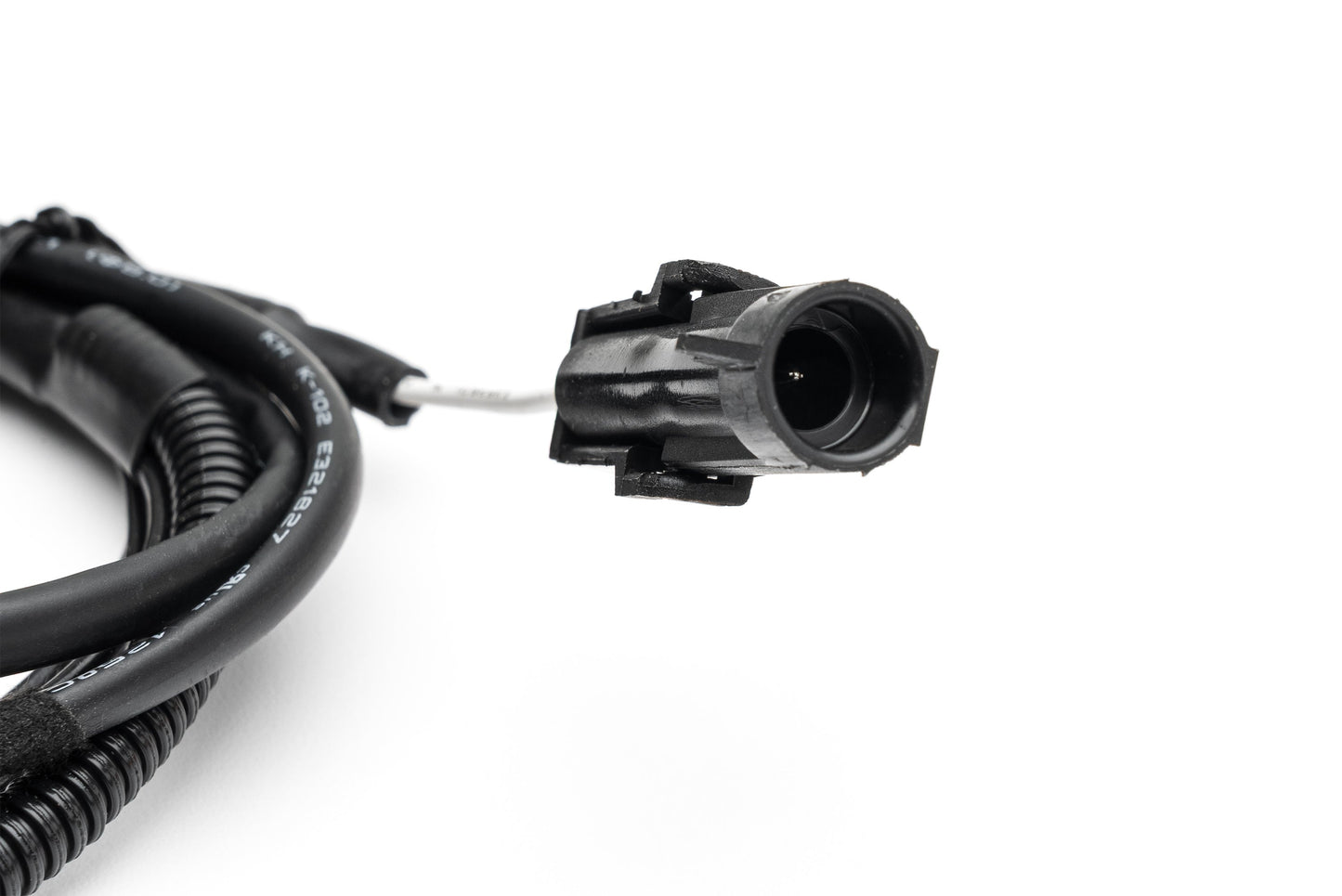

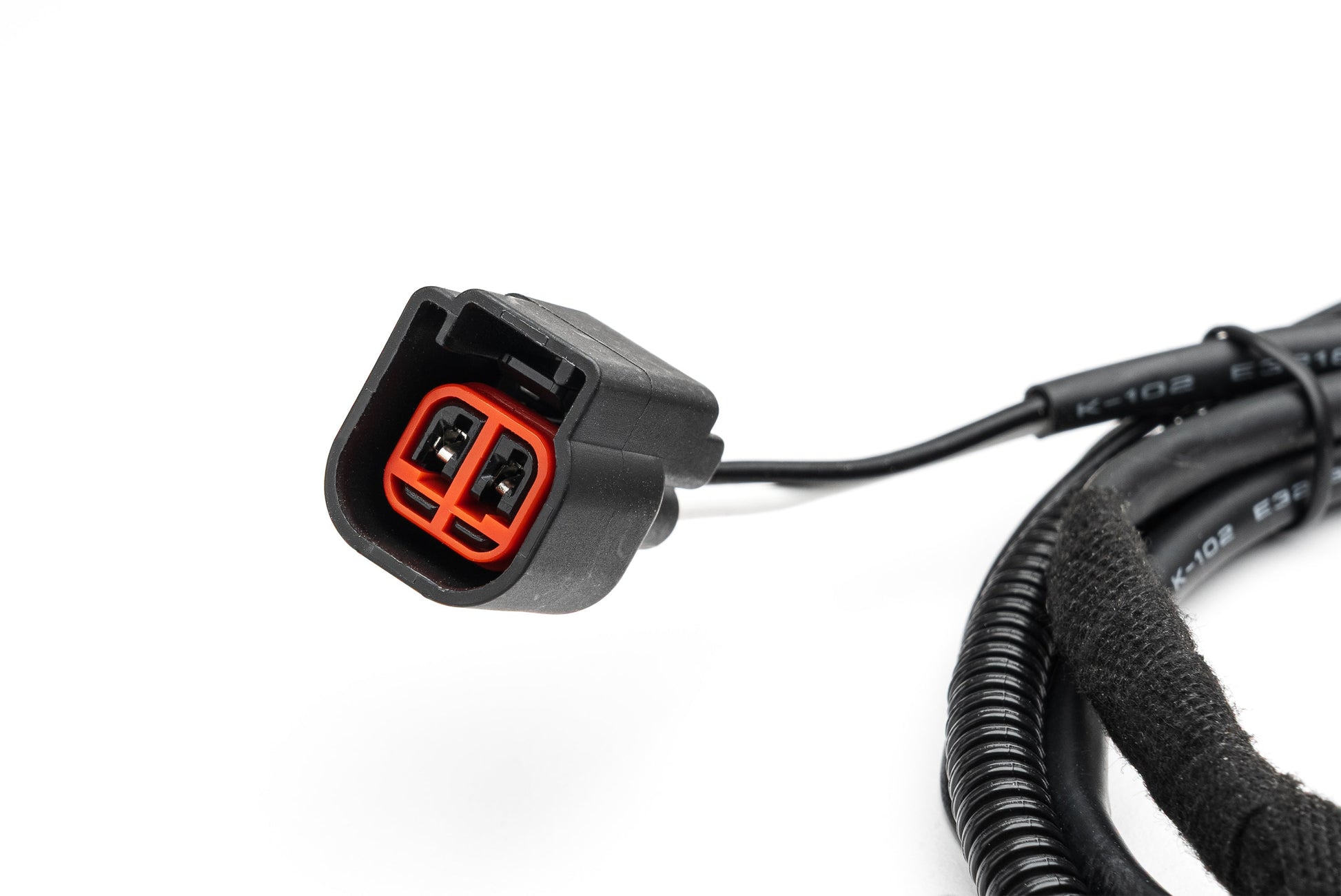

Example Use: Lets say you have a standard Bronco. You purchased a Bronco Raptor Grille and the Ford OEM Marker lights. Now you need a harness to connect to those 3 marker lights and then to connect those to power. Instead of buying multiple harnesses from Ford that have additional connectors you DON'T need, and at great expense. This harness will connect to all 3 marker lights with factory connectors and then lead to a single pole Weather Pack connector that can be plugged into either our headlight adapter (Sold Separate) that powers with parking/running lights just like OEM, or our Backlight Extension Wire (Sold Separate) that goes to an aux switch.

DON'T Forget to ADD the Extension OR Headlight Adapter!



Harness System Description-

This harness is part of our UNIVERSAL harness system. Each harness can be used for virtually ANY vehicle and ANY lighting application with the use of our many adapters and modules. Each adapter or module will simply plug into the harness to fit virtually ANY light.


For example, if you have any light such as Rigid Radiance, Scene, 360, or any other make and model WITHOUT connectors on the bare wires with the lights. You will simply add on the included matching connectors in the included kit.

If you have lights WITH connectors on them, you just add the correct connector adaptor type. Some examples of connector adapters are- Rigid Pro Series lights or Single stage lights use DT connectors. Baja Designs (For the most part) use WP Connectors. If you have a 3 wire light (With the Amber/Multicolor background) you can use the included plug pack to either add to your lights 90% of the time, or your light will most likely already have the 3 way WP connectors on them, which will match to these harnesses.



These harnesses also can be interconnected to other adapters from the system. Including Tail Light or Marker Light Trigger adapters to trigger reverse lights, marker lights to backlit lighting, etc.

See other optional components to BUILD YOUR LIGHTING SYSTEM!!



IMPORTANT!!!

This Component is a stand alone harness that is all you will need in applications like the Ford F-150 Raptor, where you are connecting into the vehicles BUILT IN RELAYS and FUSES. This harness is not FUSED and therefore, if you are connecting it direct to ANYTHING other than a fused circuit, you MUST connect our add on Relay/Fuse adaptor to protect your lights and vehicle from fire. We are NOT responsible for incorrectly installed equipment. If you have questions, please refer to the chart, instructions or reach out to us so we can guide you.


***Click Here for Basic Instructions***

***Click Here for Data & Use Sheet***

Component of the SPV Harness System-

PATENTED - US 11,699,537 B2
