sPod BantamX Upfitter Kit – Ford F-250350 Super Duty 2023-On

The sPODBantamX Upfitter power management system for the 2023-on Ford F-250/350 Super Duty is specifically engineered to integrate with the factory upfitter switches of these vehicles. With 8 power circuits, each delivering 30A and a total capacity of 100A, this plug-and-play system is designed to fit seamlessly into your truck.

The BantamX enhances the versatility of the stock upfitter switches, allowing you to power a wide range of accessories such as lights, actuators, lockers, fans, and more. Designed with built-in sPODConnect™ Bluetooth technology, the sPOD BantamX allows users to program the system from any iOS or Android device via the sPOD app. The app offers a wide range of programming options, including output dimming, strobing, flashing, master-slave functions, memory, auto power-up, momentary settings, switch linking, input control, and more.

With no relays to worry about, sPOD’ssGuard programmable self-healing technology protects the entire system, while LVCO (Low Voltage Cutoff) automatically disconnects accessories to prevent battery over-discharge. The BantamX supports system scalability, allowing for the expansion of up to 32 channels controlled by a single controller. Backed by a 5-year* manufacturer warranty, sPOD provides simple and safe power management, ensuring you can take control with confidence.

Features:

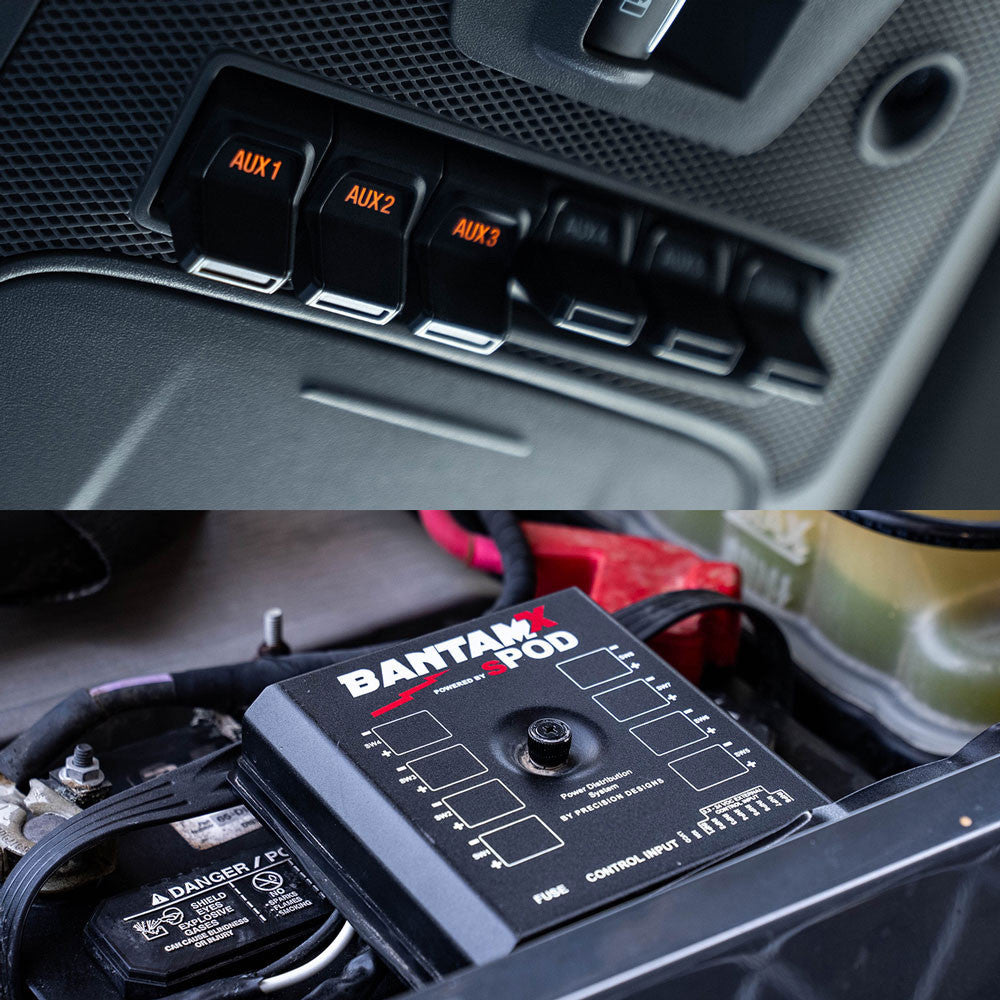

• Use your OEM upfitter switches to trigger your BantamX
• Increase amp rating across the first four switches to 30 Amps
• Gain two to four extra switches with the BantamX, depending on configuration
• Bluetooth functionality through the sPOD app: output dimming, strobing, flashing, memory, auto power-up, momentary settings, switch linking and more
• No longer need to run a controller cable through vehicle firewall

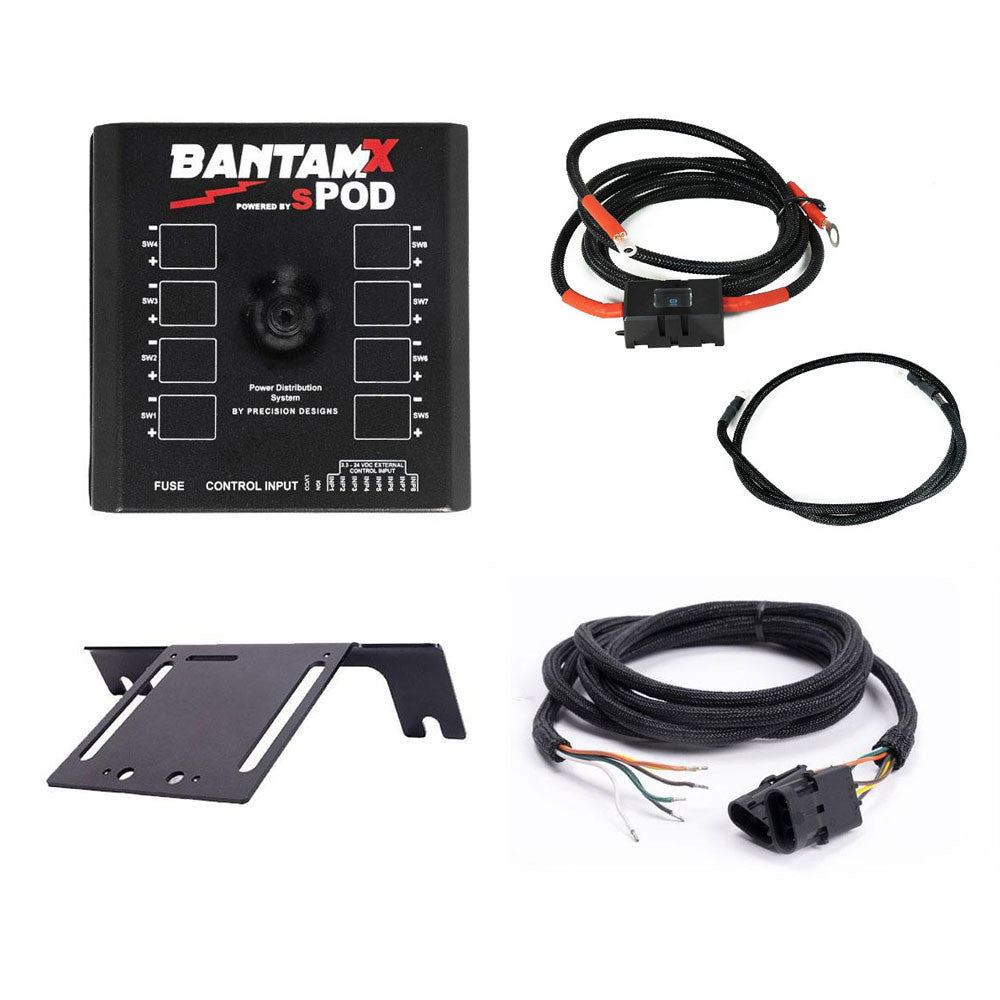

The BantamX Upfitter System includes:

• (1x) BantamX System
• (1x) 84” Battery Cable Set w/100A In-Line Fuse

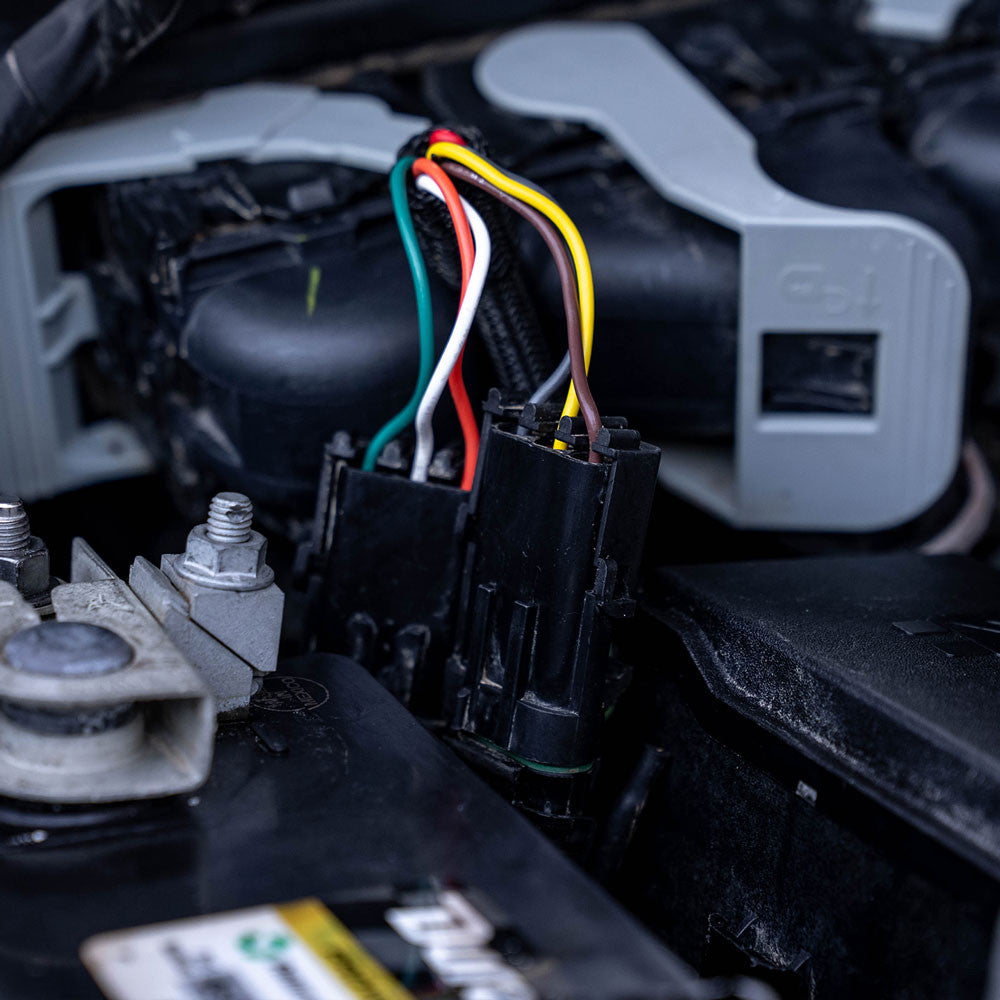

• (1x) Upfitter Harness
• (1x) Ethernet Cable
• (1x) Mounting Bracket
• (1x) HD Legend Sheet
• All necessary hardware

Specs for the BantamX:

• 8 circuits rated at 30 amps at 12.5 VDC per circuit, 100A total

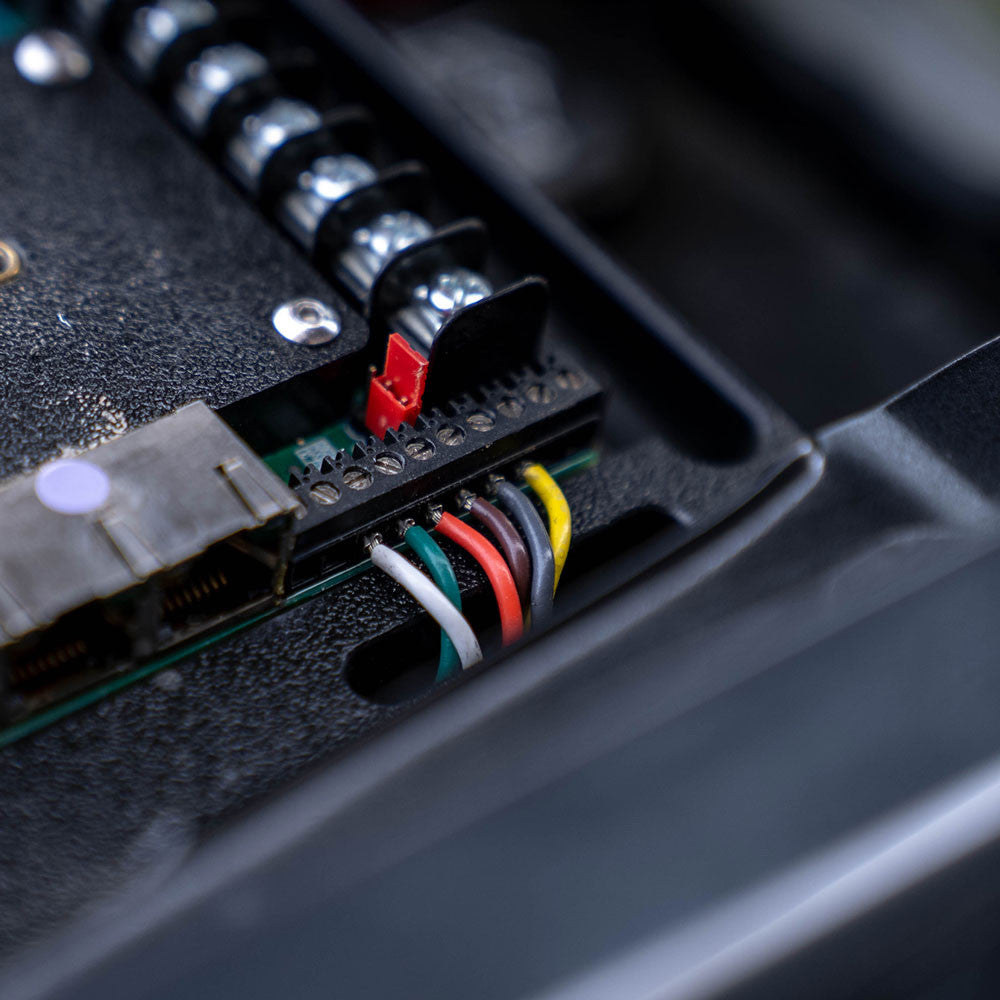

• 16-position terminal block
• Integrated low voltage cutoff battery protection w/ optional override
• 100 amp in-line fuse
• Operates on 12 VDC or 24 VDC
• Built in Bluetooth capabilities for remote app control
• Input control automates functions for all switch circuits
• System Scalability allows expansion of up to 32 channels, controlled by one controller
• 2 controller port compatible
• Power saving deep sleep mode
