SPV Parts 2021-2025 FORD BRONCO - REAR BAJA DESIGNS S1 or S2 / SPV REVERSE LIGHT KIT (NO DRILL/MOD) rear light kit

NEW! Now available for 2021 + Ford Bronco

The New SPV Bronco Reverse Light kit utilizing the Baja Designs S2 lights are Here!!

The advantage to these is the extra slim case. If you want similar light output and less bulk... this might be the Baja Designs light kit for you...

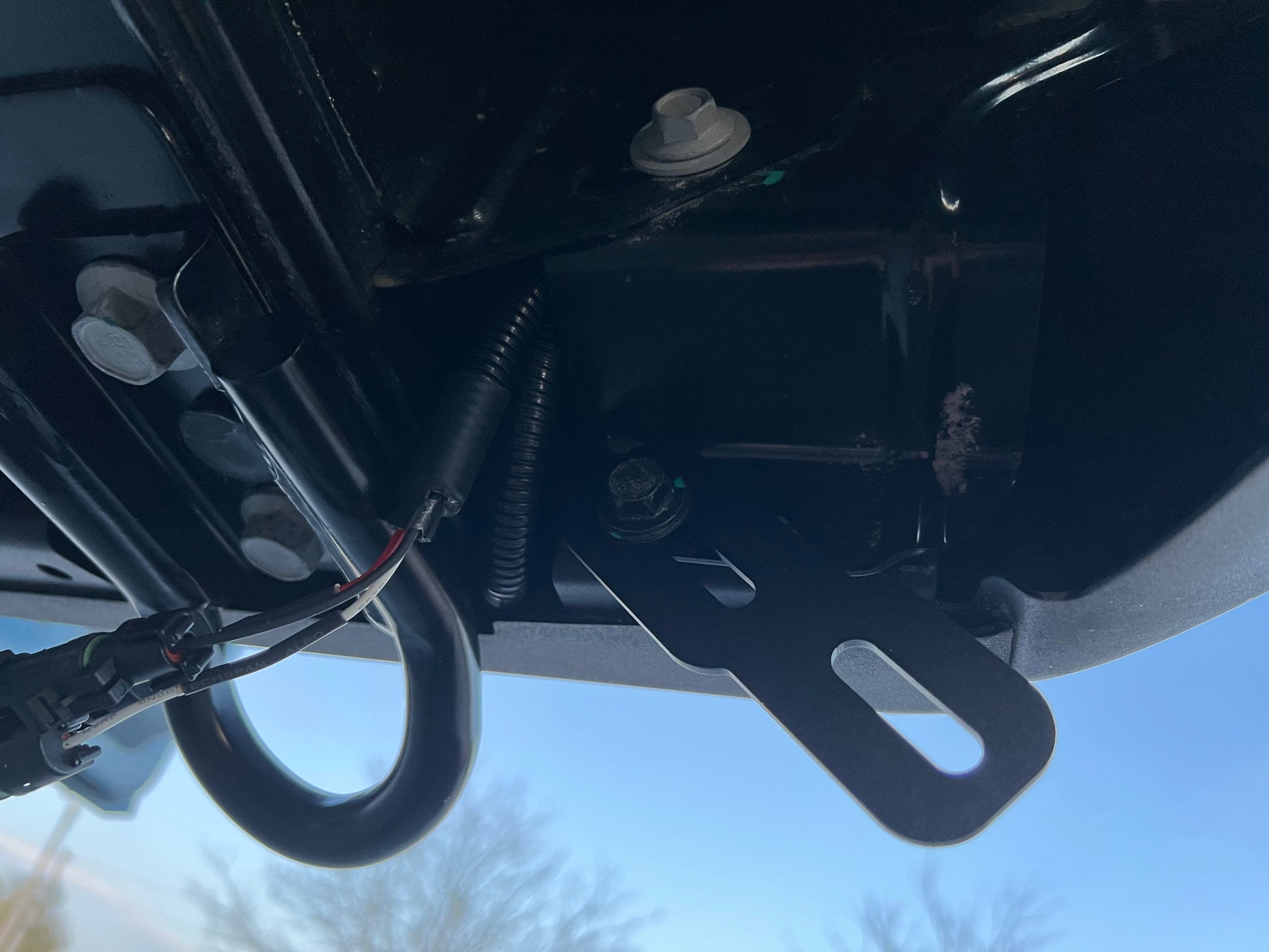

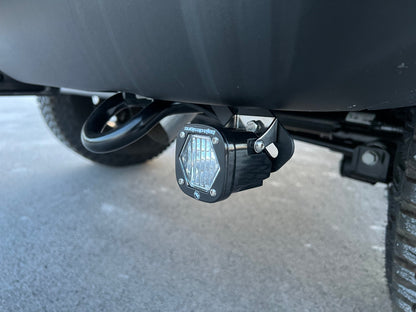

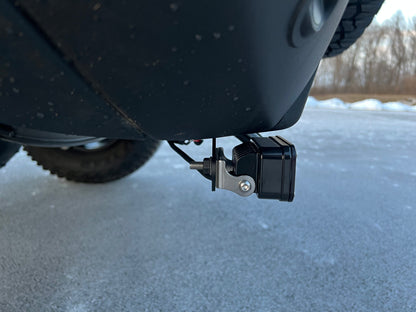

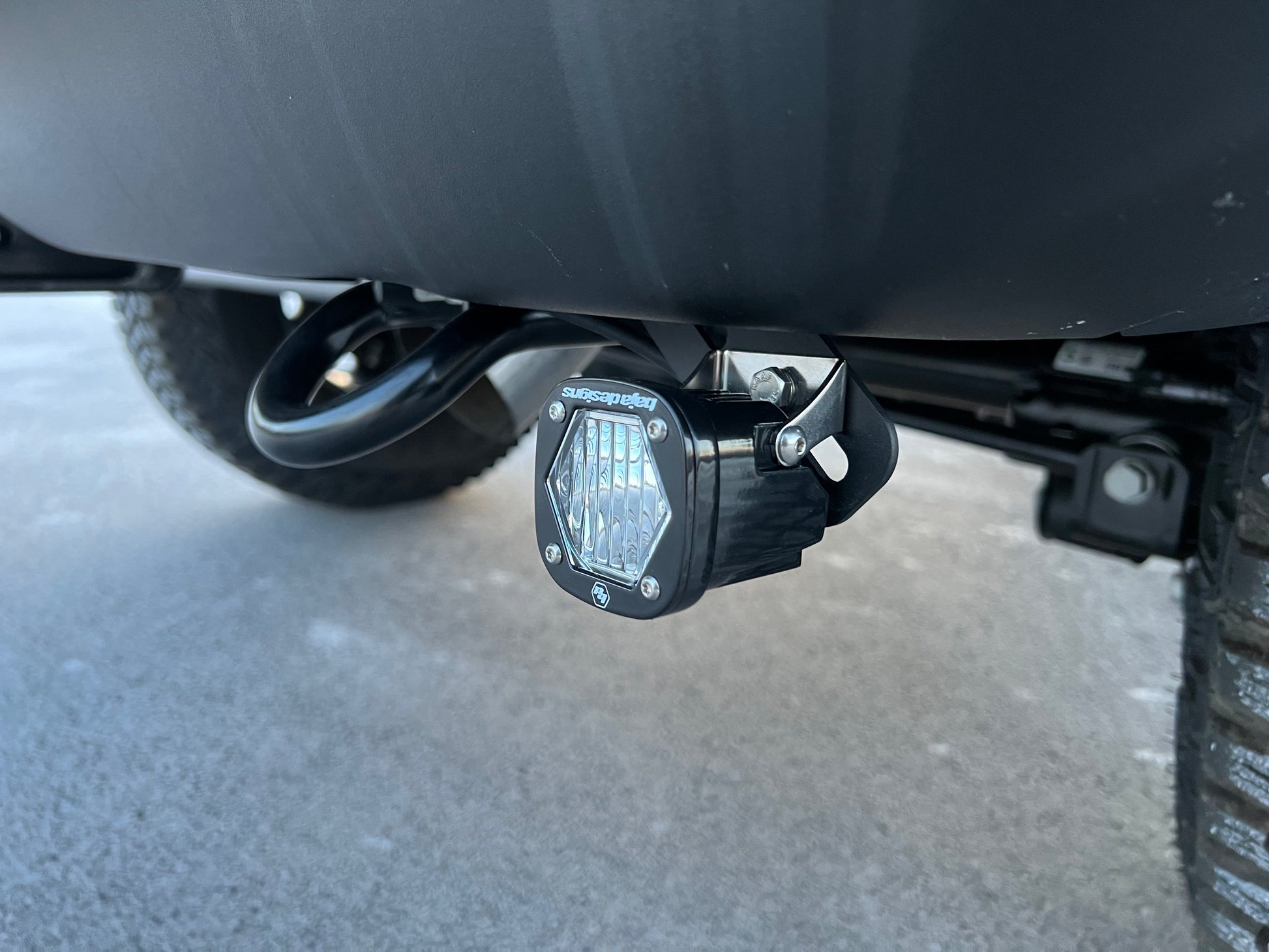

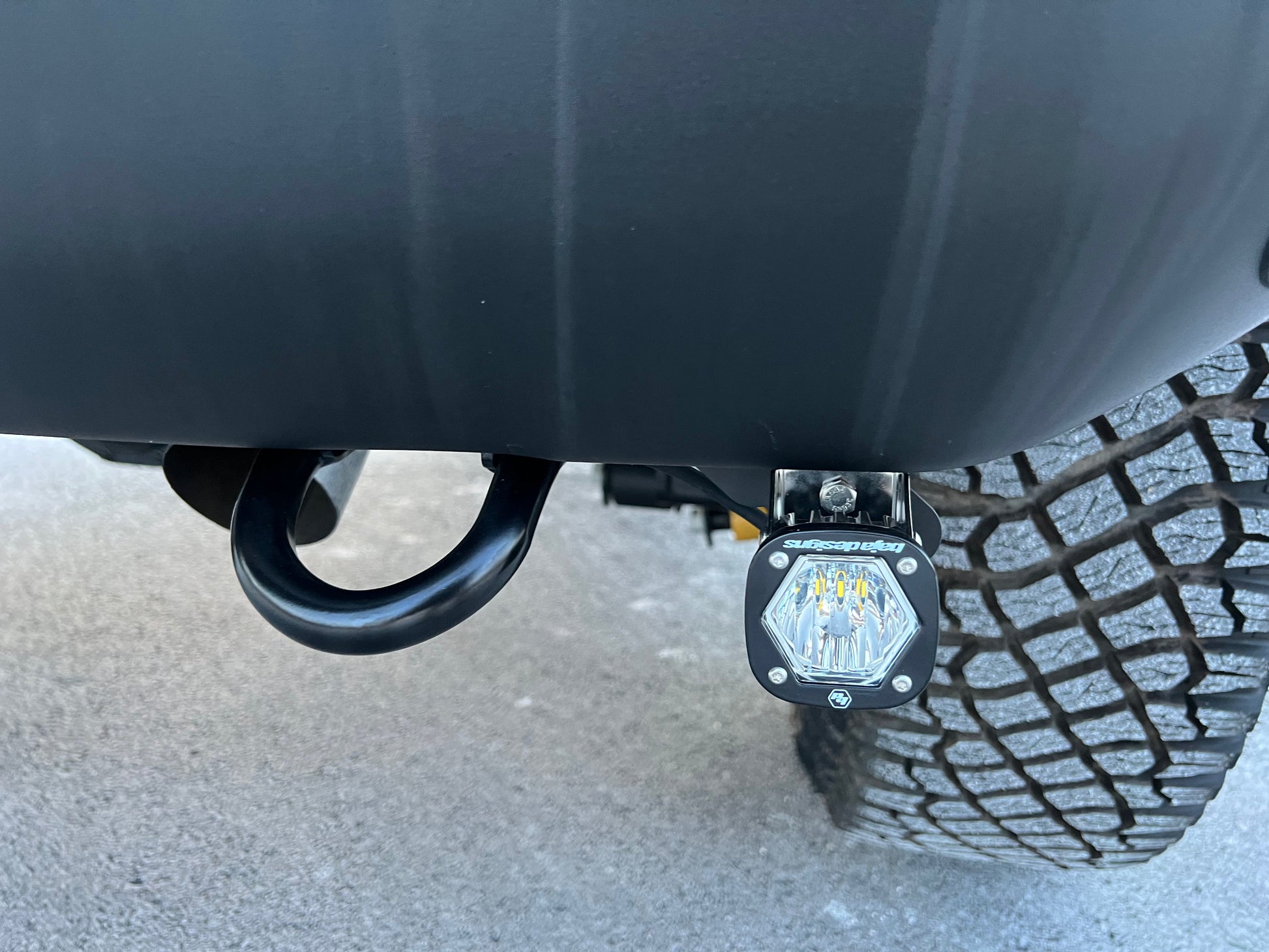

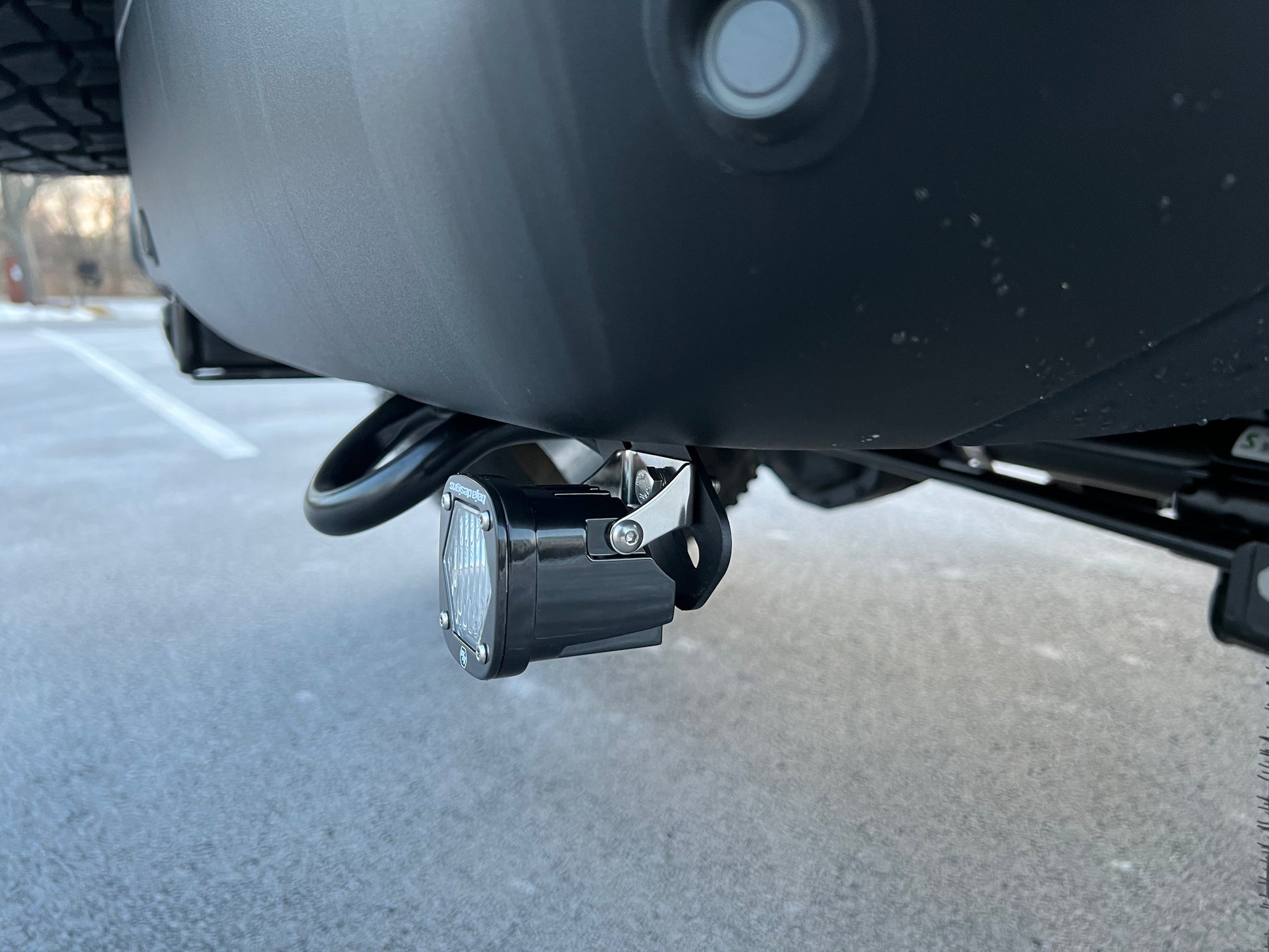

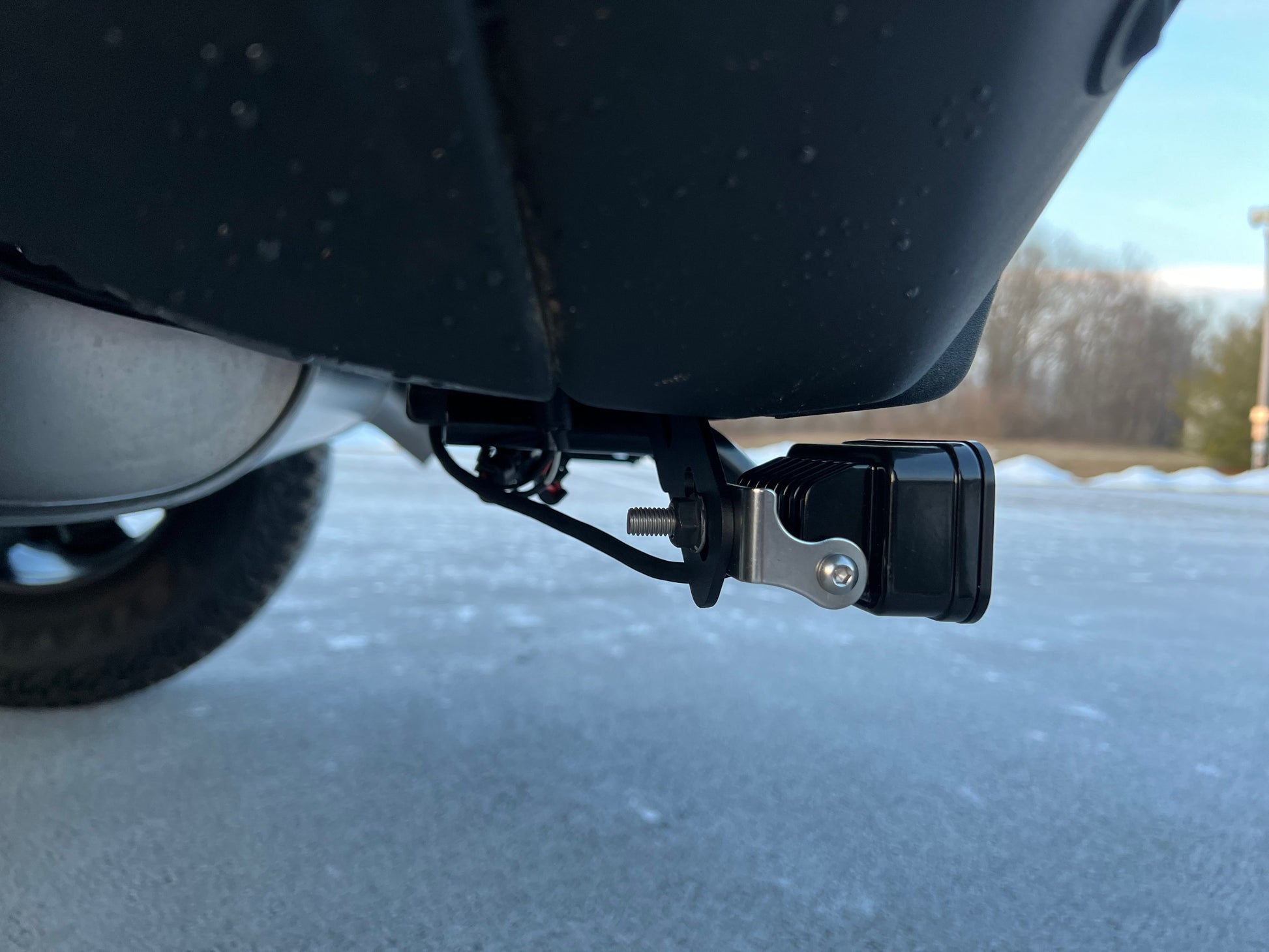

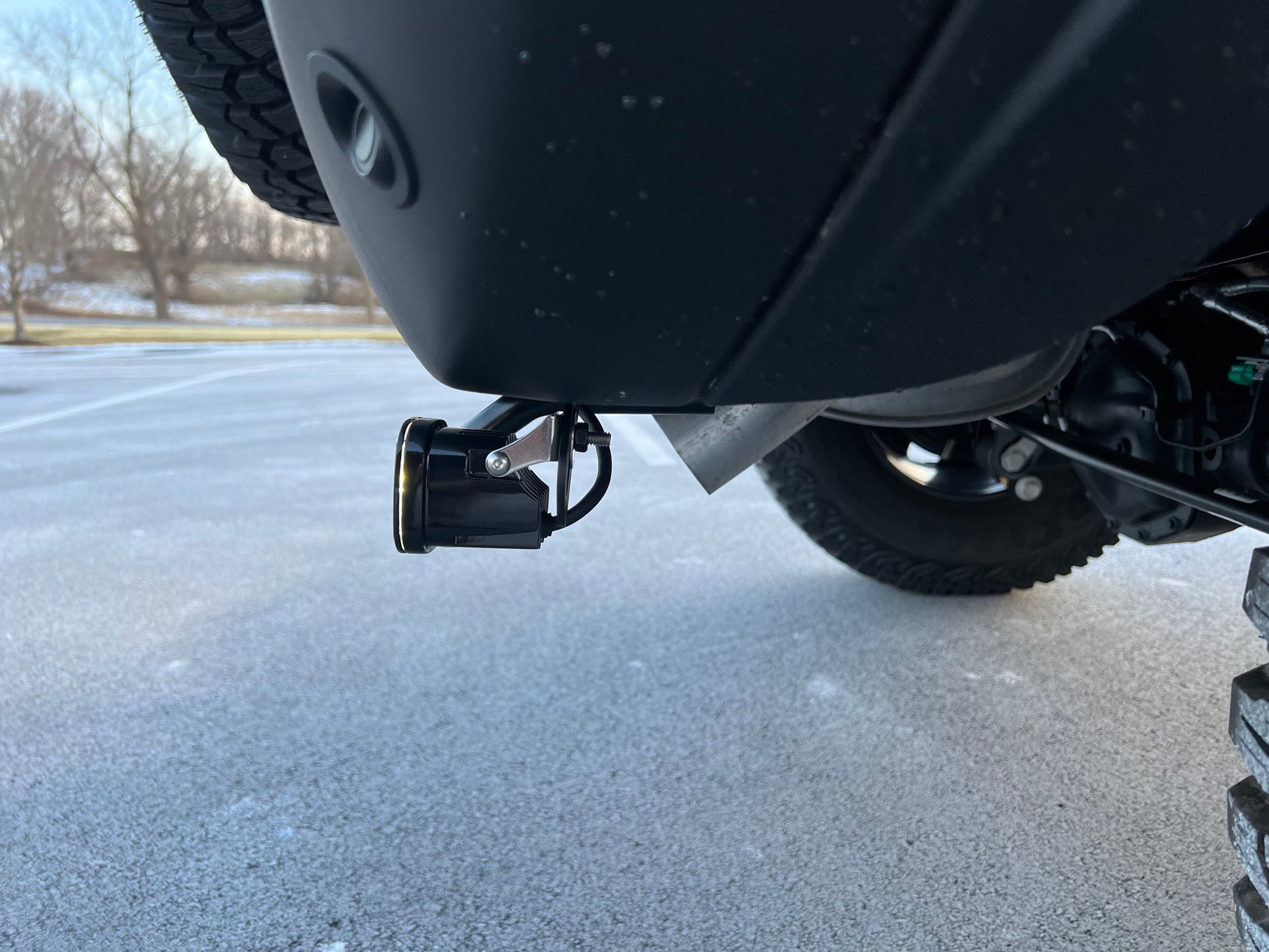

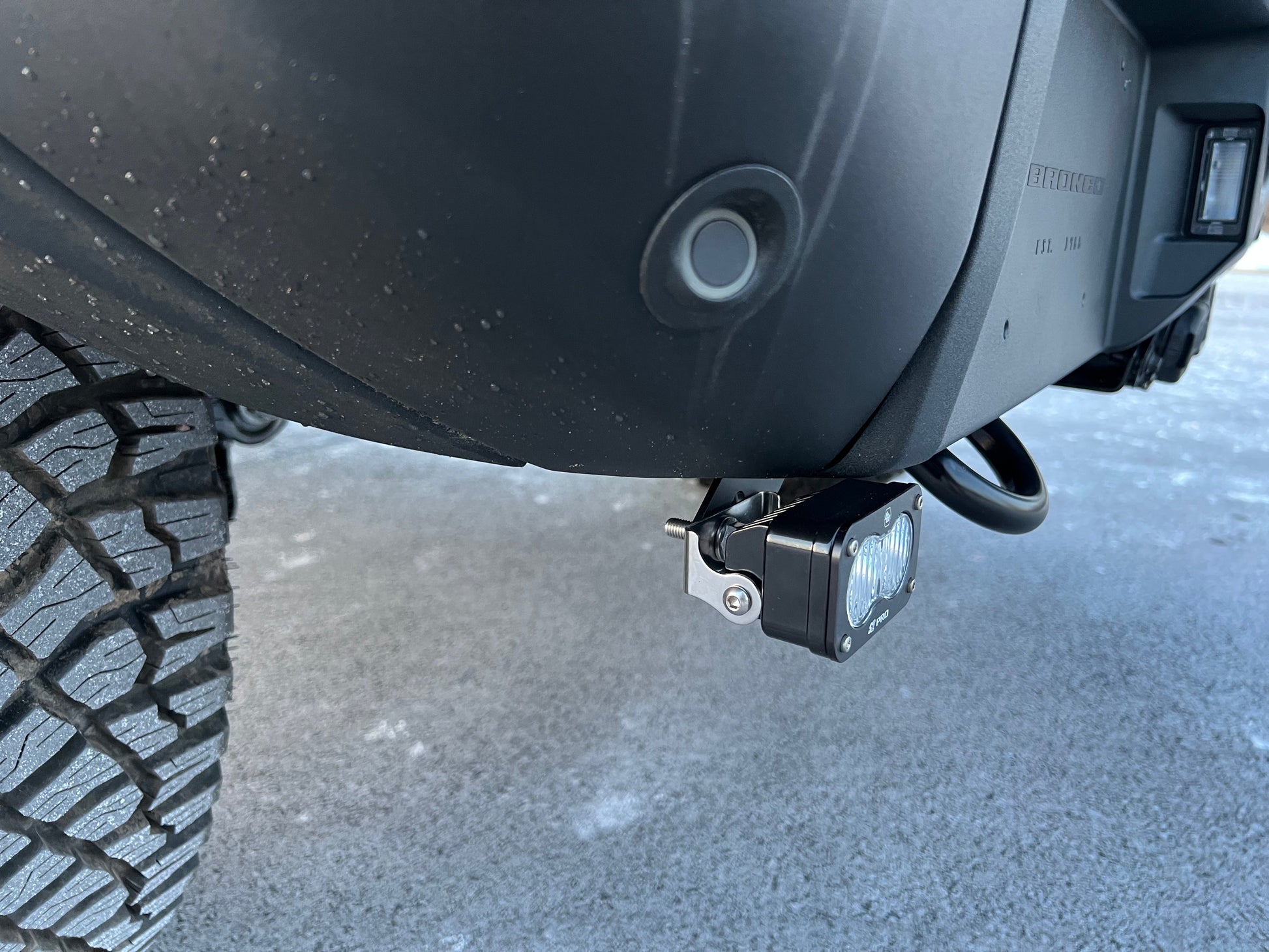

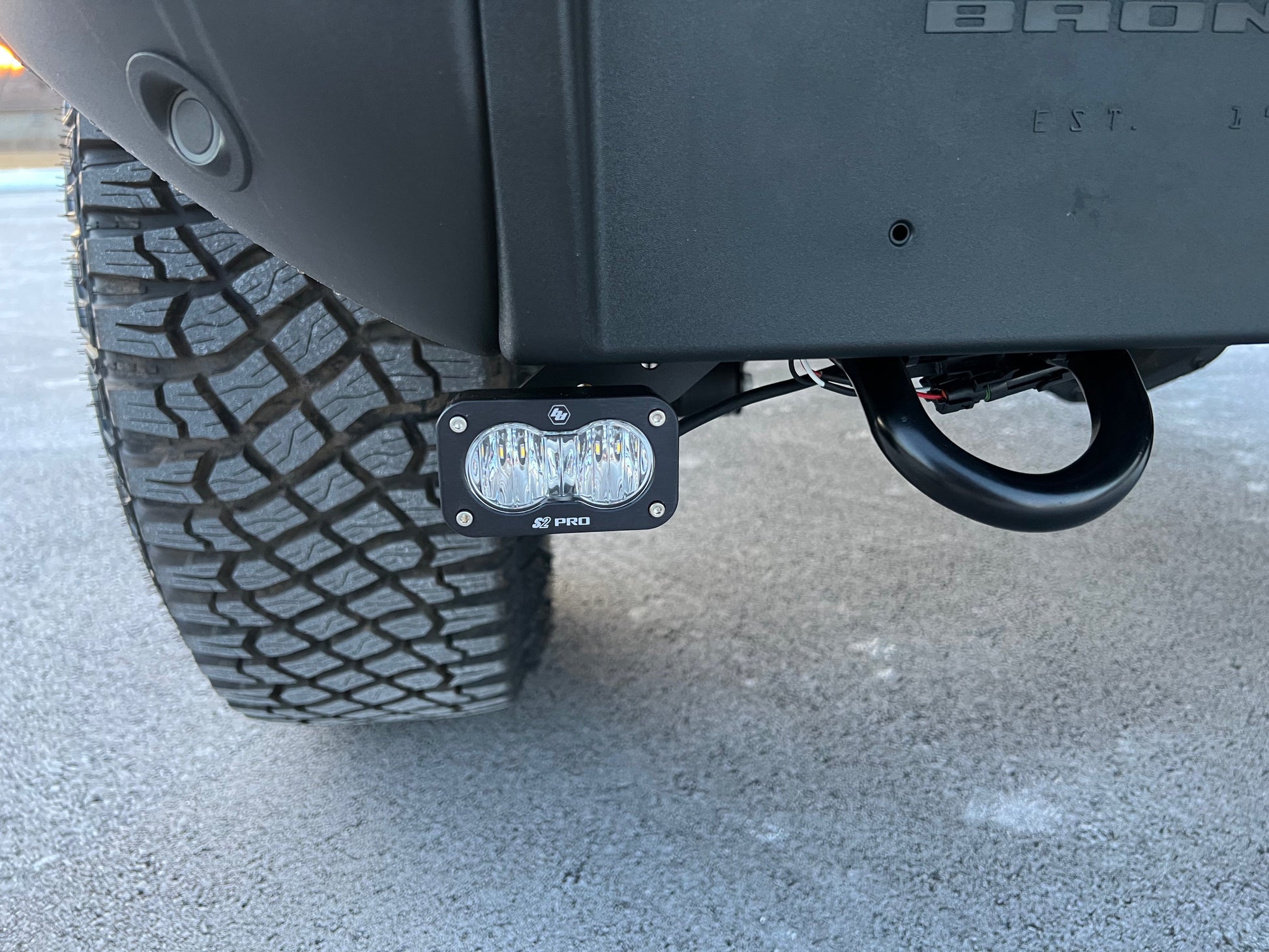

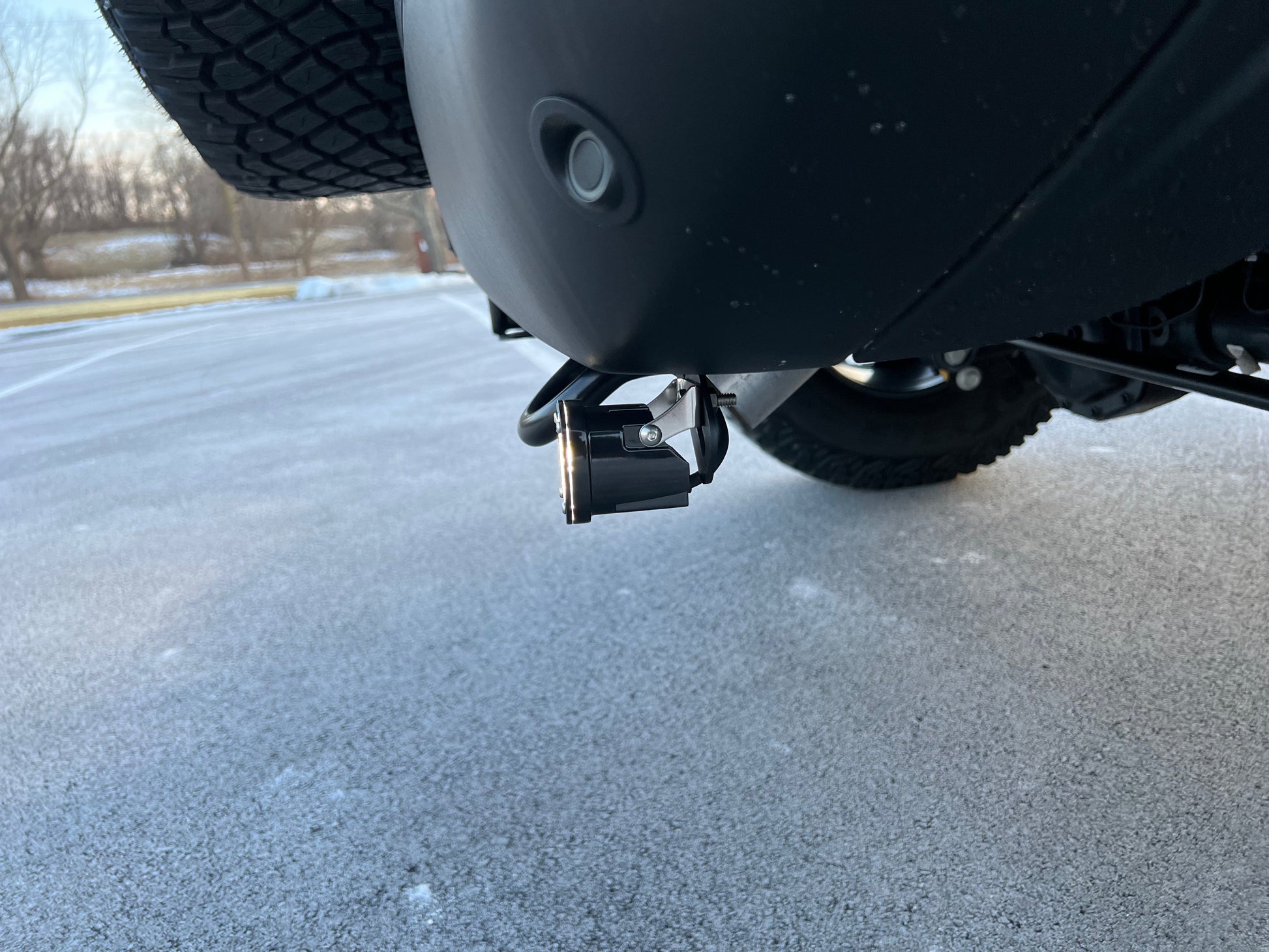

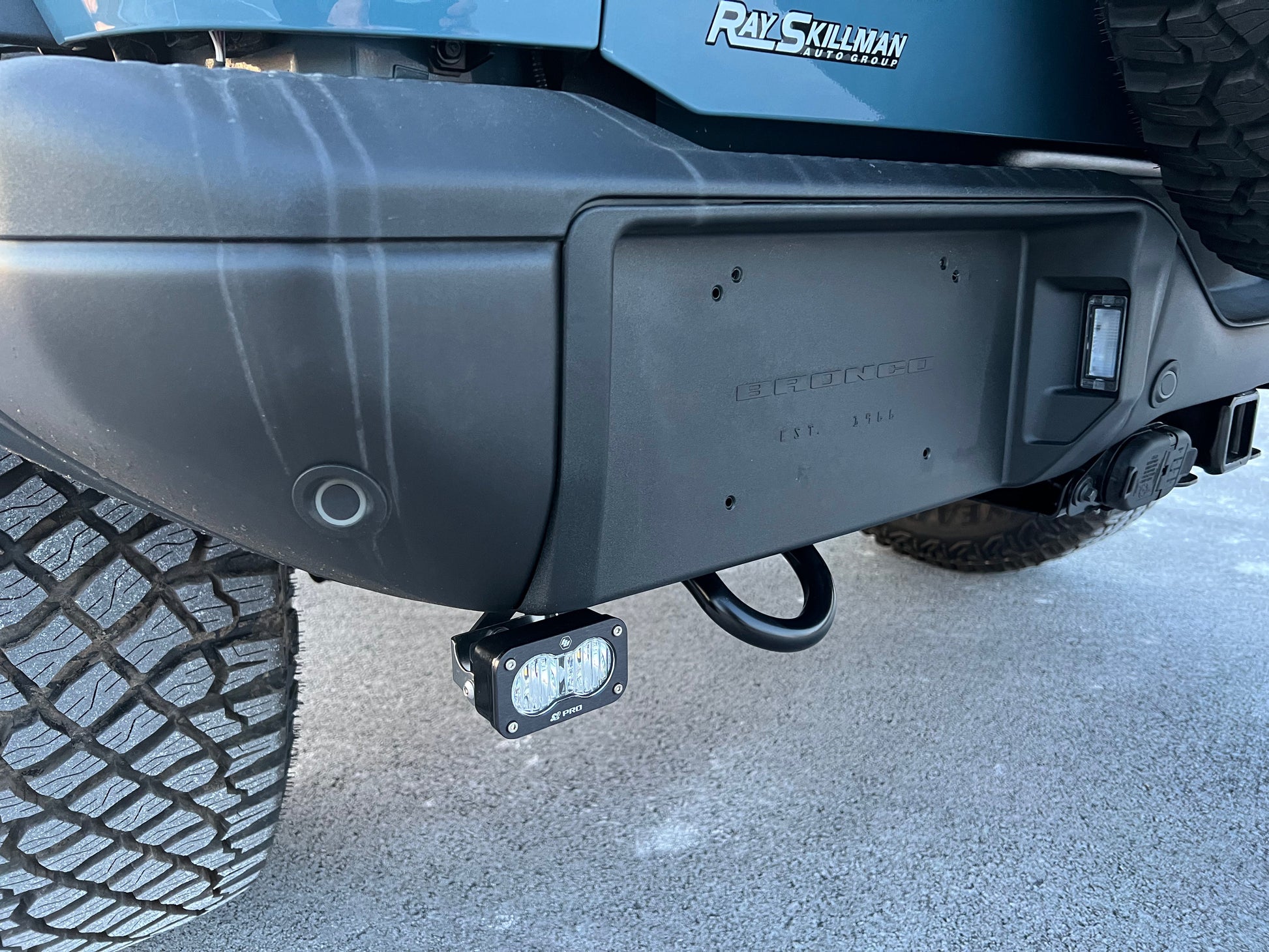

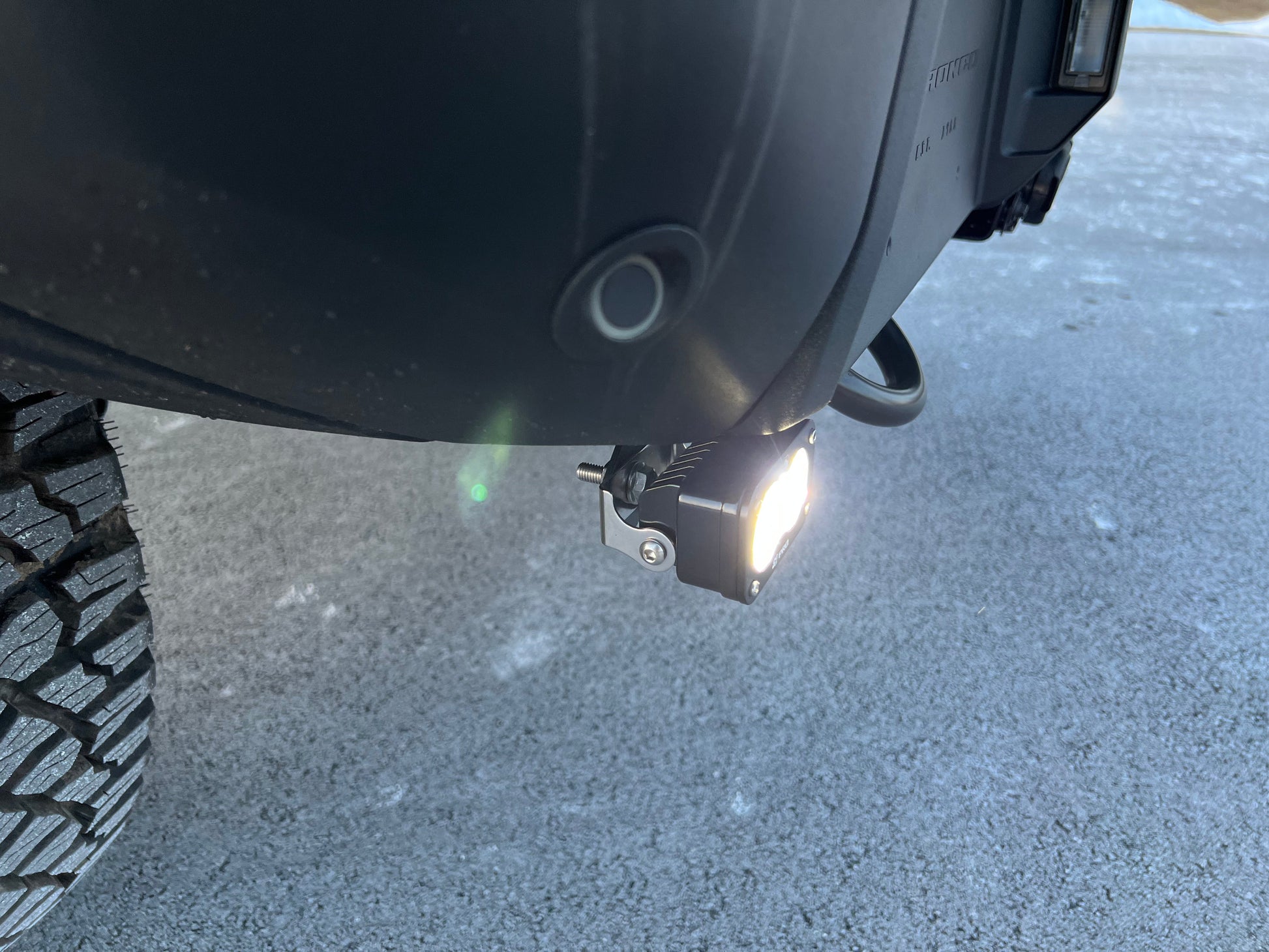

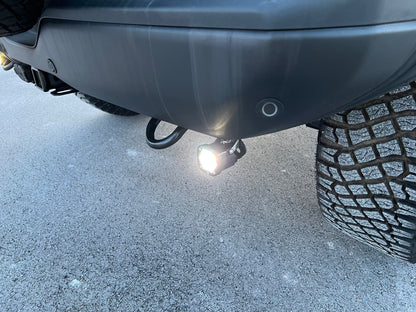

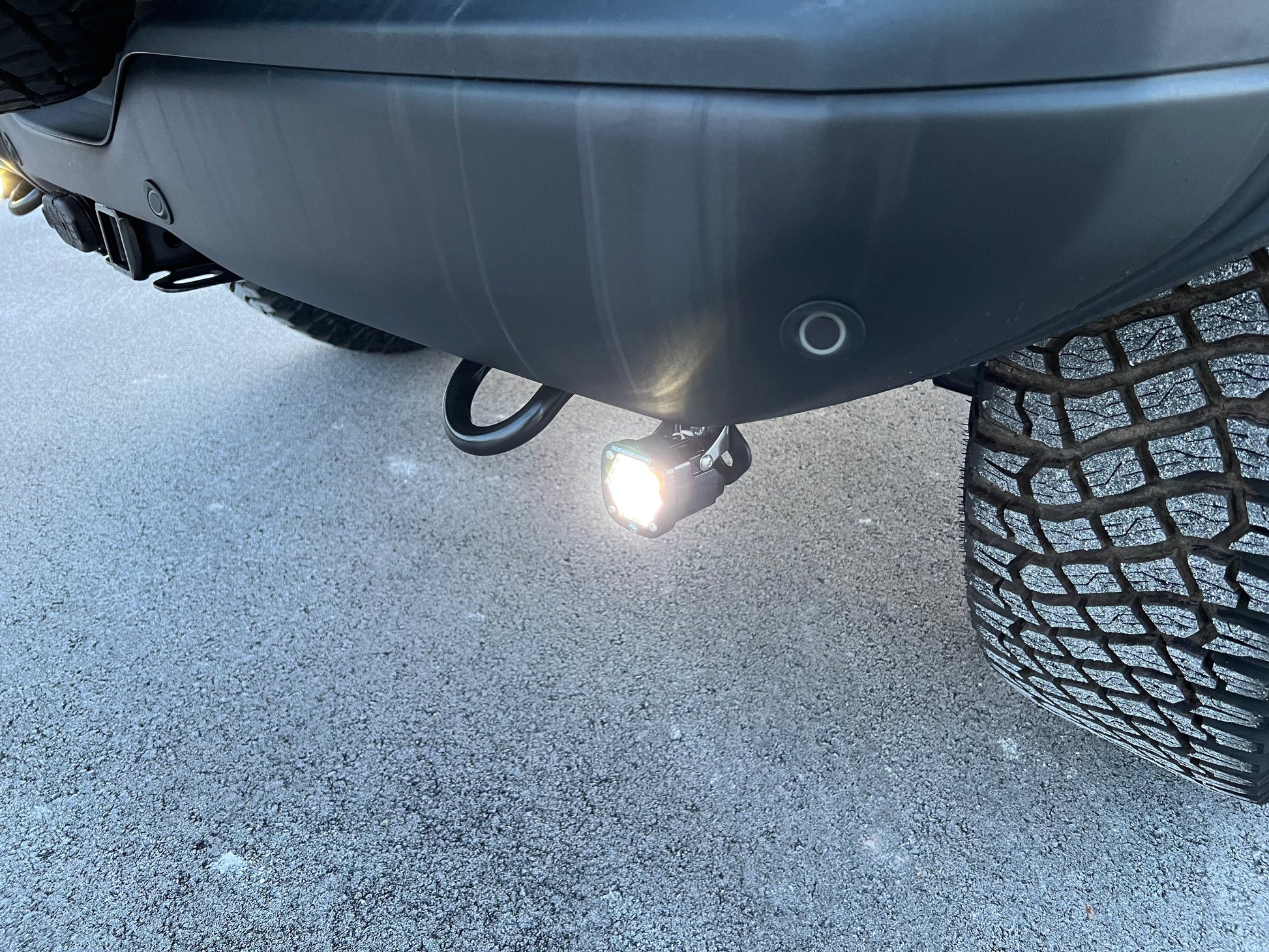

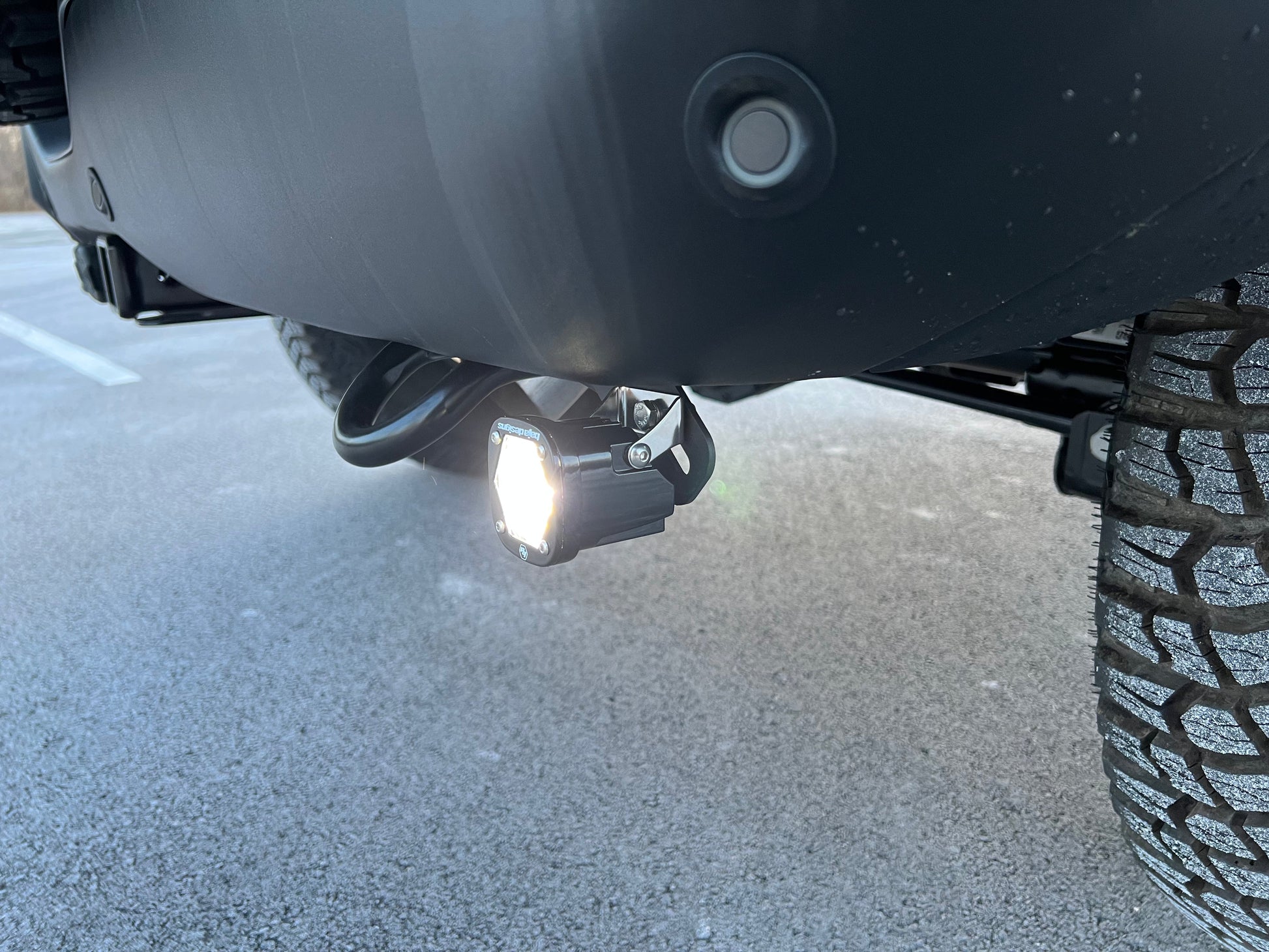

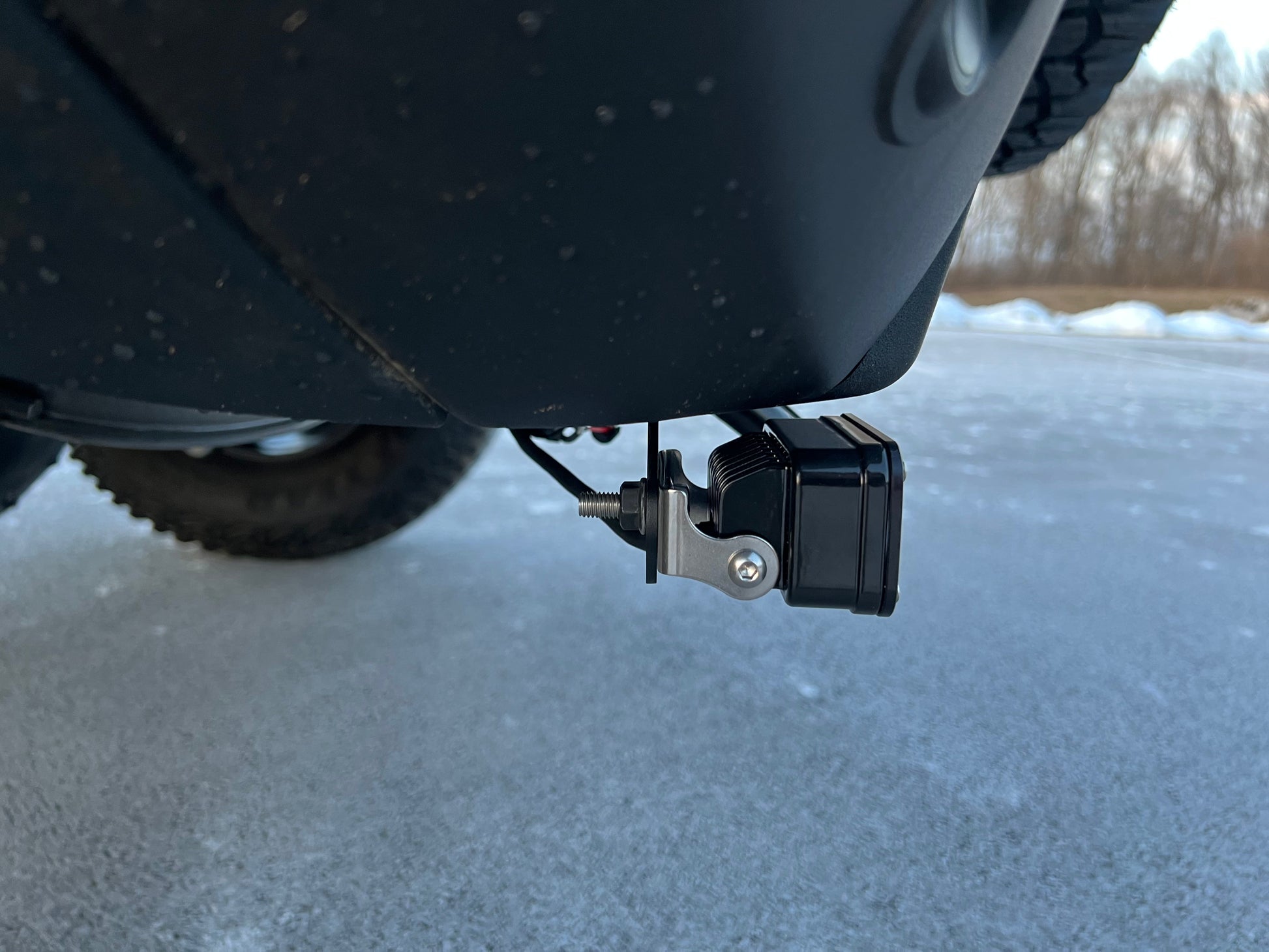

 NOTE: There are 2 bolts where the mounts can be attached. One on the outside of the tow hooks and one on the inner side of the tow hooks. For those concerned with departure angle and clearance, you can easily mount them at the inner bolts which will keep them higher that the tow hooks.

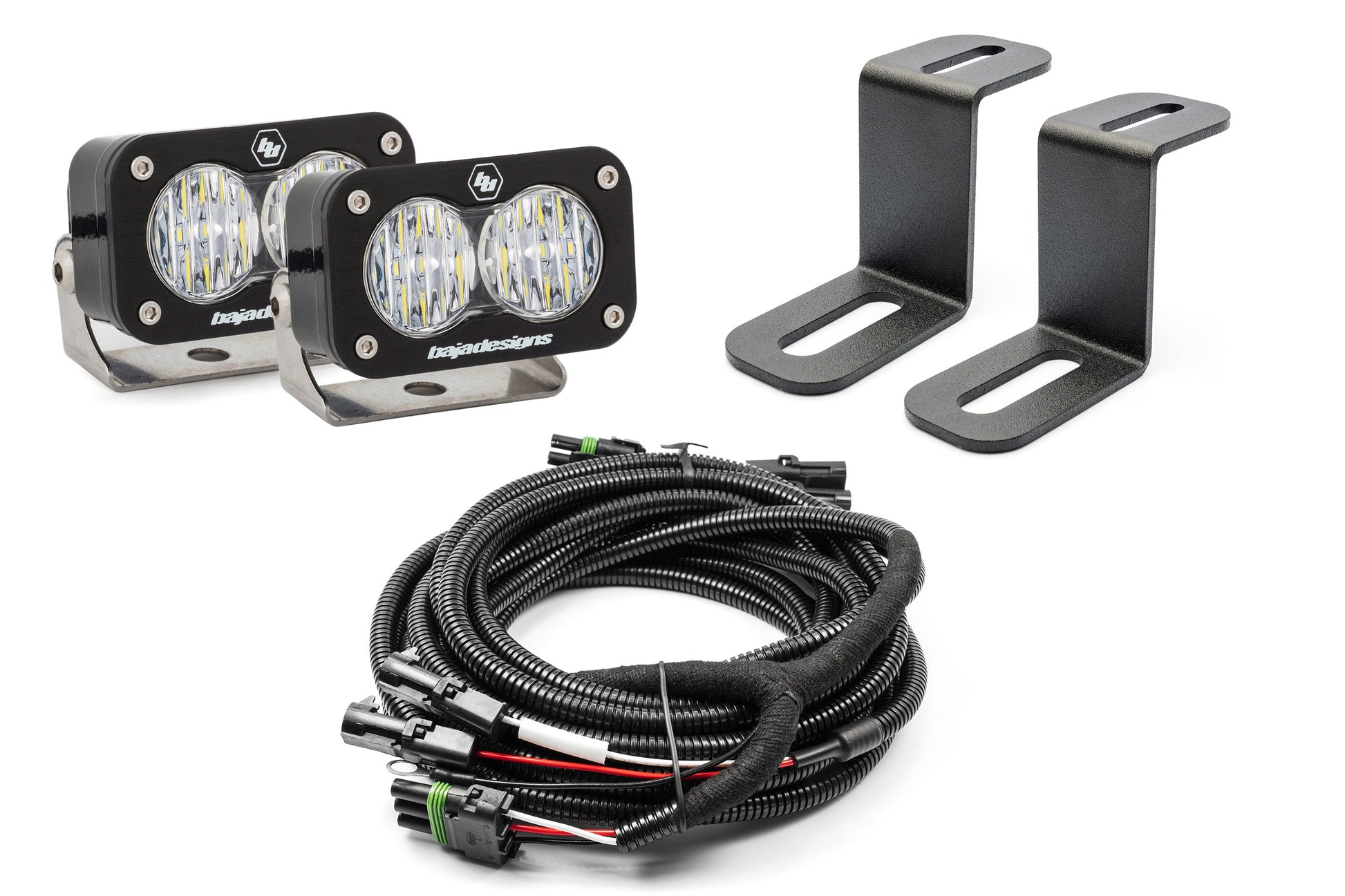

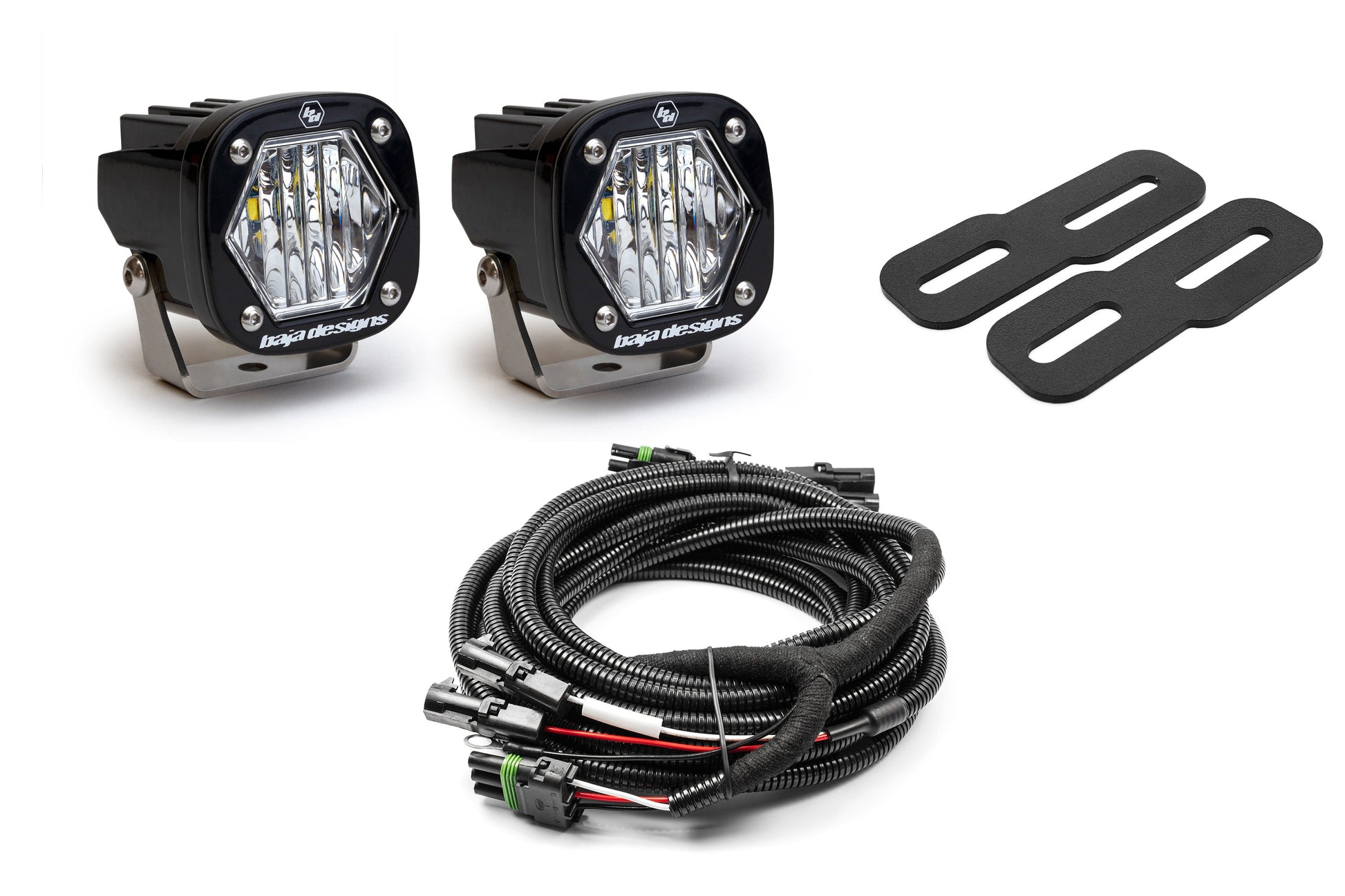

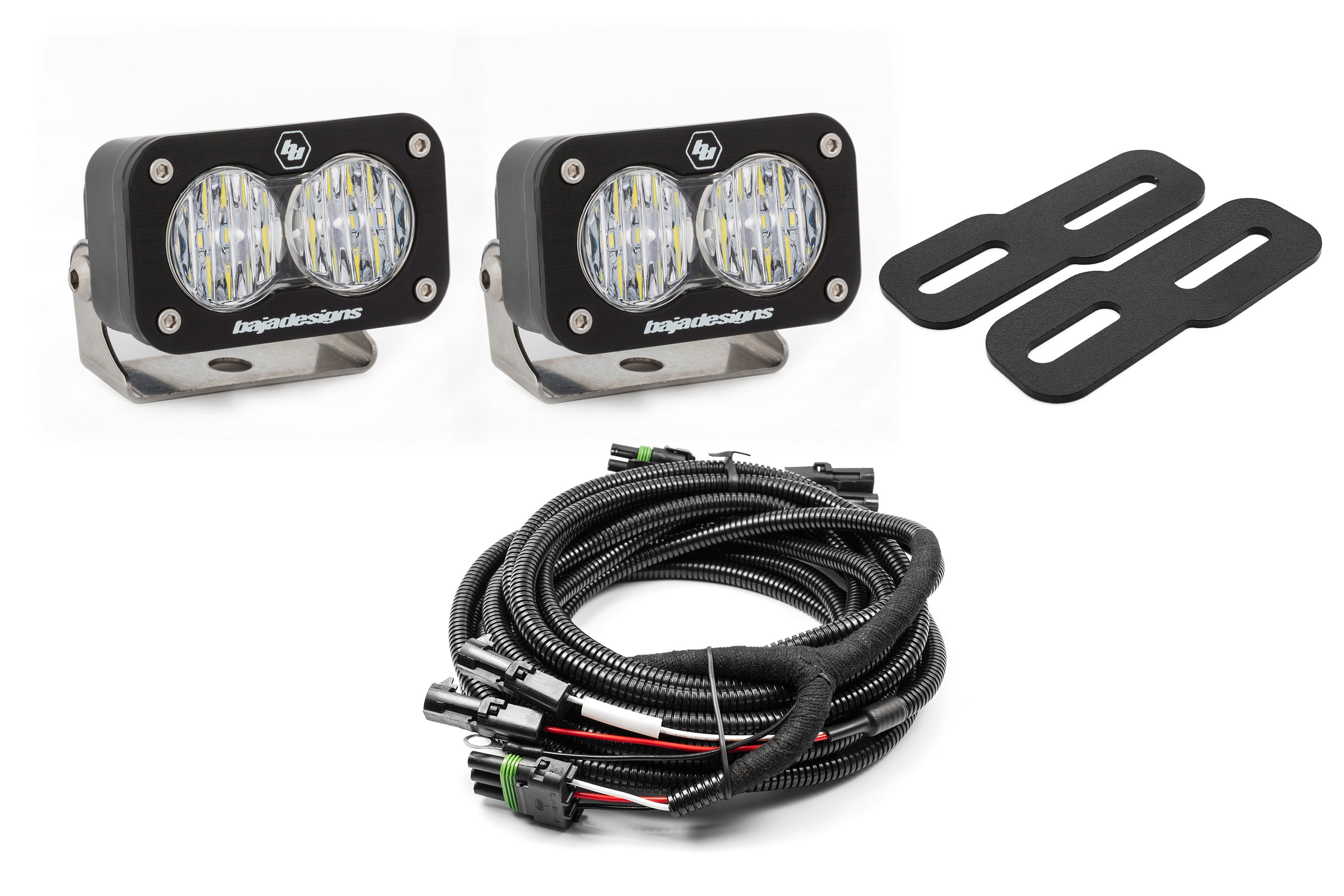

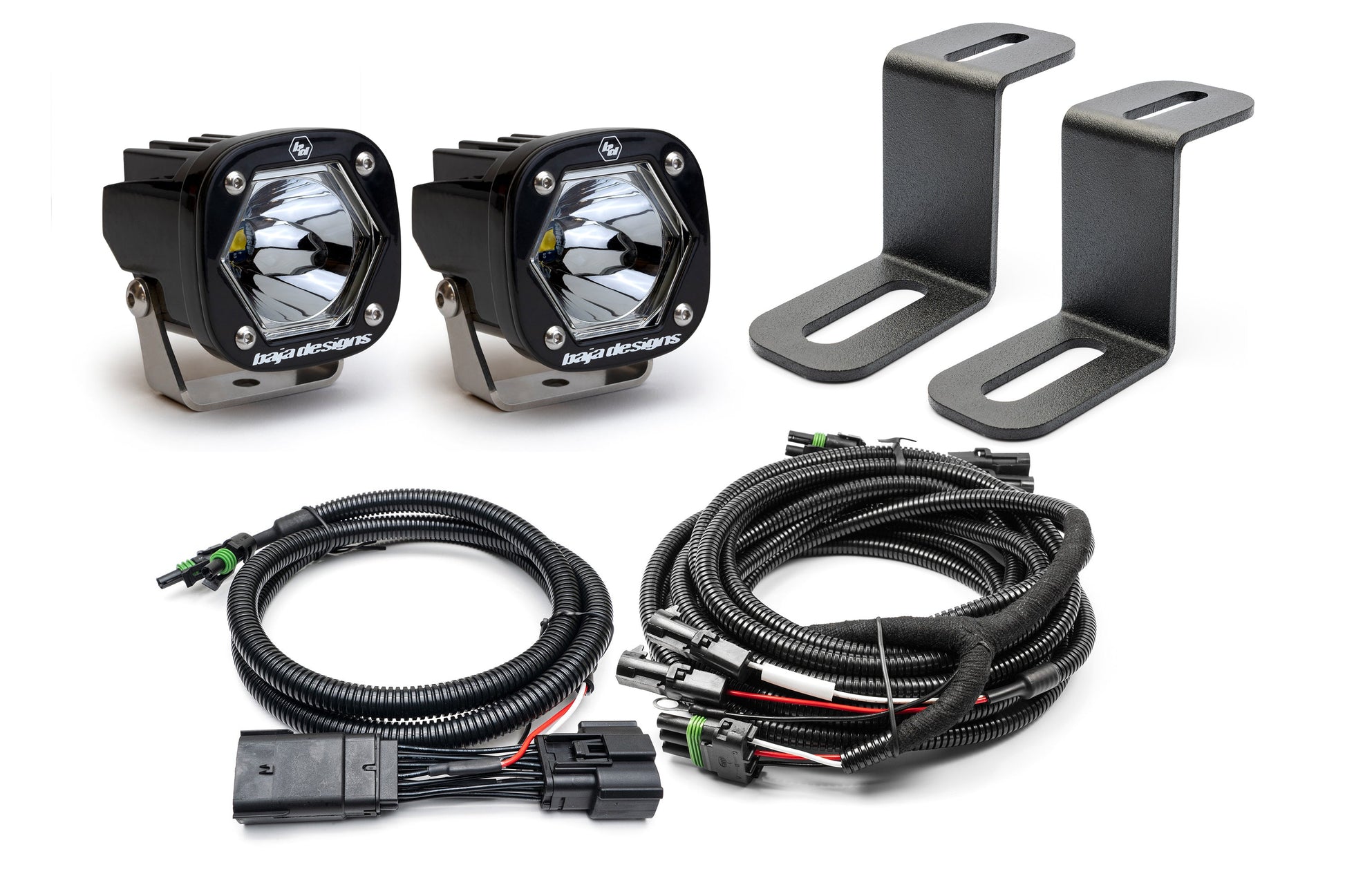

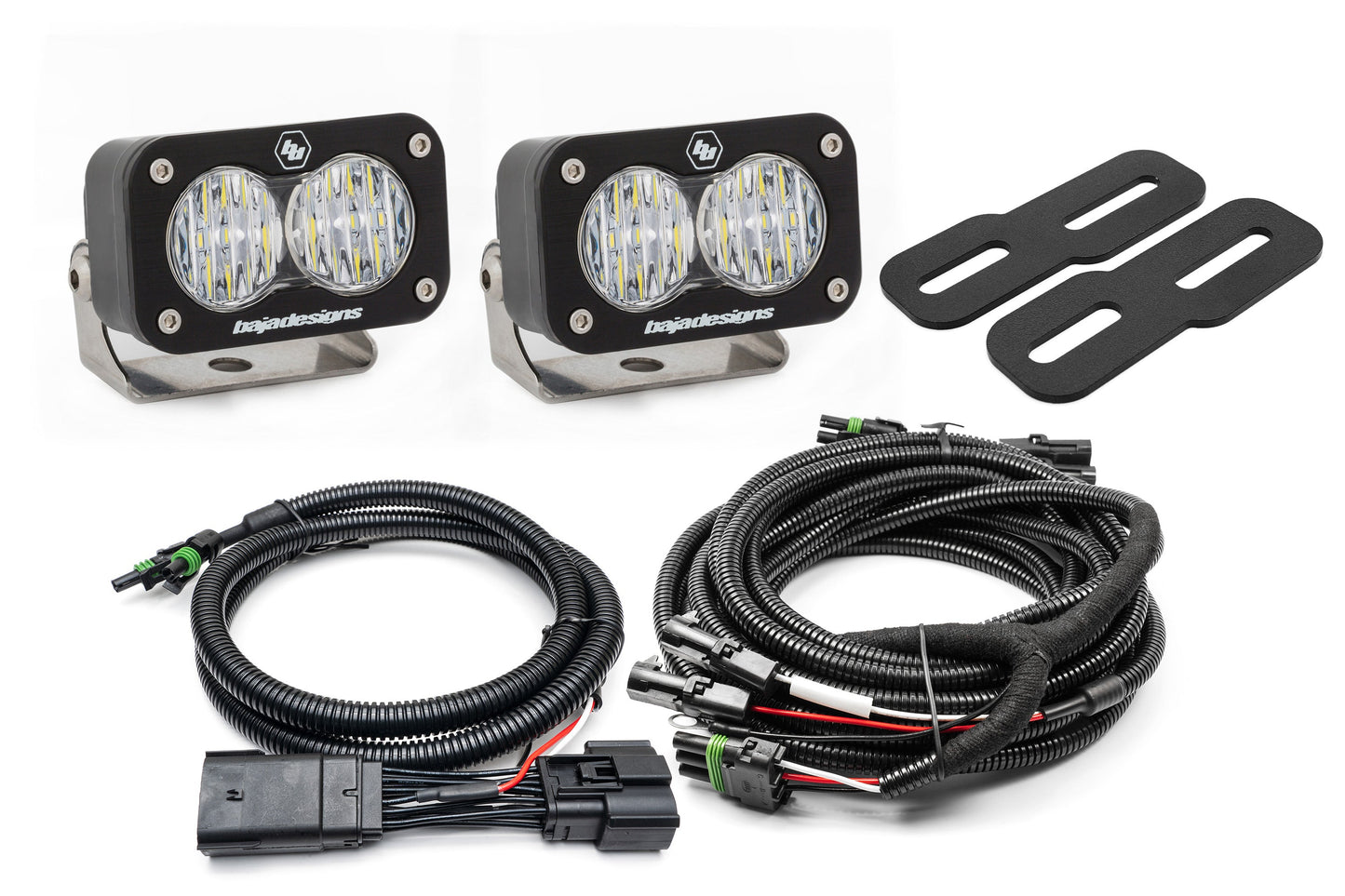

Each Ford Raptor Baja kit comes with everything you need...

• One Pair of Baja Designs S1 or S2 Sport or Pro Wide Cornering Lights #387805, #547805 or 487805
• SPV Parts Exclusive Rear Brackets Hardware
• CHOICE of 3 Harness Configurations:

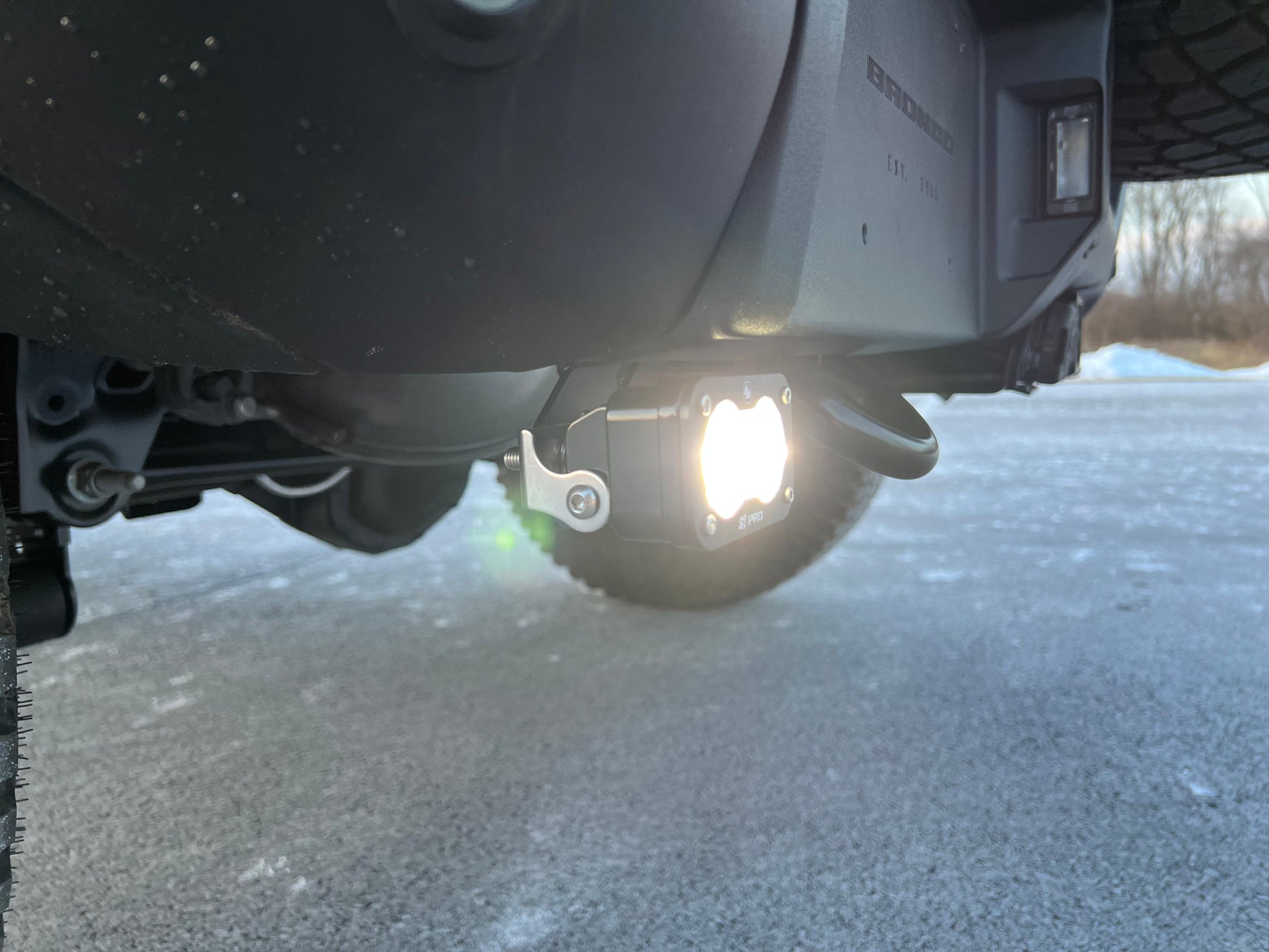

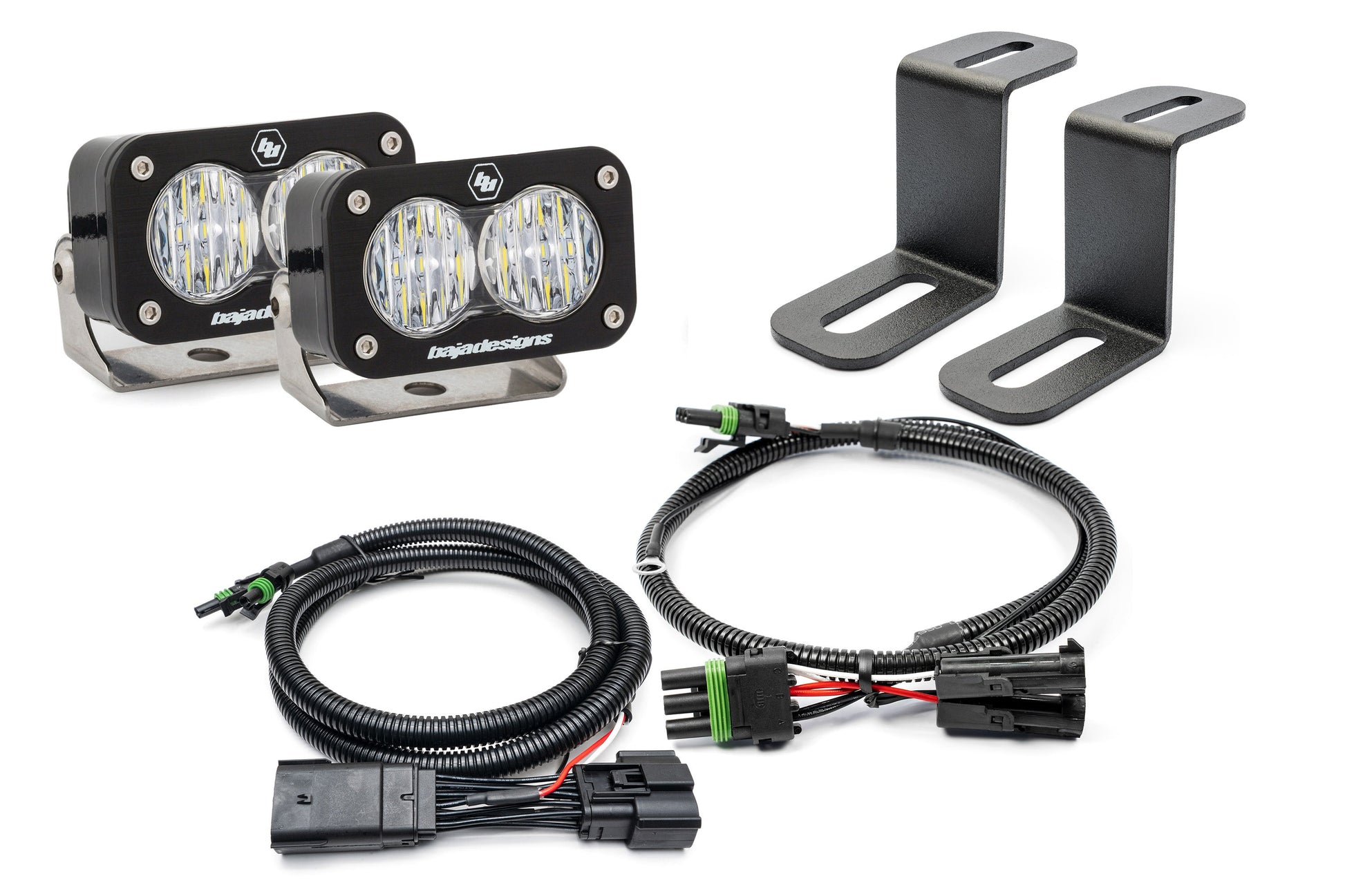

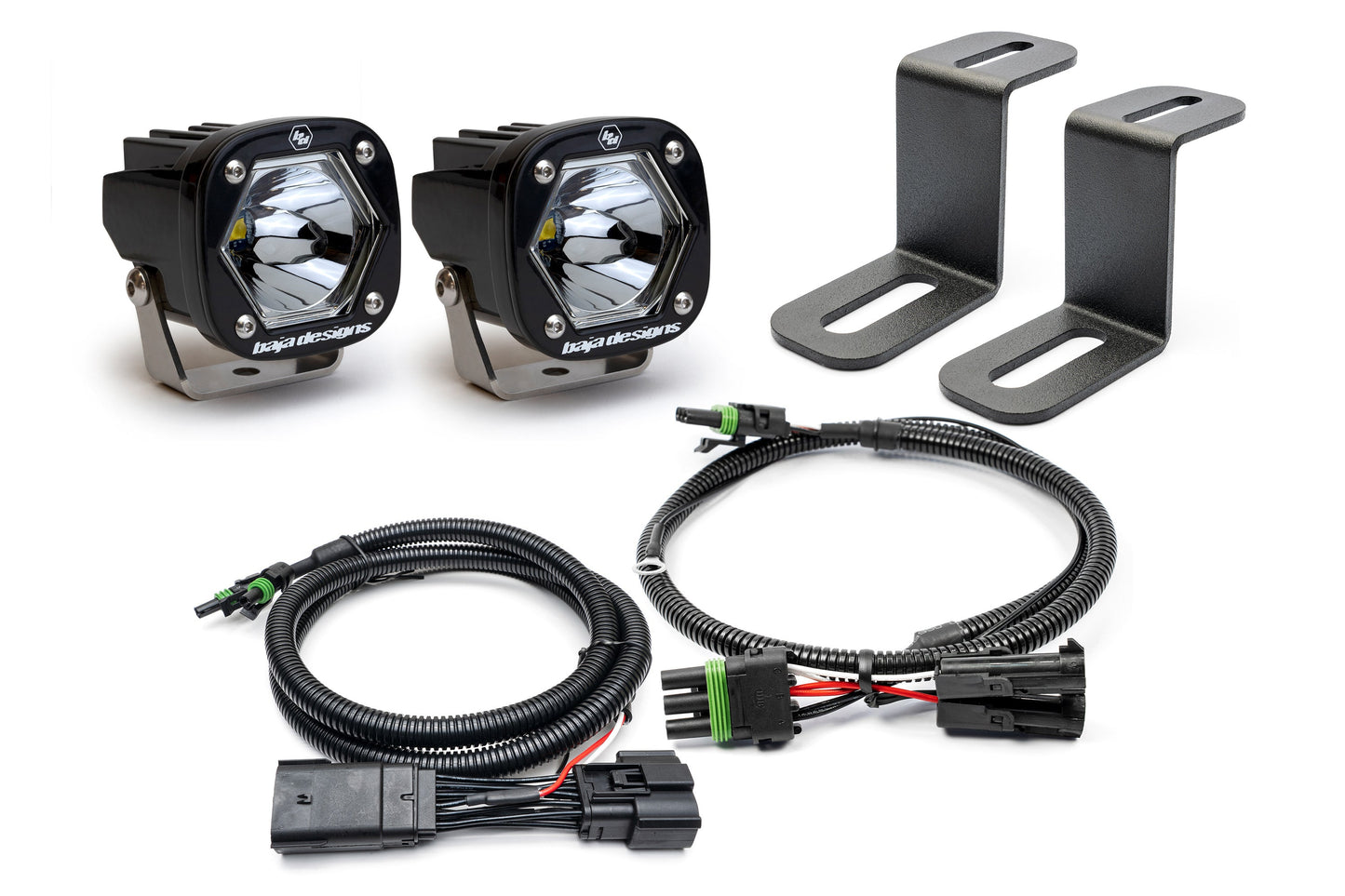

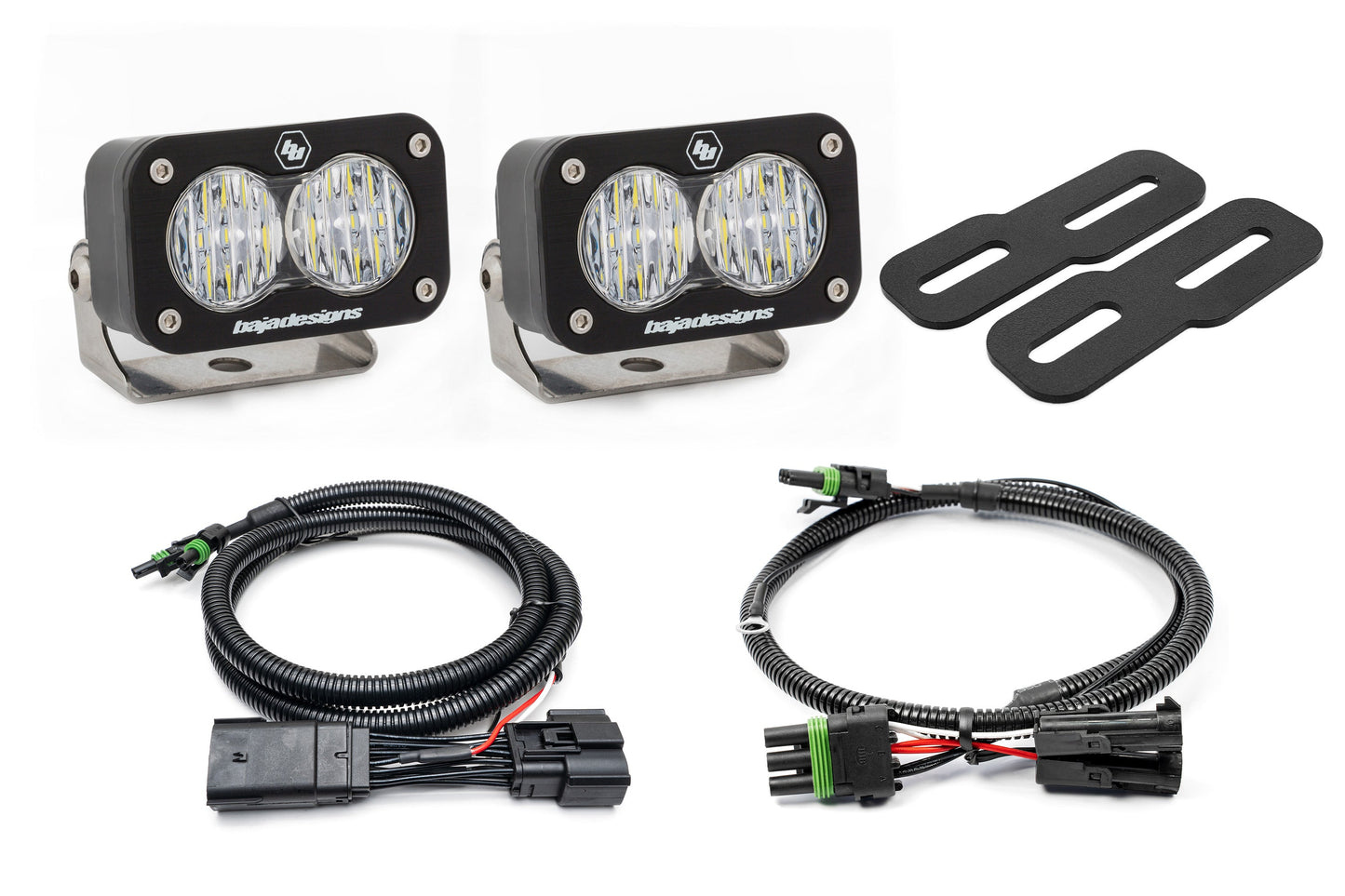

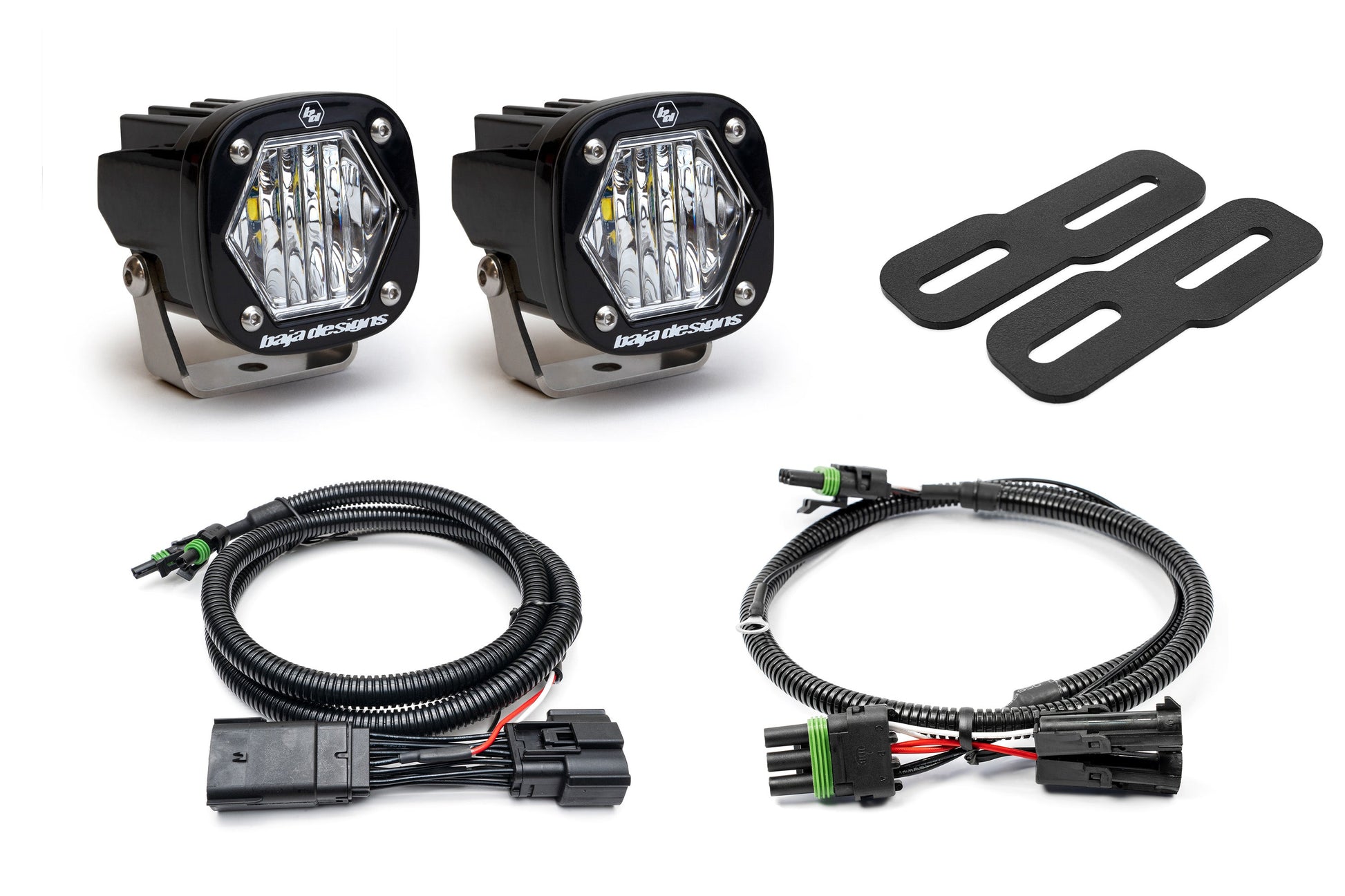

  1: Standard Short Harness with Tail Light Adapter.... Plug N Play. Automatically triggers the rear lights when put in reverse, triggers the red backlight when tail lights/markers are on.

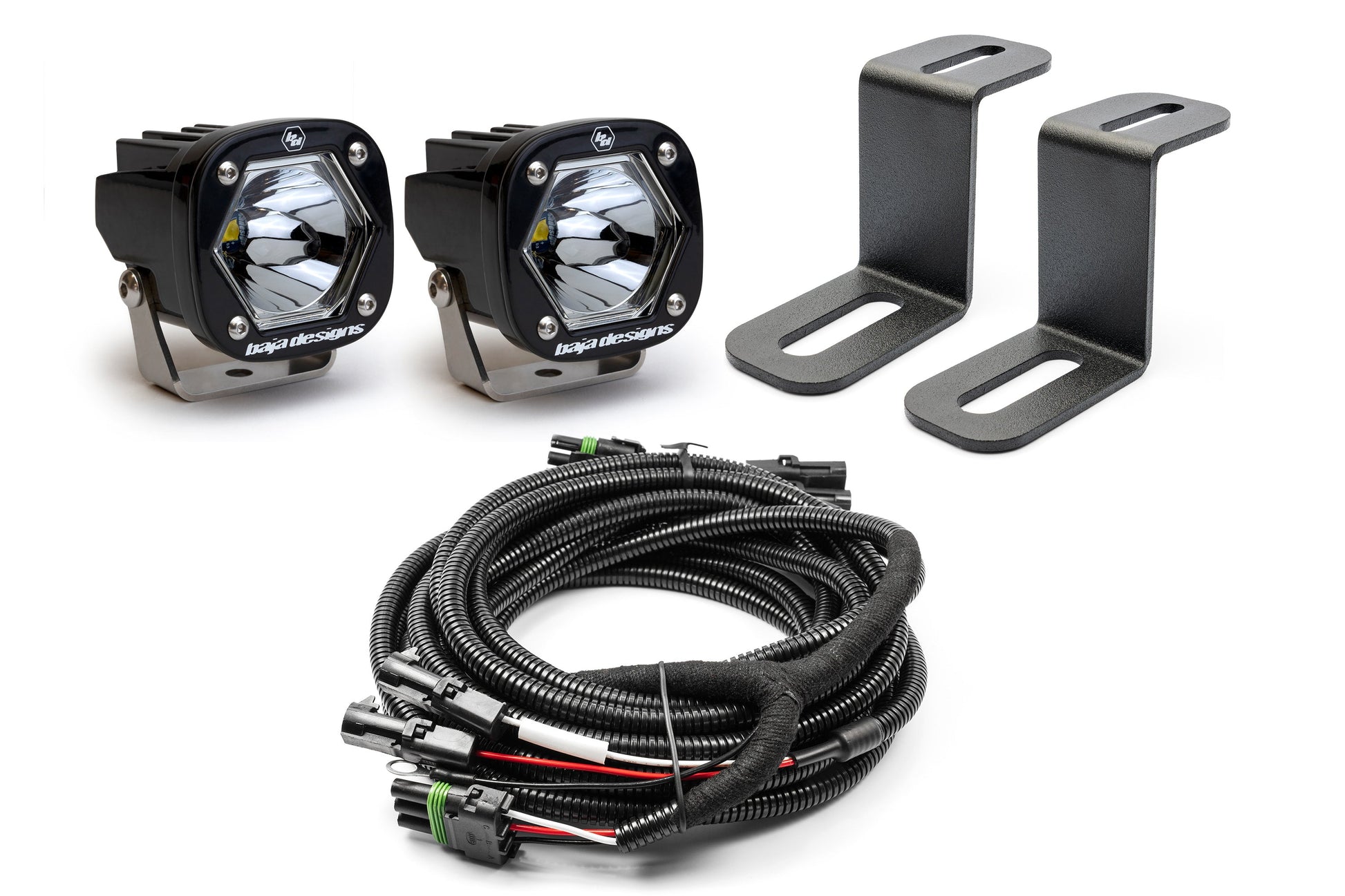

  2: One full length wire harness ONLY (Without Tail Light Trigger Adapter).... This runs all the way to the engine bay and INCLUDES our Plug N Play Relay Adapter. From there, you can connect it to any single switch wire from in the cab. Look for our other switch options.

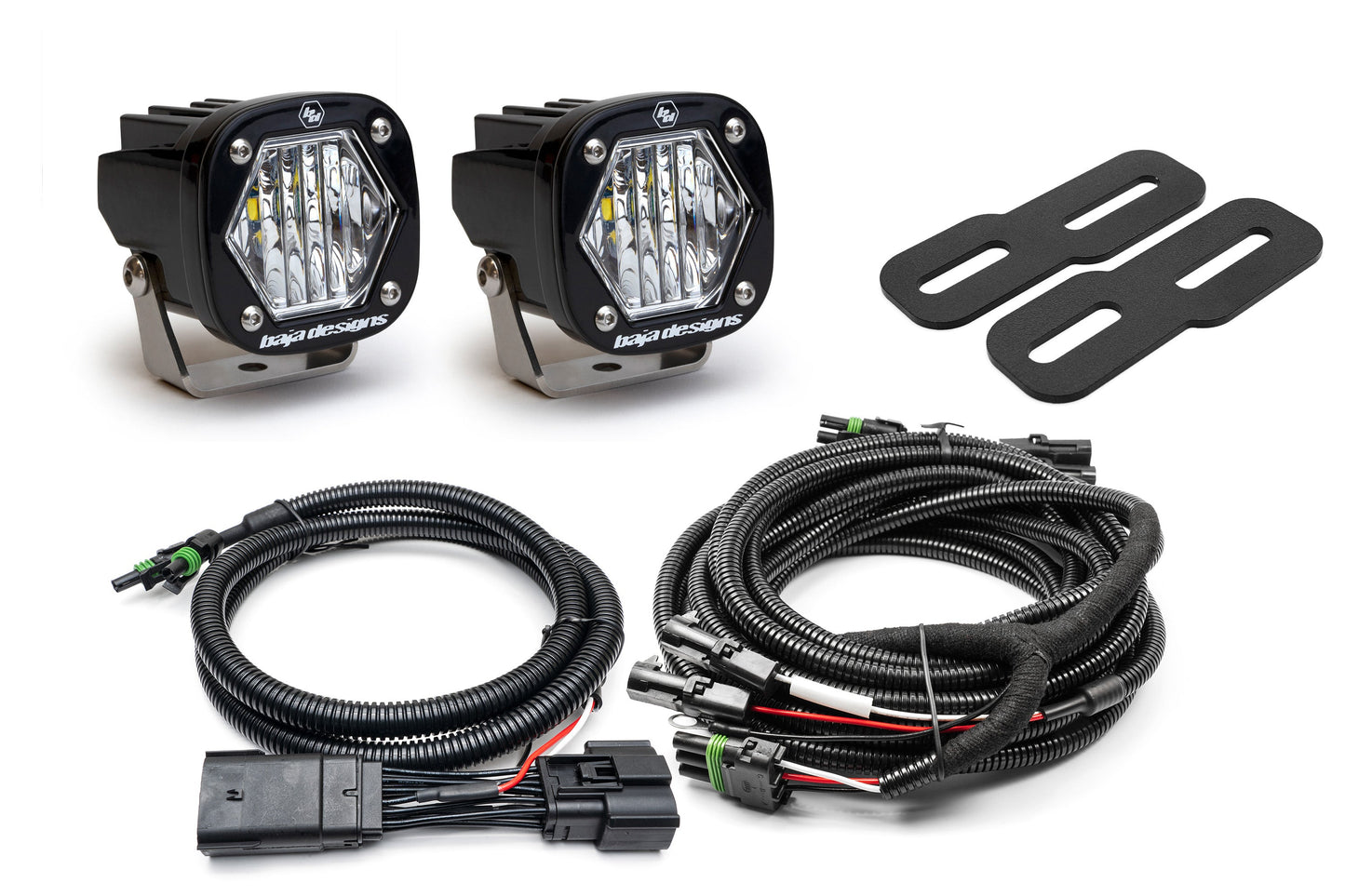

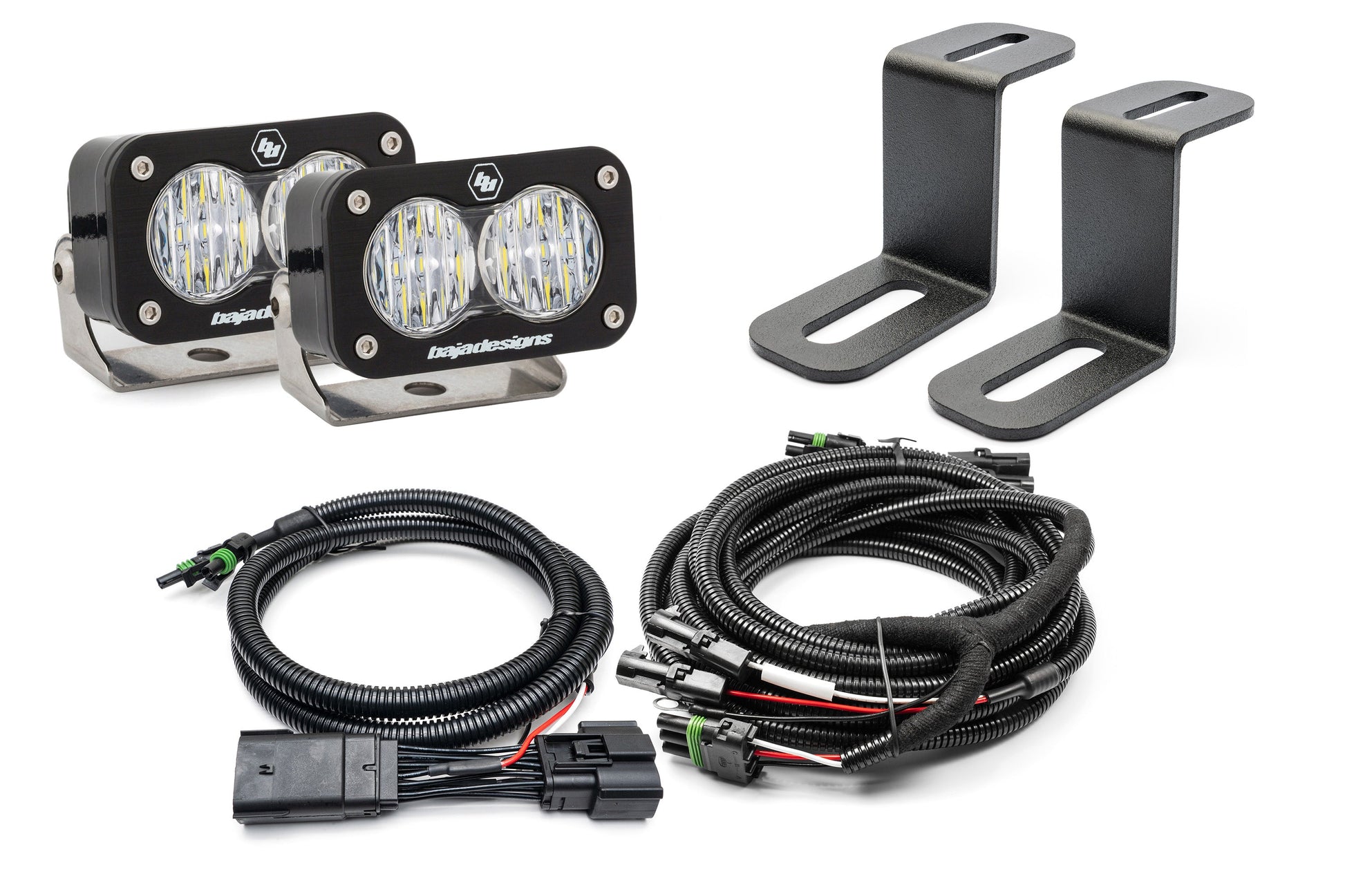

  3: Utilize BOTH the full harness to connect to a switch AND the tail light adapter. (Also includes the relay adapter) This will still trigger when in reverse, but also be capable of connecting to a separate switch in the cab. (Pat Pending)
• Instructions

CLEAR ADVANTAGES OVER THE STANDARD BAJA REVERSE LIGHT KIT-

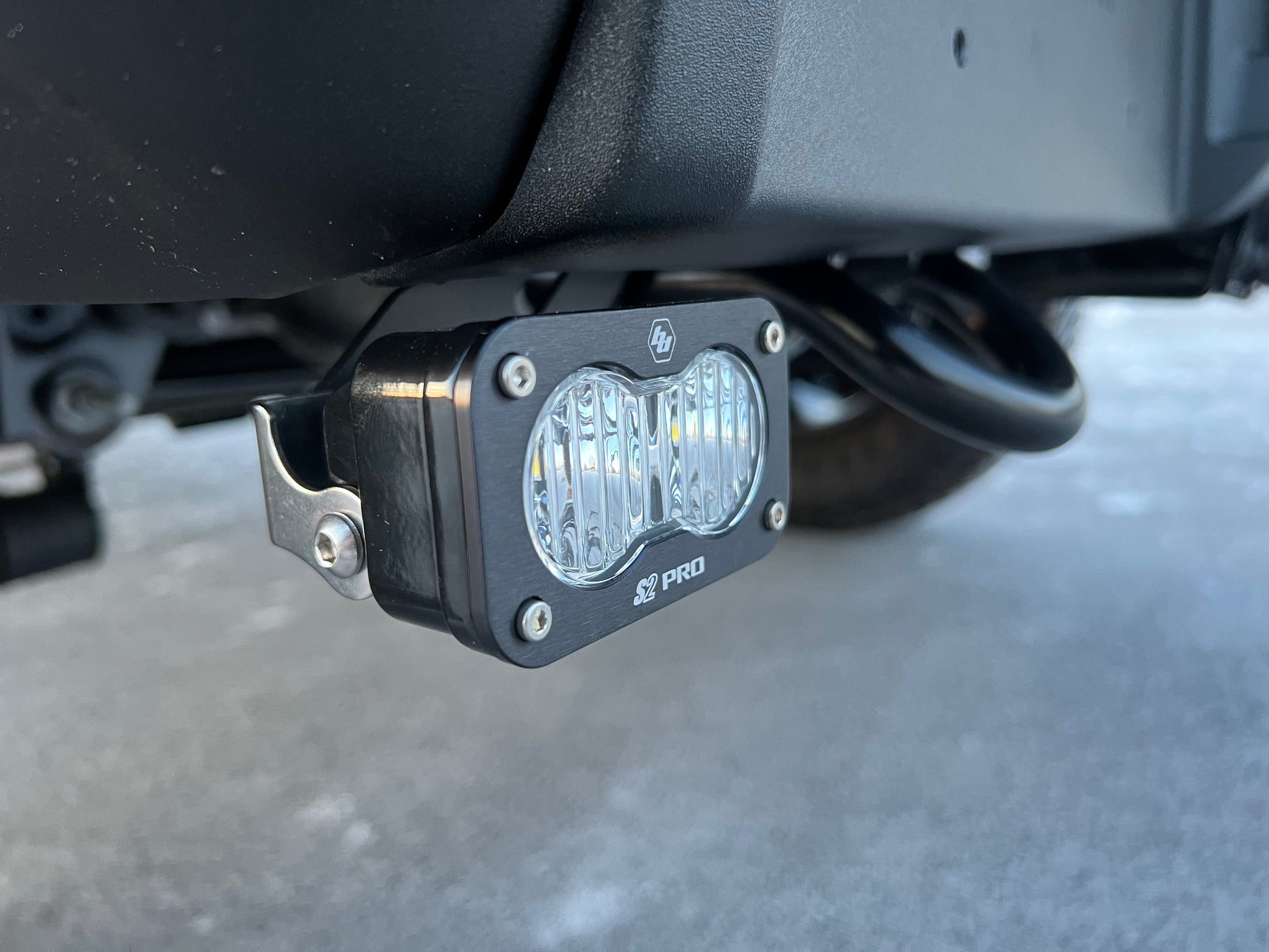

• Your CHOICE between the 1130 Lumen S2 Sport (Which come in the Baja kit #447558) or the PRO version with 2,450 Lumens, which ISN'T available in the Baja branded Kit. Or the 2,375 Lumen S1.
• The Baja Standard kit requires splicing/tapping into your factory Harness for the reverse trigger. Most don't want to do that. Our kit comes with 3 configurations. All of which require ZERO cutting or splicing into factory harnesses.
• Reverse triggers use our plug n play tail light adapter. It plugs into your tail light and then into the rear light harness. All plug n play. All options listed above require zero modification of any factory wiring.

Let us know if you have any questions and be sure to check back for more products coming soon!
