SPV Parts 2021+ Ford Raptor S8 & ONY6 40" Bumper Light Bar Kit

NOTE: 2024 Models. These fit the 2024 models with the 35 package. They don't fit the new Modular Bumper on the R model or 37 Package. We will have new mounts for those soon.

IN-STOCK & SHIPPING NOW!!!

Alright, get excited! Now you can skip buying heavy aftermarket bumpers just to mount a Light Bar to your Raptor! The New Raptor Bumper Mounts allow you to mount a 40-inch Light Bar to your Raptor.

Big heavy bumpers are susceptible to rust, and the added 200-300lbs WILL change the handling of your truck. Think of driving on a winding road with a snowplow on the front of your truck... Problem solved with our premium no drill mount kits

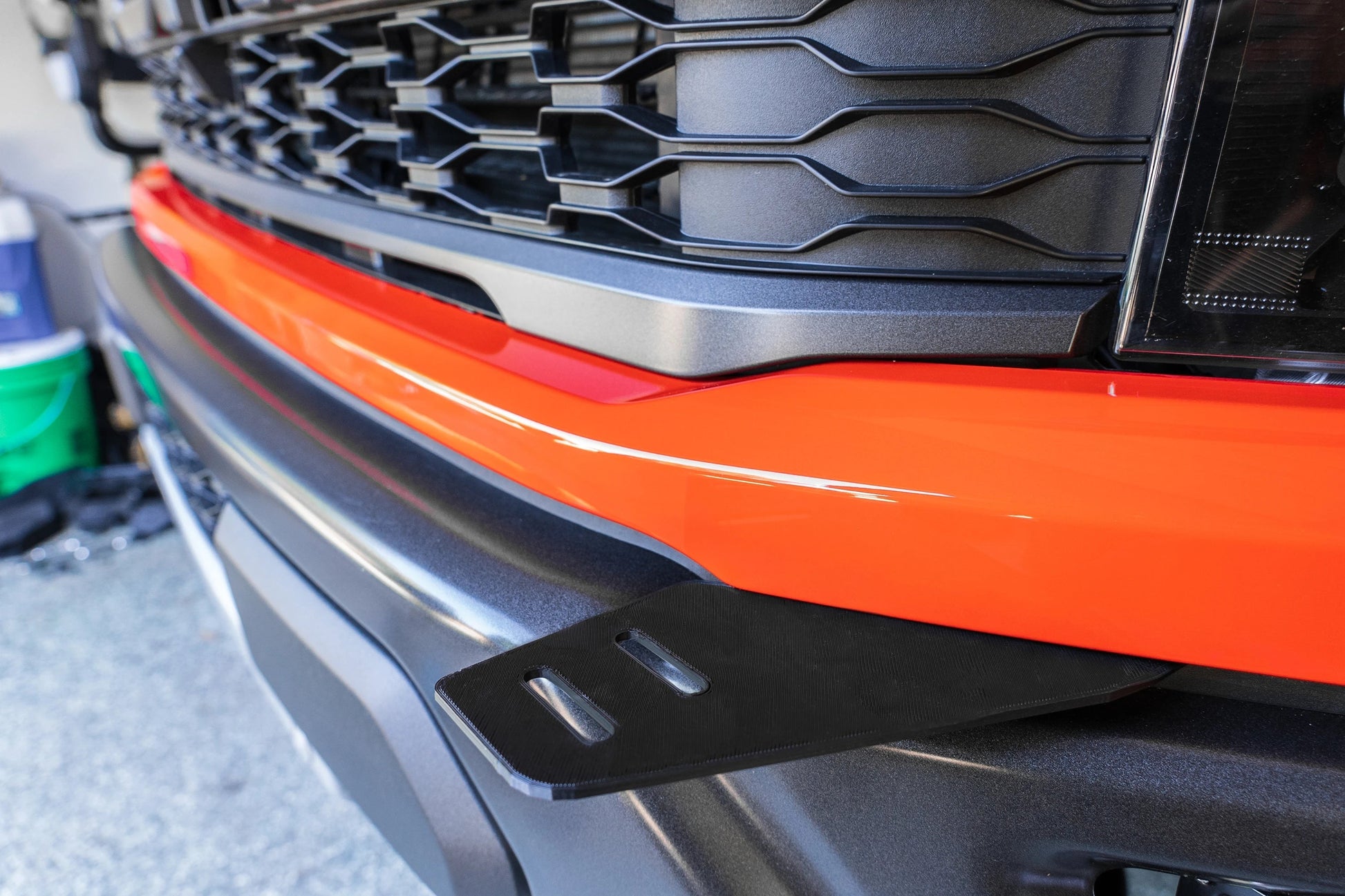

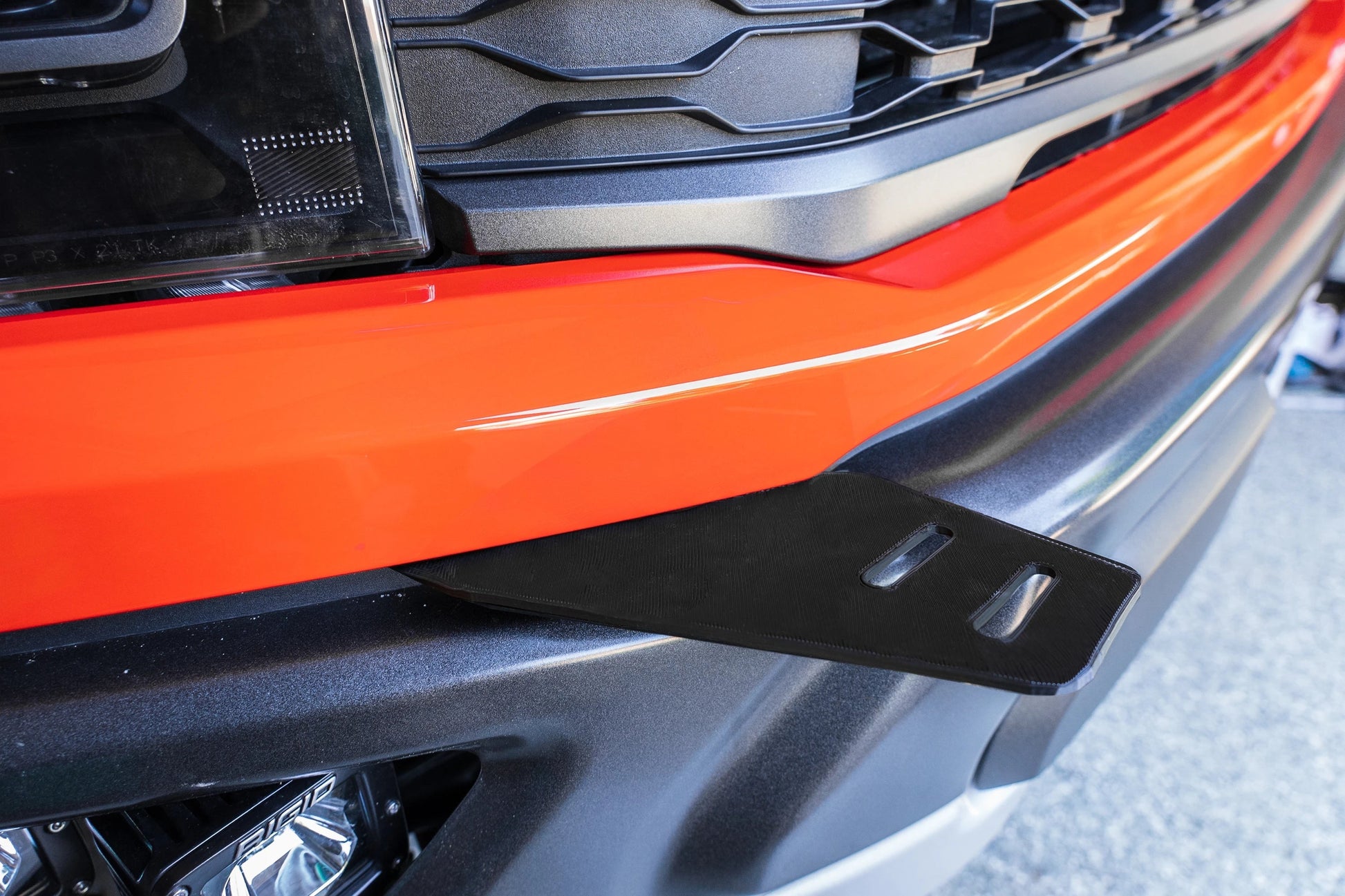

Our Main Bumper Mounts are a THICK 7 Gauge Stainless Steel. Almost 1/4 inch thick for heavy weight from those big bars! The Post Mounts for Light Bars are 11 Gauge Stainless Steel as well.

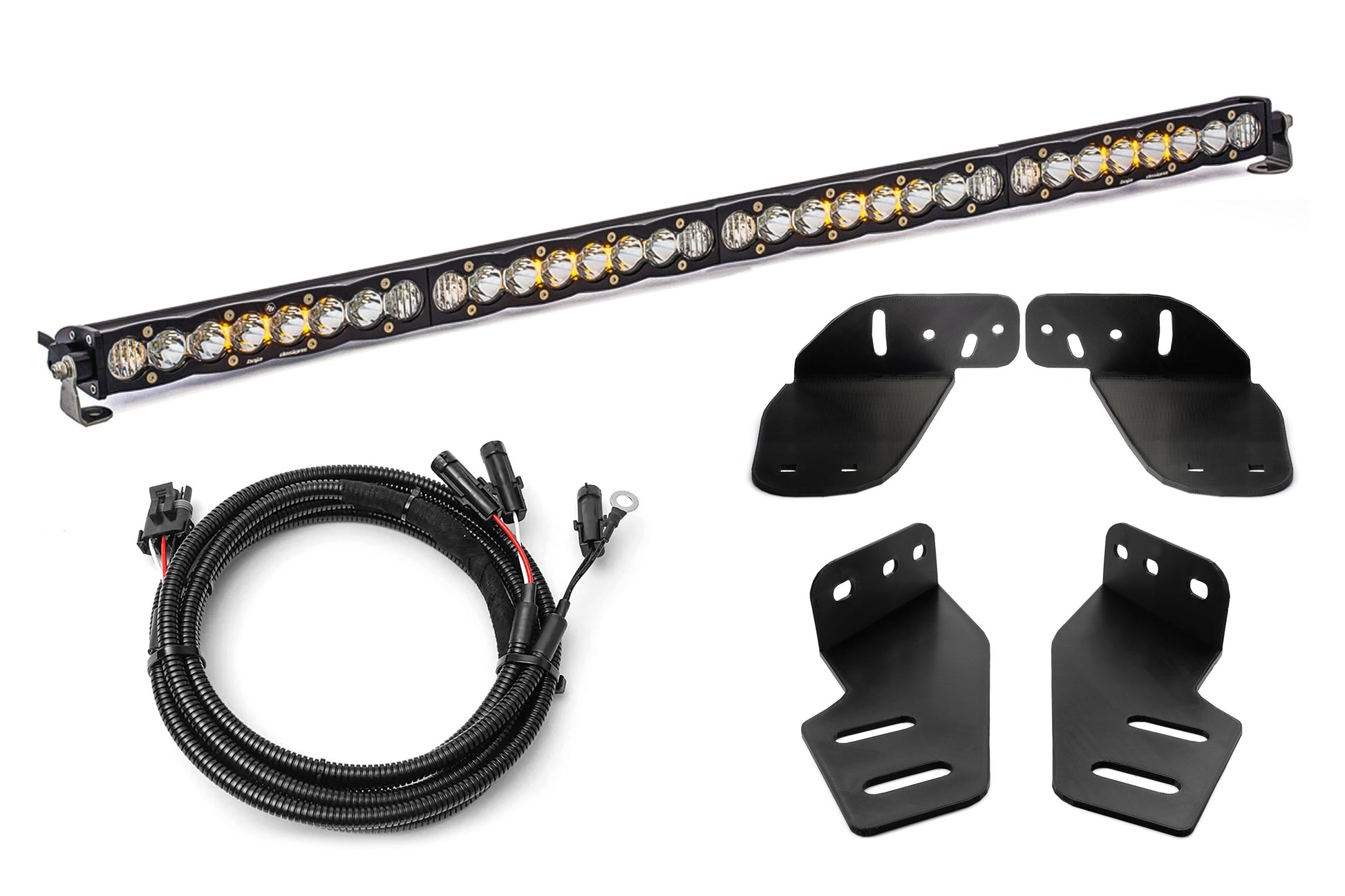

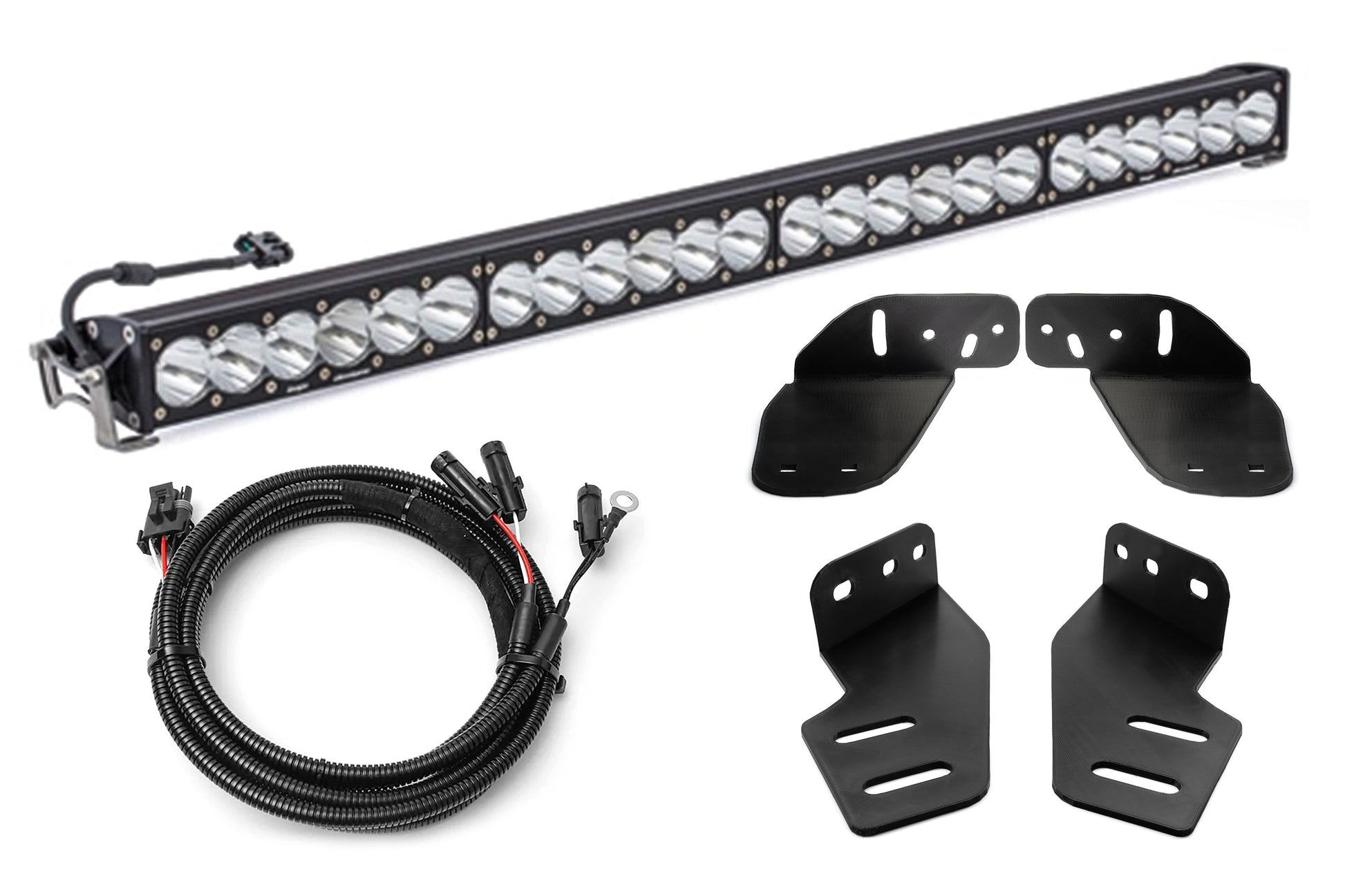

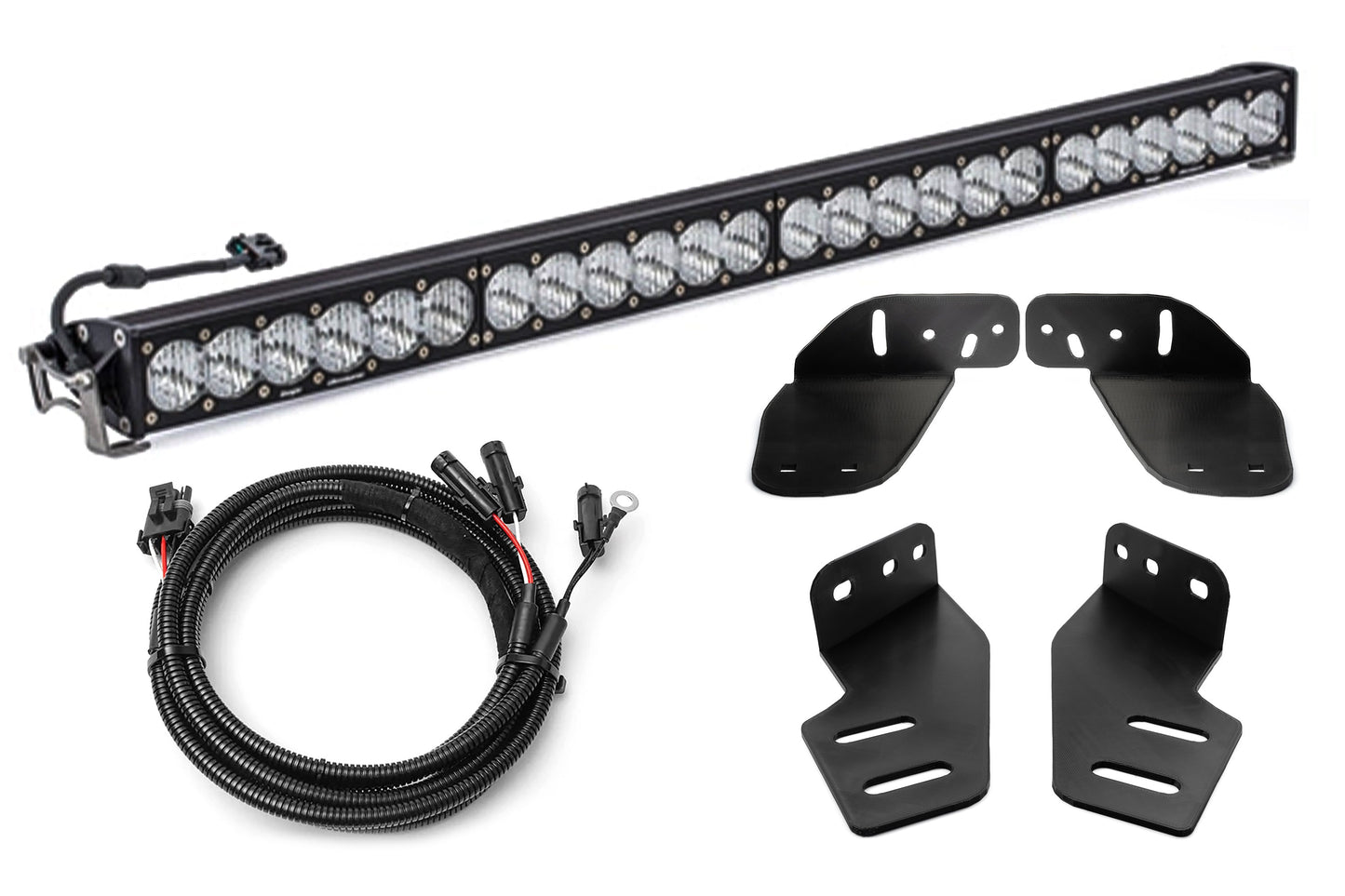

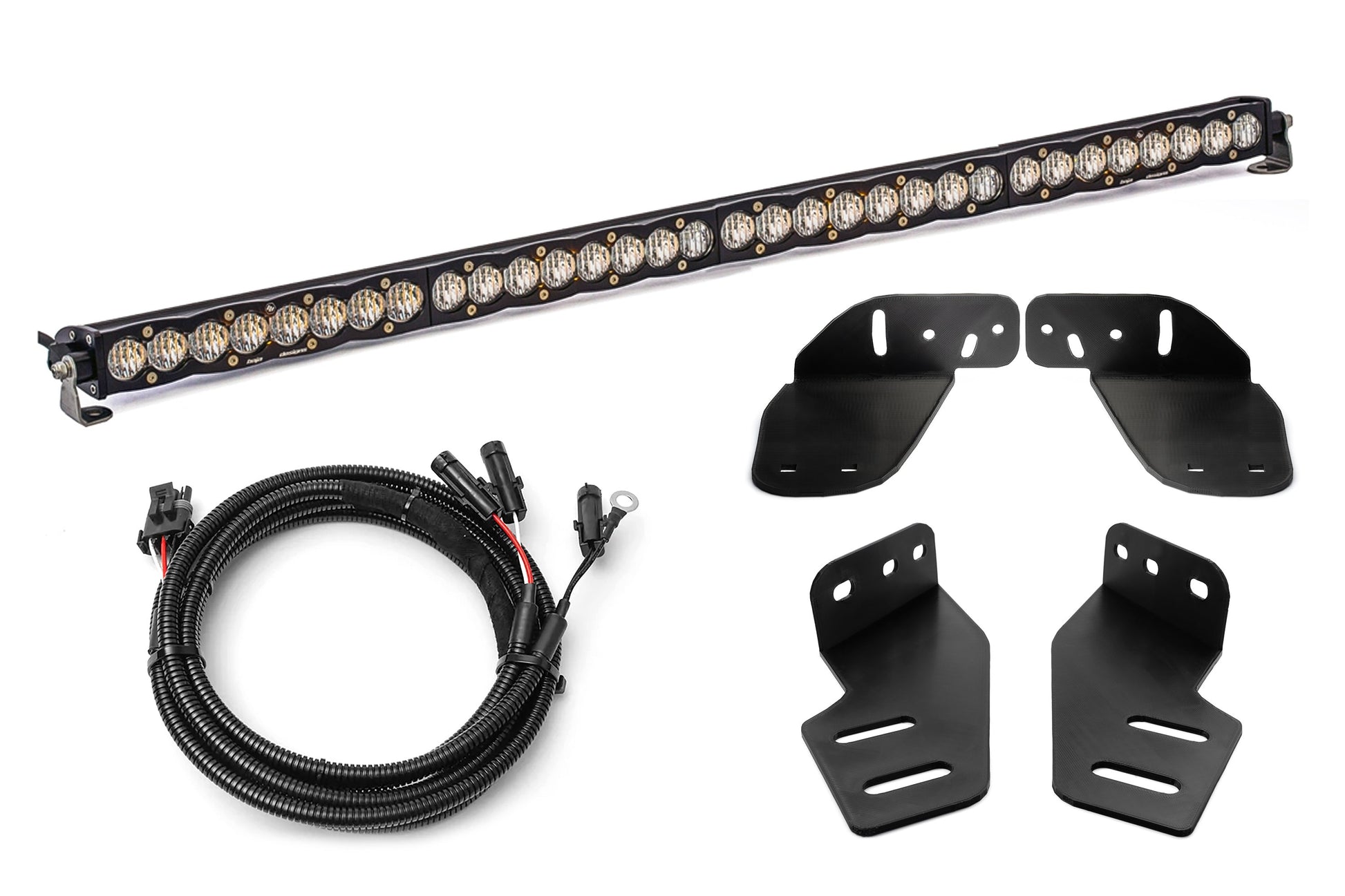

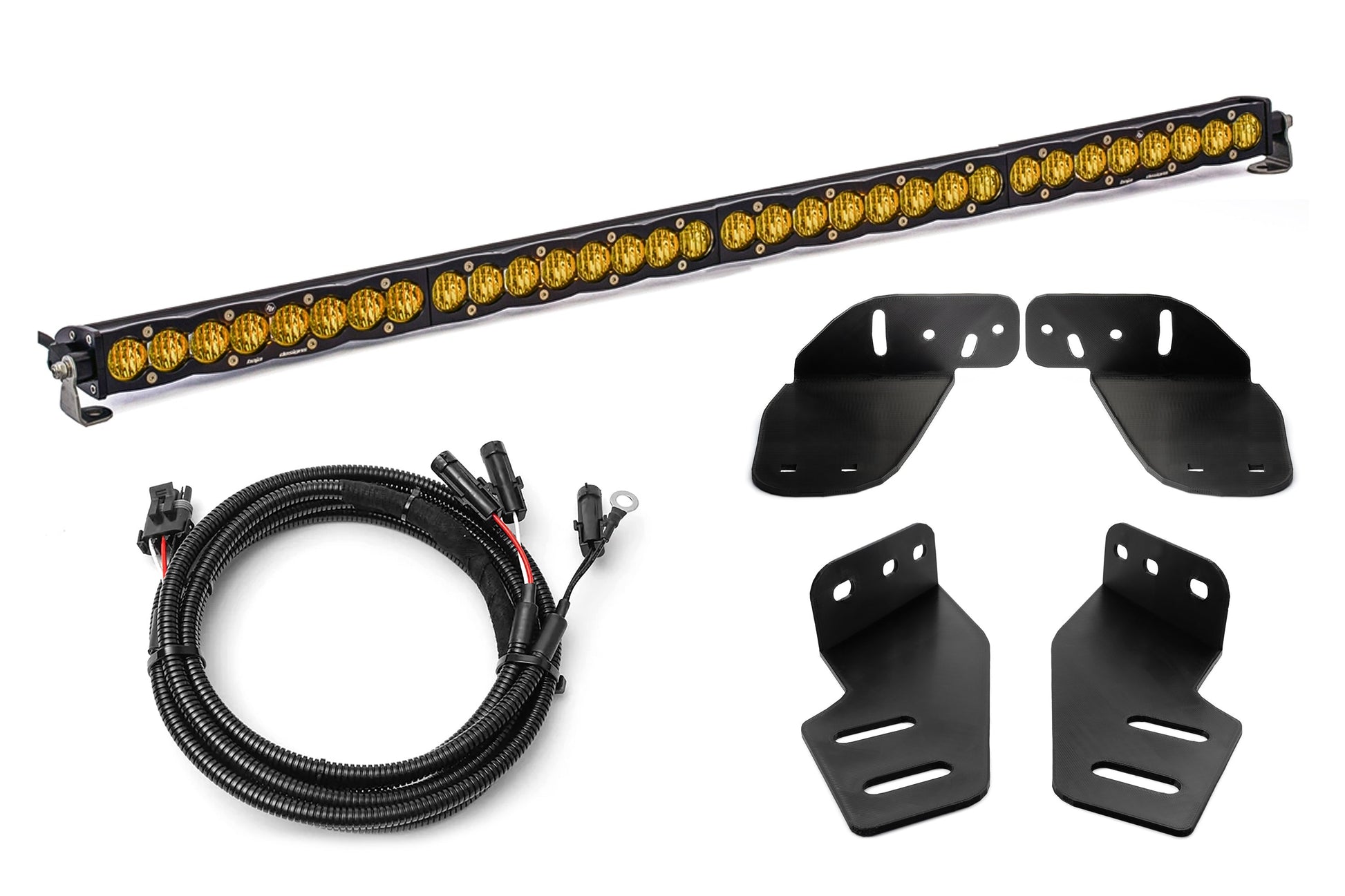

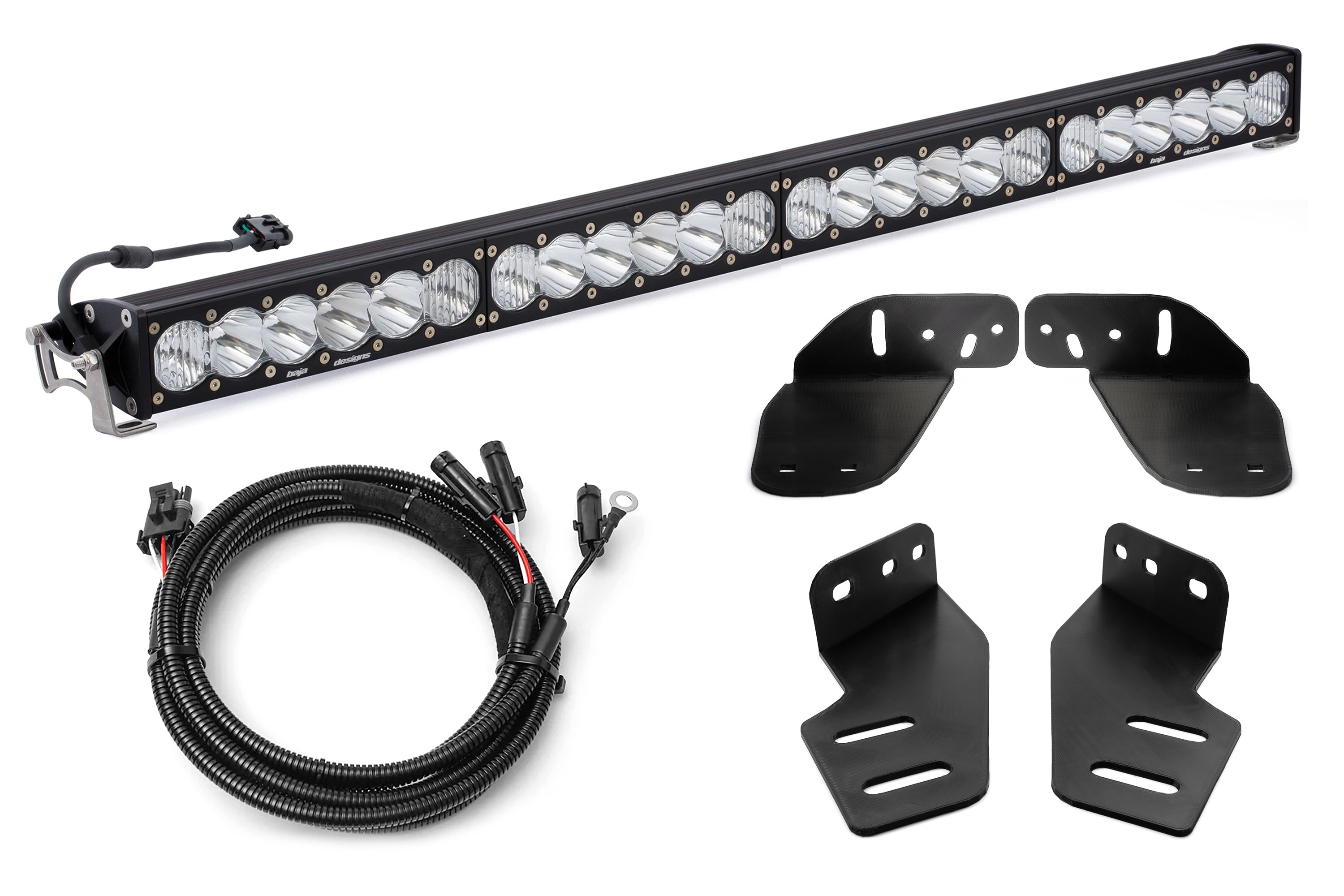

Kit includes:

• 2 Main no drill bumper mounts, 2 Light Bar top Mounts and Hardware.
• Choice of Baja S8 or ONX6+ Series 40" Light bar
• SPV Parts Plug-and-Play Harness

Choosing the right light bar for YOU...

The main difference between the 2 light bars physically, is that the S8 is about 1/2 as tall as the ONX6. However, it also has 1/2 the total light output.

The S8 on the other hand has an amber backlight for that cool effect. This can be tied into the parking marker light circuit with our optional Marker Adapter. Look for it under the "Add to Cart" button.

Detailed Light Specifications-

40-inch ONX6 Light Bars

• Part # 454001 Spot, 454003 Combo, 454004 Wide, 454013 Amber Combo, 454014 Amber Wide
• Weight - 15.05
• Optics - Spot, Combo, Wide Cornering, Work/Scene, Amber Combo, Amber Wide Cornering
• Watts - 346
• Amp Draw - 26.8
• Voltage Max - 36
• Raw Lumens - 38,900

40-inch S8 Light Bars

• Part # 704001 Spot, 704003 Combo, 704004 Wide, 704006 Scene, 704013 Amber Combo, 704014 Amber Wide
• Weight - 8.65
• Optics - Spot, Combo, Wide Cornering, Work/Scene, Amber Combo, Amber Wide Cornering
• Watts - 240
• Amp Draw - 16
• Voltage Max - 36
• Raw Lumens - 25,400

Details For Baja Designs Light Bars

• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses and Optics
• ClearView – All the Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color

(NOTE: Light bars may partially block some of the lower half of the front camera. That is just typical with front mount light bars. The Cross mount can be used also as an alternative by pushing 4 big lights to the outer sides of the cross bar clearing the center if that concerns you. Or go with an SR Series low profile bar.)
