SPV Parts Harness 3 Foot Extension with 3 Pole Connectors (To Lights etc) - SPV Harness System

SPV Parts Harness 3 Foot Extension with 3 Pole Connectors (To Lights etc) - SPV Harness System

12-01-001

$20.69
$20.69 $24.99
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.
Up to 17% off

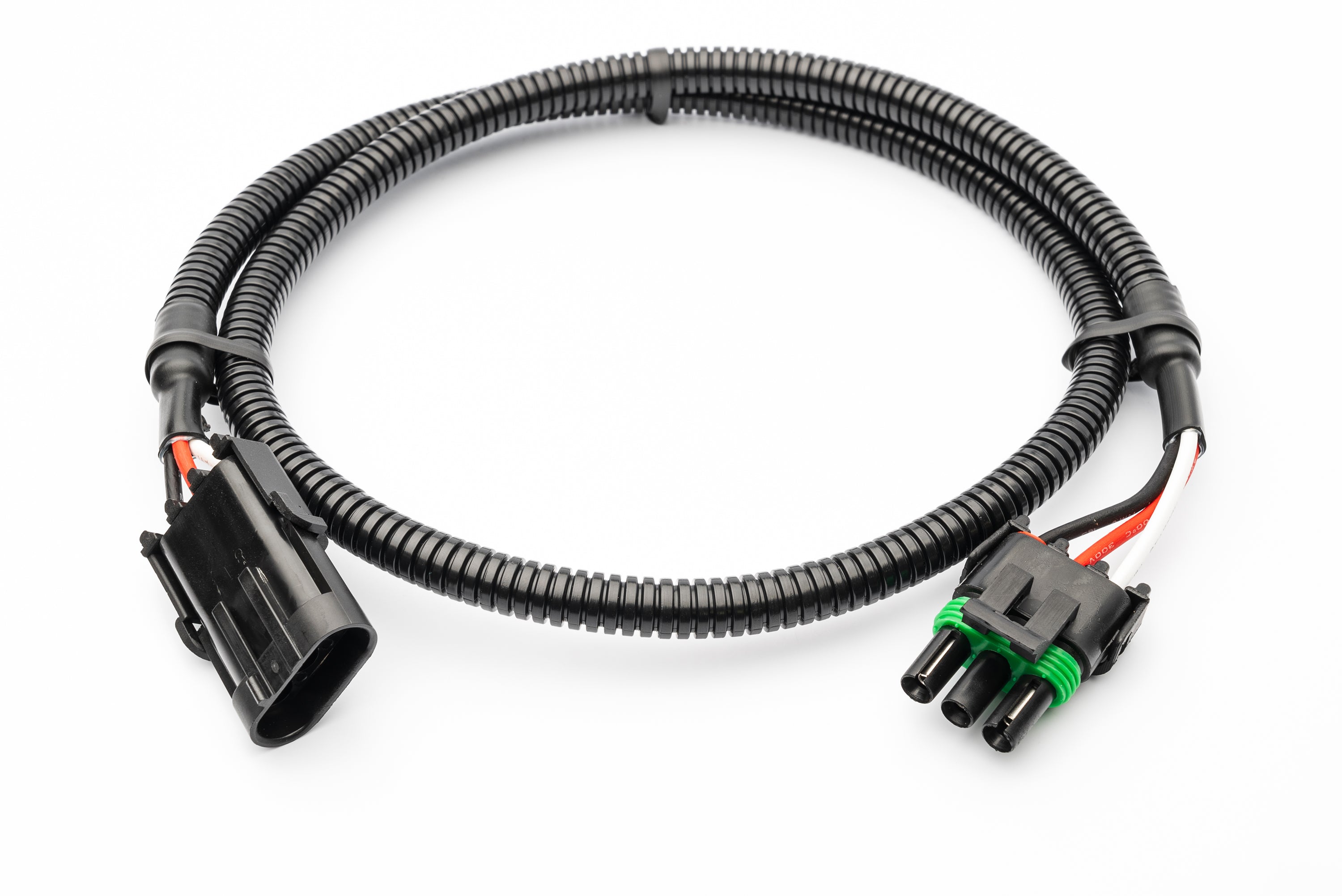

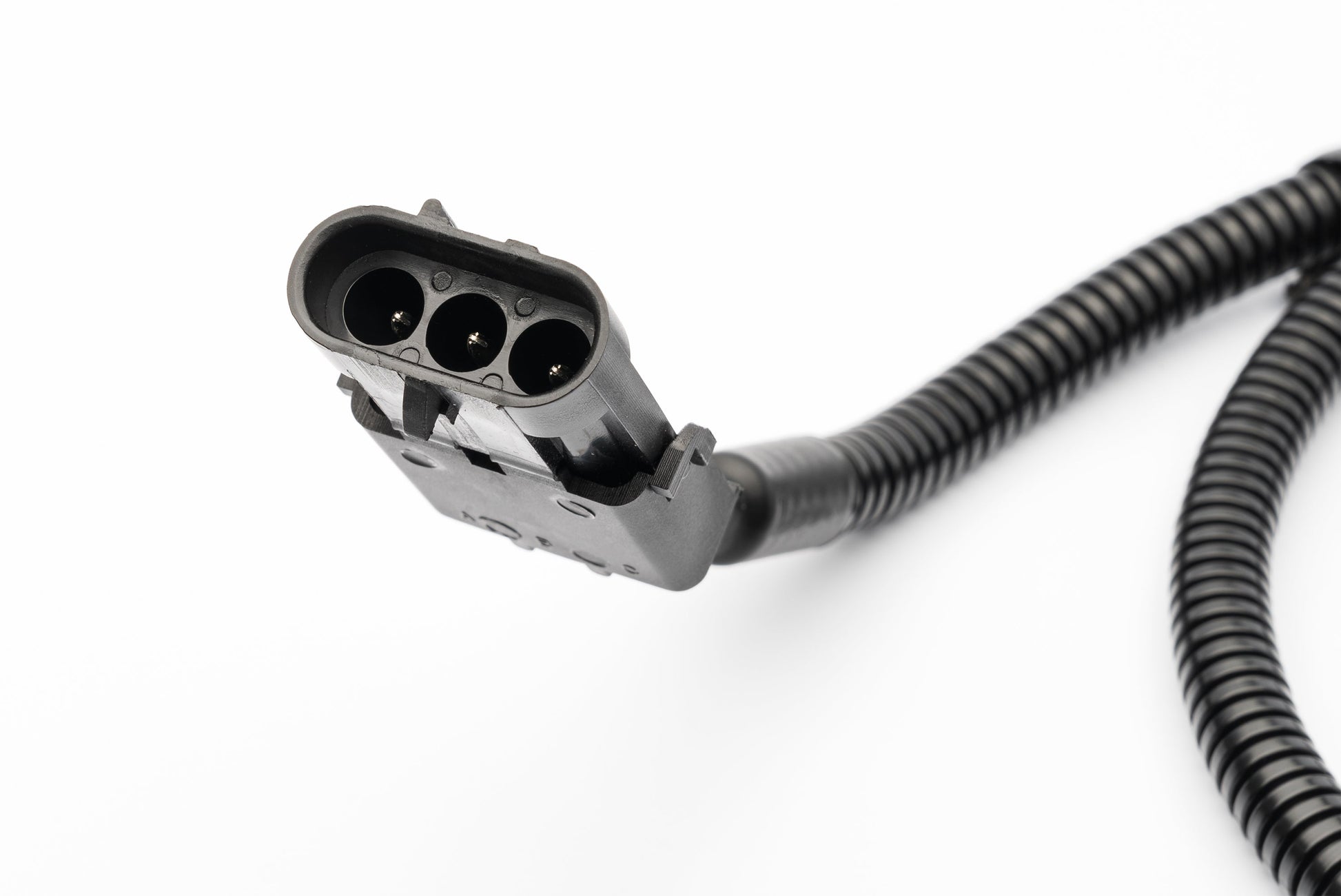

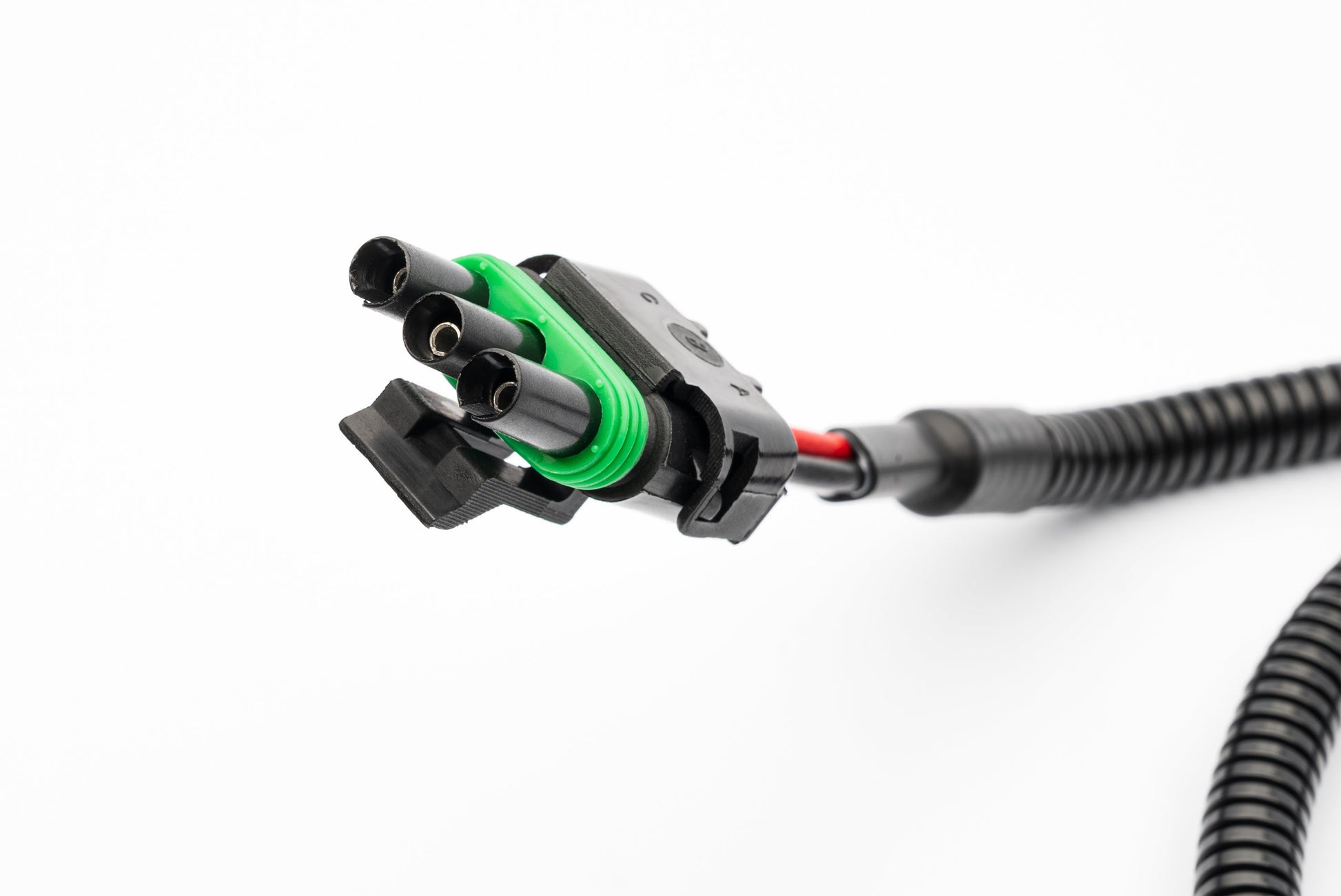

This 3 Foot Extension is designed to add to the SPV Harnesses at the light end or final connection.

If your harness is too short to reach the area you need to get to, this extension will add 3 foot of length to the end. If you need more length, you can stack multiples of these extensions to build your own custom setup (within constraints or amp draw and wire gauge see below for details). Simple Plug N Play

MAIN APPLICATION/DESCRIPTION-

Works all SPV Parts Plug N Play Harnesses

    NOTE: This 3 Foot Extension is 12AWG. 12AWG is good for up to 20 amps in most cases or just a tad more. The Weather Pack pins/connectors are also good up to 20 amps.

    If you need more than 20 amps on the ONE line, consider our 6 foot extension with 10AWG wire. If you need help, just reach out.

      Harness System Description-

      This harness is part of our UNIVERSAL harness system. Each harness can be used for virtually ANY vehicle and ANY lighting application with the use of our many adapters and modules. Each adapter or module will simply plug into the harness to fit virtually ANY light.
      For example, if you have any light such as Rigid Radiance, Scene, 360, or any other make and model WITHOUT connectors on the bare wires with the lights. You will simply add on the included matching connectors in the included kit.
      If you have lights WITH connectors on them, you just add the correct connector adaptor type. Some examples of connector adapters are- Rigid Pro Series lights or Single stage lights use DT connectors. Baja Designs (For the most part) use WP Connectors. If you have a 3 wire light (With the Amber/Multicolor background) you can use the included plug pack to either add to your lights 90% of the time, or your light will most likely already have the 3 way WP connectors on them, which will match to these harnesses.

      These harnesses also can be interconnected to other adapters from the system. Including Tail Light or Marker Light Trigger adapters to trigger reverse lights, marker lights to backlit lighting, etc.

      See other optional components to BUILD YOUR LIGHTING SYSTEM!!



      IMPORTANT!!!

      This Component is a stand alone harness that is all you will need in applications like the Ford F-150 Raptor, where you are connecting in to the vehicles BUILT IN RELAYS and FUSES. This harness is not FUSED and therefore, if you are connecting it direct to ANYTHING other than a fused circuit, you MUST connect our add on Relay/Fuse adaptor to protect your lights and vehicle from fire. We are NOT responsible for incorrectly installed equipment. If you have questions, please refer to the chart, instructions or reach out to us so we can guide you.

      Component of the SPV Harness System-

      PATENTED - US 11,699,537 B2
