SPV Parts Harness System 21 - 24 Toyota 4Runner Headlight Parking/Marker light Adapter (LED)

SPV Parts Harness System 21 - 24 Toyota 4Runner Headlight Parking/Marker light Adapter (LED)

14-06-006

$38.69
$38.69 $59.99
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.
Up to 36% off

Toyota 4Runner Headlight Parking/Marker light adapter. Adds power to Marker Lights and Backlights to things like Grille Marker Lights, Rigid Radiance or Diode Dynamics backlights and others.

Works great to power light kits like A-Pillar lights with backlights, Fogs or Lightbars with backlights.

This unit, similar to our Bronco Parking/Headlight adapter, and Raptor Marker adapter. It powers your Amber Backlights (and/or Red rear if you have a full length harness). However, this one does it from the headlight connector rather than the top of the grille where the Raptor connector goes.



MAIN APPLICATION/DESCRIPTION-

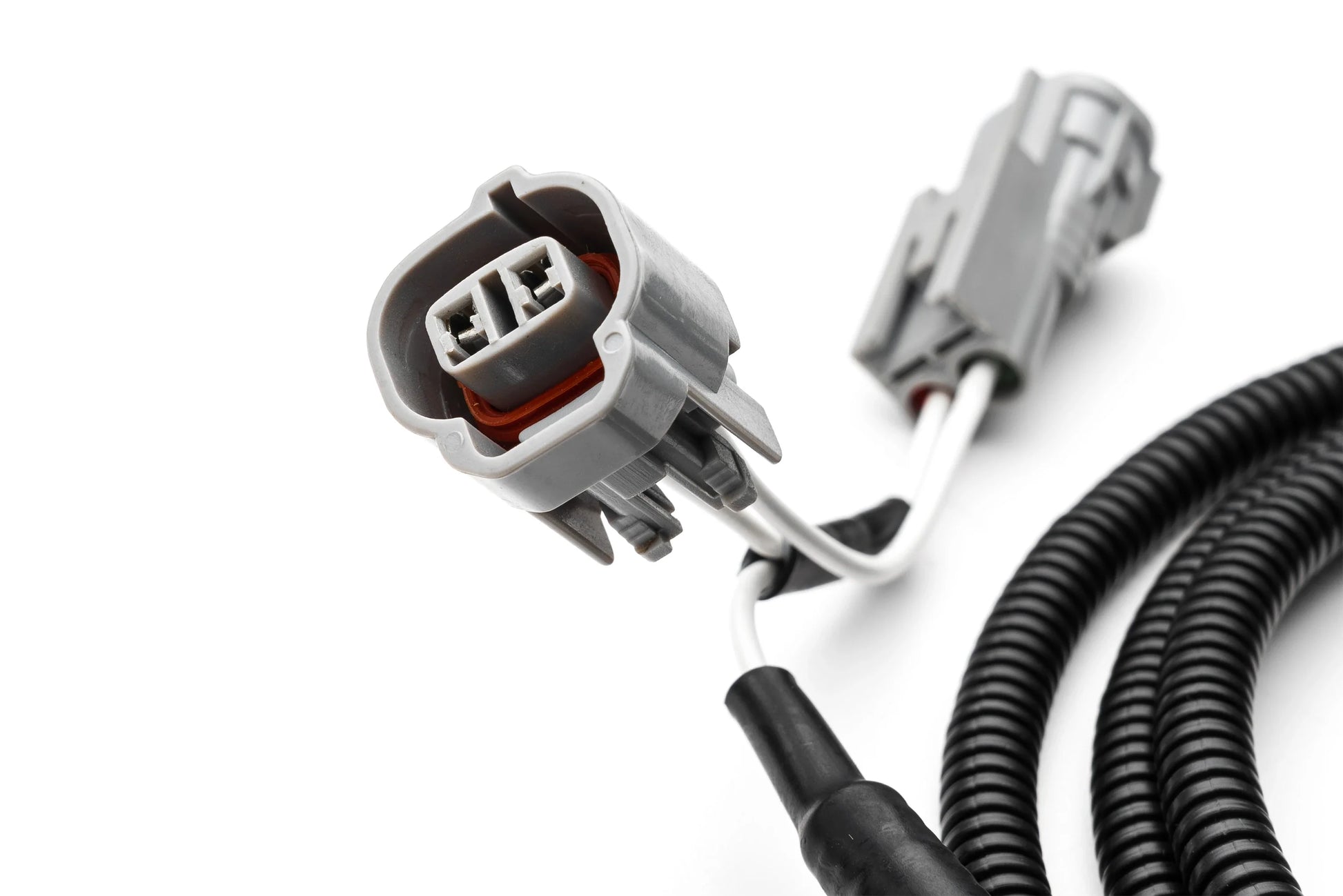

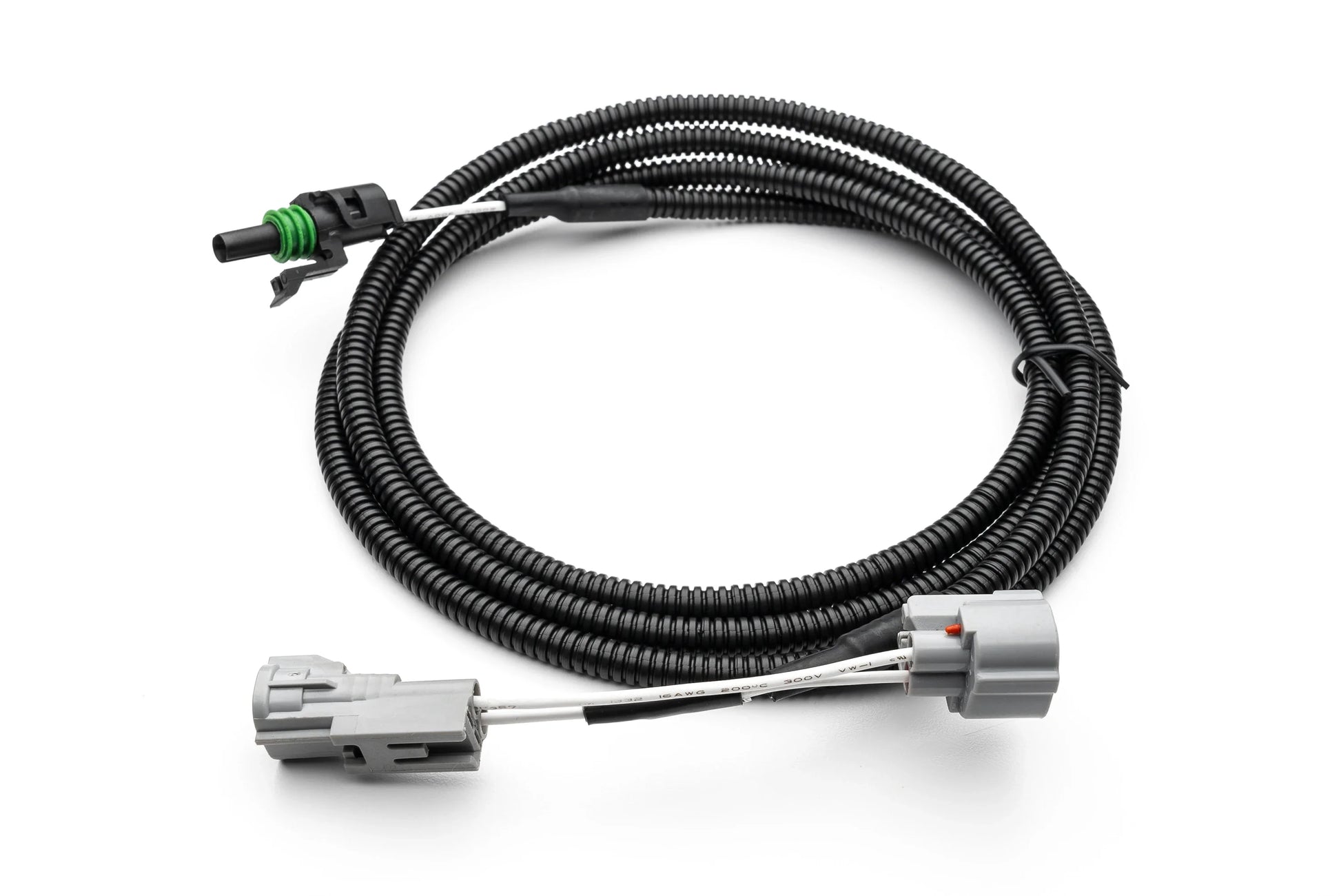

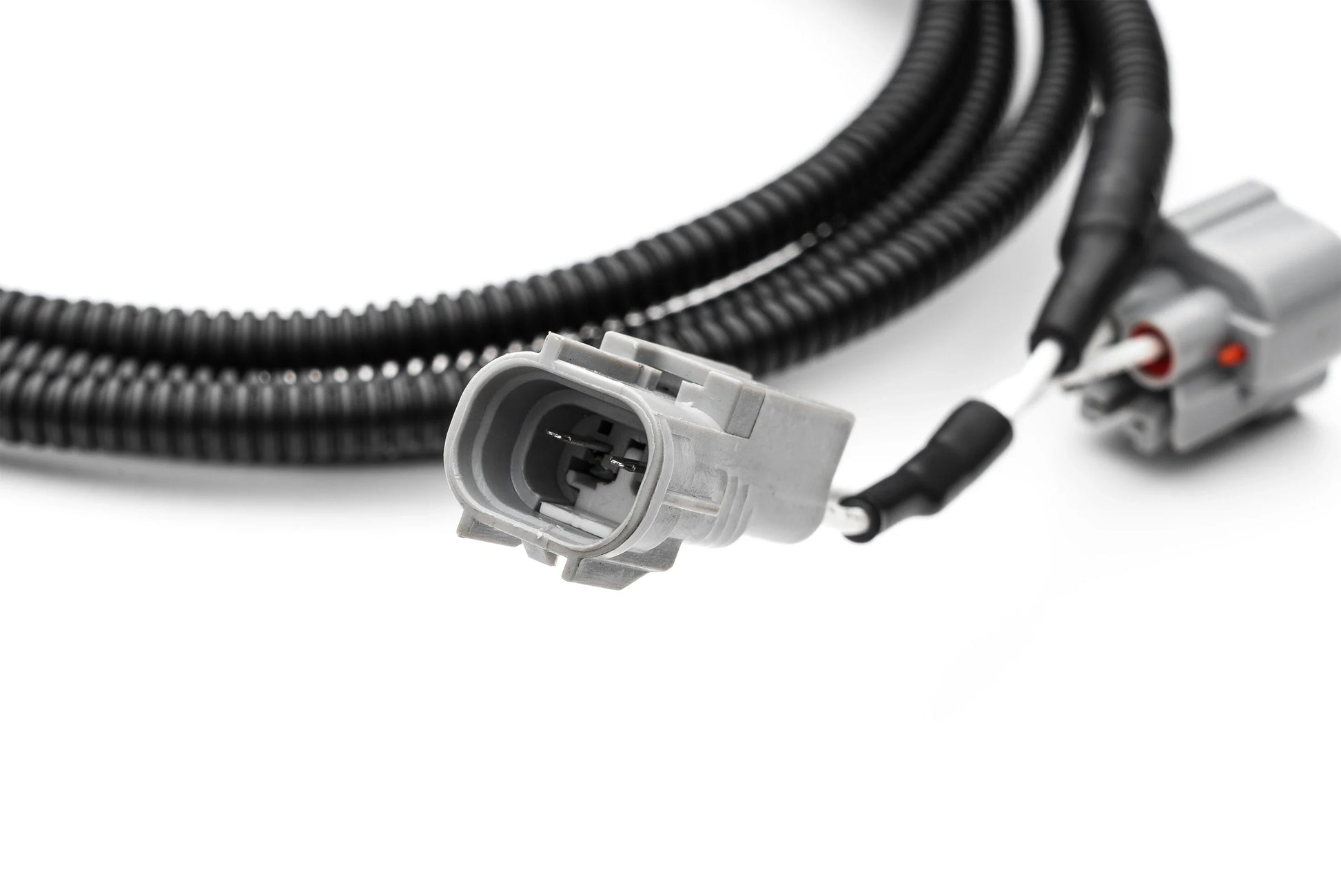

These add on adapters connect to the factory harness between the headlight. It simply plugs in between the factory harness and then connects to any of our Universal harnesses. This allows seamless integration of the factory markers/parking lights with Rigid (Such as Radiance) or other lights that have a secondary backlight. The backlights will then flash with the lock/unlock feature, open door feature, maker lights on, etc.



    Harness System Description-

    This harness is part of our UNIVERSAL harness system. Each harness can be used for virtually ANY vehicle and ANY lighting application with the use of our many adapters and modules. Each adapter or module will simply plug into the harness to fit virtually ANY light.


    For example, if you have any light such as Rigid Radiance, Scene, 360, or any other make and model WITHOUT connectors on the bare wires with the lights. You will simply add on the included matching connectors in the included kit.

    If you have lights WITH connectors on them, you just add the correct connector adaptor type. Some examples of connector adapters are- Rigid Pro Series lights or Single stage lights use DT connectors. Baja Designs (For the most part) use WP Connectors. If you have a 3 wire light (With the Amber/Multicolor background) you can use the included plug pack to either add to your lights 90% of the time, or your light will most likely already have the 3 way WP connectors on them, which will match to these harnesses.



    These harnesses also can be interconnected to other adapters from the system. Including Tail Light or Marker Light Trigger adapters to trigger reverse lights, marker lights to backlit lighting, etc.

    See other optional components to BUILD YOUR LIGHTING SYSTEM!!



    IMPORTANT!!!

    This Component is a stand alone harness that is all you will need in applications like the Ford F-150 Raptor, where you are connecting in to the vehicles BUILT IN RELAYS and FUSES. This harness is not FUSED and therefore, if you are connecting it direct to ANYTHING other than a fused circuit, you MUST connect our add on Relay/Fuse adaptor to protect your lights and vehicle from fire. We are NOT responsible for incorrectly installed equipment. If you have questions, please refer to the chart, instructions or reach out to us so we can guide you.

    Component of the SPV Harness System-

    PATENTED - US 11,699,537 B2


    ***Click Here for Basic Instructions***

    ***Click Here for Data & Use Sheet***
