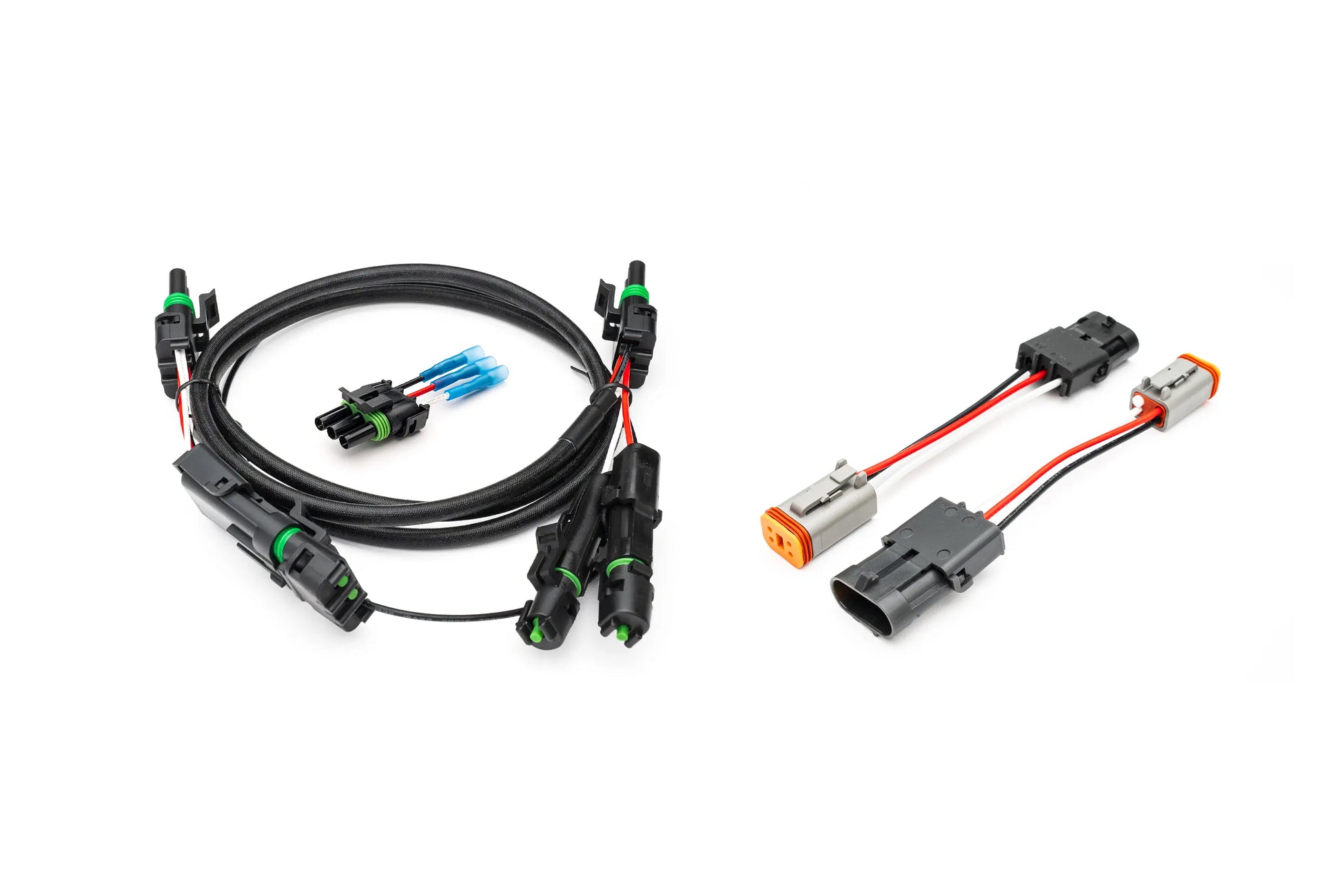

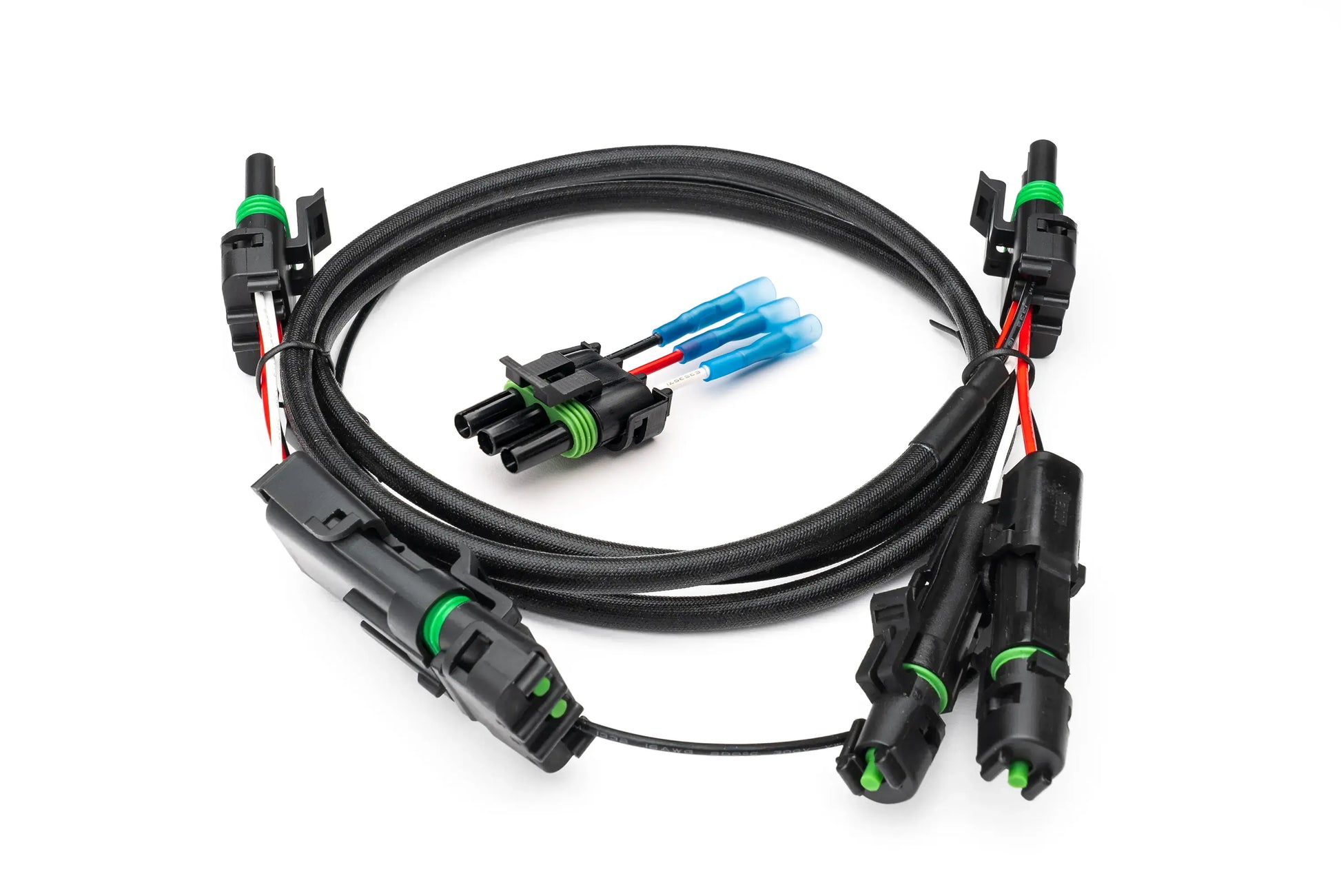

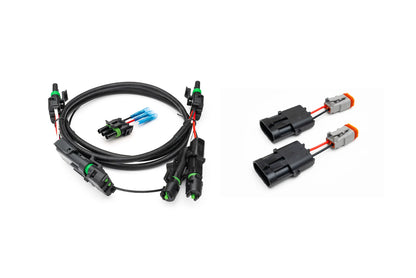

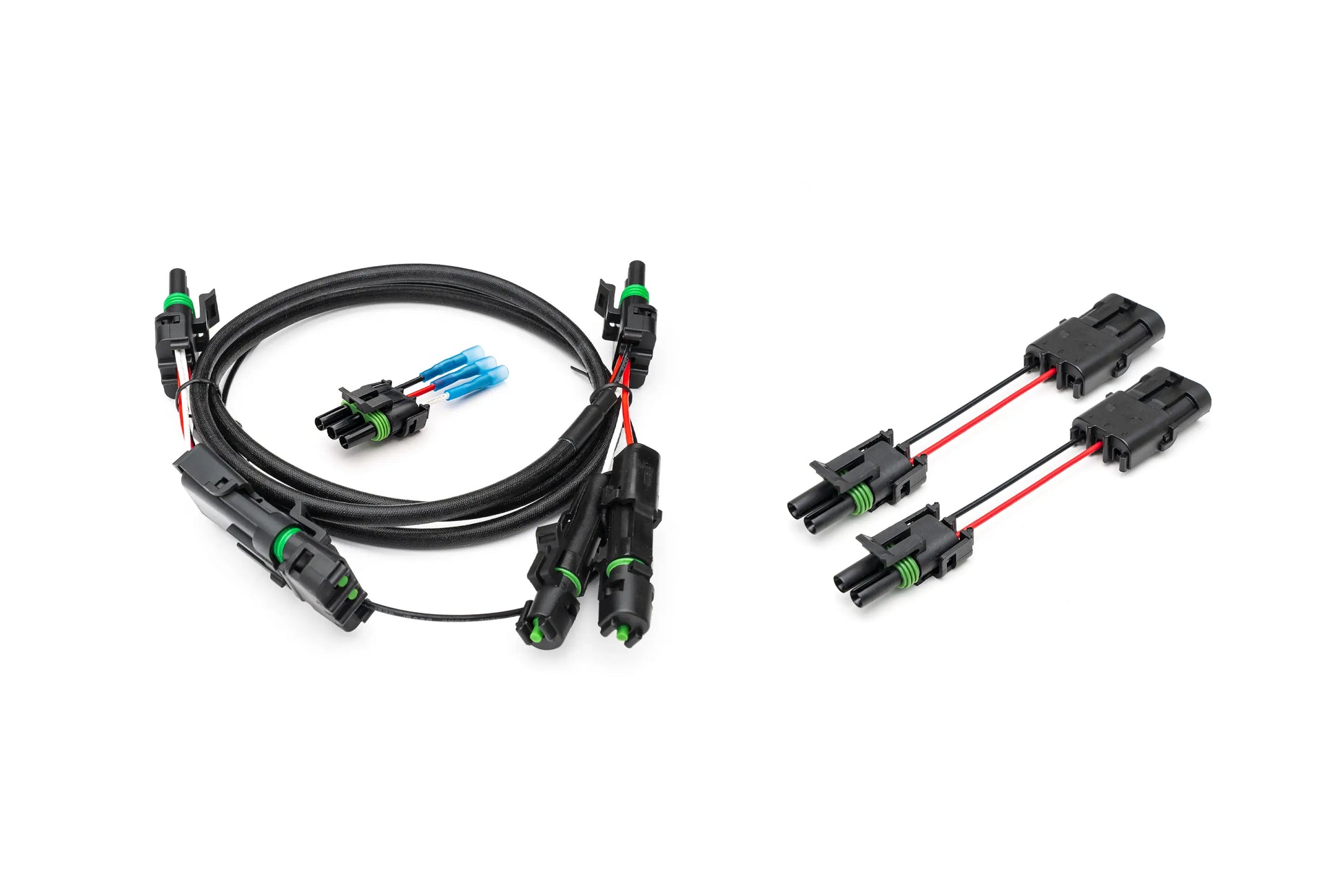

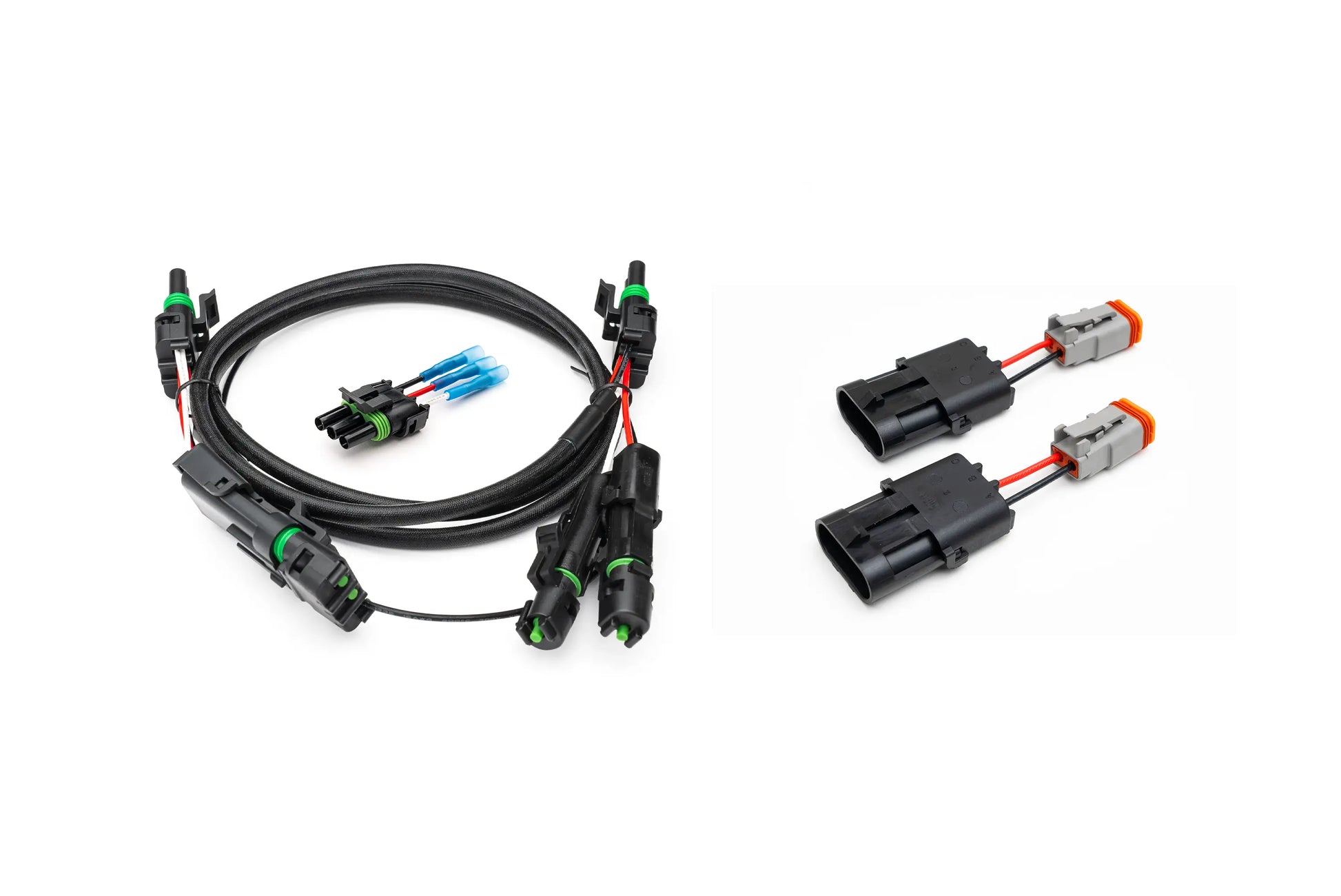

SPV Parts SHORT LENGTH REAR Harness w/ ADD ON CONNECTOR - SPV Harness System (Works with MANY vehicles, See Details)

Name: SPV Parts SHORT LENGTH REAR Harness w/ ADD ON CONNECTOR - SPV Harness System (Works with MANY vehicles, See Details)
Brand: Specialty Performance Parts
SKU: 11-01-012
Price: 31.49 USD
Availability: InStock

Adapter/Connector to lights Standard included add on connectors (for lights with bare wires) 2 way WP adapter (Baja S2) 2 way DT (Rigid SRM / KC Hilites) 4 way DT EXTENSION (Diode Dynamics SSC2 Backlight)

11-01-012

$31.49

$31.49 ~~$39.99~~

Fully secure checkout
Trusted by thousands
Rated and reviewed

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Up to 28% off

SHORT LENGTH REAR LIGHT HARNESS - Includes ADD On Connector

MAIN APPLICATION/DESCRIPTION-

Already cut to length, just plug in a pair of lights in the REAR of your vehicle (Or other areas). This harness will run from one rear light, to the other rear light on each side.

The harness includes INPUT ports on each side (in addition to being able to plug in a pair of lights)

One side has 2 ports to add one of our tail light adapters at any time for reverse triggers.

The other side includes a 3 pin input port with a ground ring.

This kit will come with one of our ADD ON connectors that will REPLACE the 3 port connector with ground ring. This will allow you to connect wires into it with the add on connector. Some examples of its use are for pass through wires or pig tails such as in the Ranger Raptor or Toyota Tacoma.

You can select a tail light adapter HERE to expand your harness for reverse trigger AND switches/pass through wires.

https://www.specialtyperformanceparts.com/products/custom-universal-harness-tail-light-connector-adapter-powers-reverse-lights-backlights-spv-harness-system-works-with-many-vehicles-see-details

MORE TAIL LIGHT ADAPTERS COMING SOON for more vehicles!

This is a direct component harness to connect a pair of rear lights to ANY vehicle with built in switches and pass through wires.

Harness System Description-

This harness is part of our UNIVERSAL harness system. Each harness can be used for virtually ANY vehicle and ANY lighting application with the use of our many adapters and modules. Each adapter or module will simply plug into the harness to fit virtually ANY light.

For example, if you have any light such as Rigid Radiance, Scene, 360, or any other make and model WITHOUT connectors on the bare wires with the lights. You will simply add on the included matching connectors in the included kit.

If you have lights WITH connectors on them, you just add the correct connector adaptor type. Some examples of connector adapters are- Rigid Pro Series lights or Single stage lights use DT connectors. Baja Designs (For the most part) use WP Connectors. If you have a 3 wire light (With the Amber/Multicolor background) you can use the included plug pack to either add to your lights 90% of the time, or your light will most likely already have the 3 way WP connectors on them, which will match to these harnesses.

These harnesses also can be interconnected to other adapters from the system. Including Tail Light or Marker Light Trigger adapters to trigger reverse lights, marker lights to backlit lighting, etc.

See other optional components to BUILD YOUR LIGHTING SYSTEM!!

IMPORTANT!!!

This Component is a stand alone harness that is all you will need in applications like the Ford F-150 Raptor, where you are connecting in to the vehicles BUILT IN RELAYS and FUSES. This harness is not FUSED and therefore, if you are connecting it direct to ANYTHING other than a fused circuit, you MUST connect our add on Relay/Fuse adaptor to protect your lights and vehicle from fire. We are NOT responsible for incorrectly installed equipment. If you have questions, please refer to the chart, instructions or reach out to us so we can guide you.

Component of the SPV Harness System-

PATENTED - US 11,699,537 B2

***Click Here for Basic Instructions***

***Click Here for Data & Use Sheet***
